Installation manual
53
15.2 Electrical liquid detergents' connection
Electrical installation must be carried out by an authorized personnel.
The A8 output relay card allows to connect from 1 to 16 electrovalves of liquid detergents.

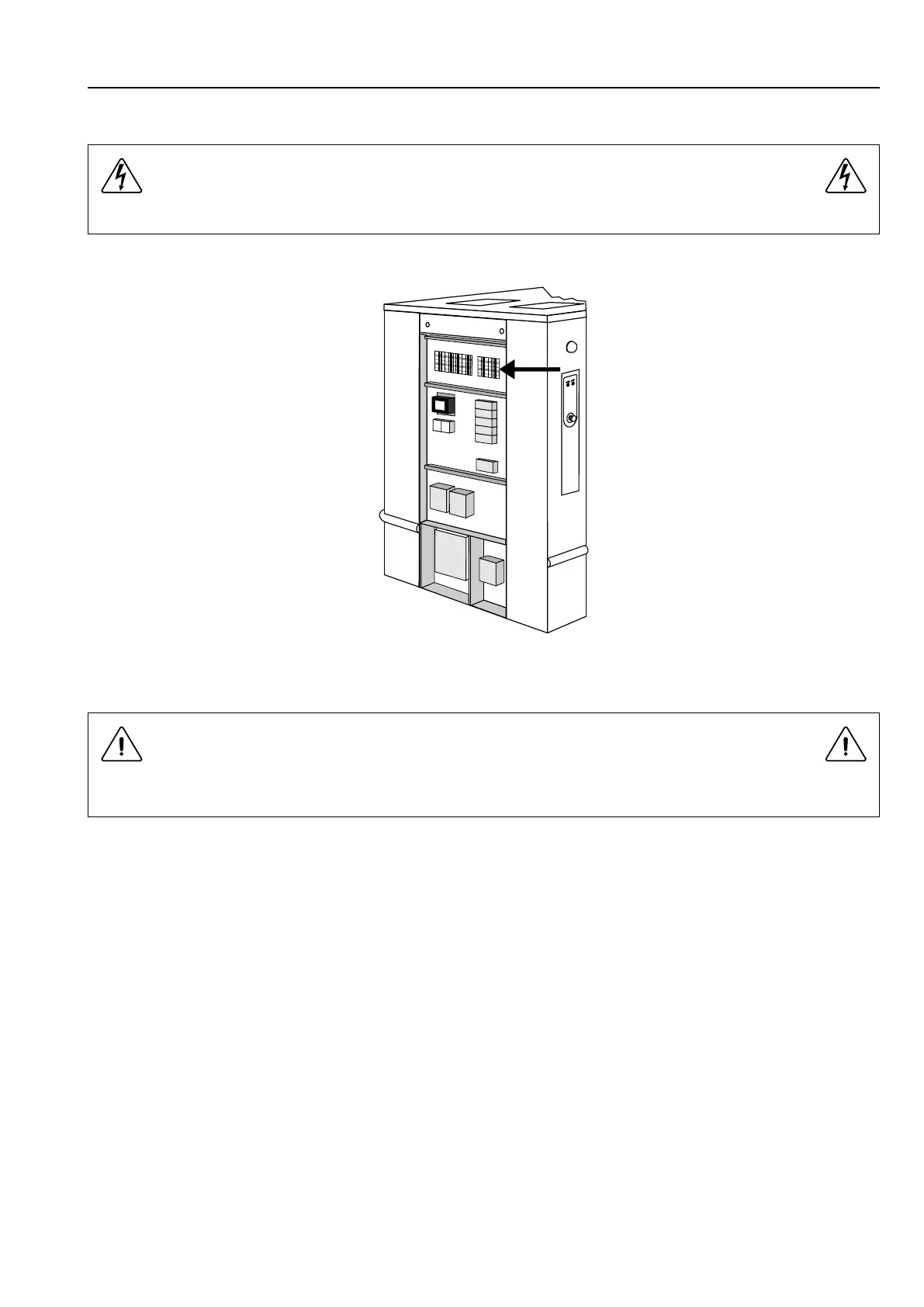

The card is situated on the up right side of the electric box.
Carry the connection cables by the partition crossing and the cable through of the machine.
To connect the wires on the J802 terminal block, introduce a screwdriver in the upper aperture to open the cable
clamp.
Caution
Be carefull, even machine power off, you can still have power on this board coming from detergent supplier.
Secure it also before intervention.
