Installation manual

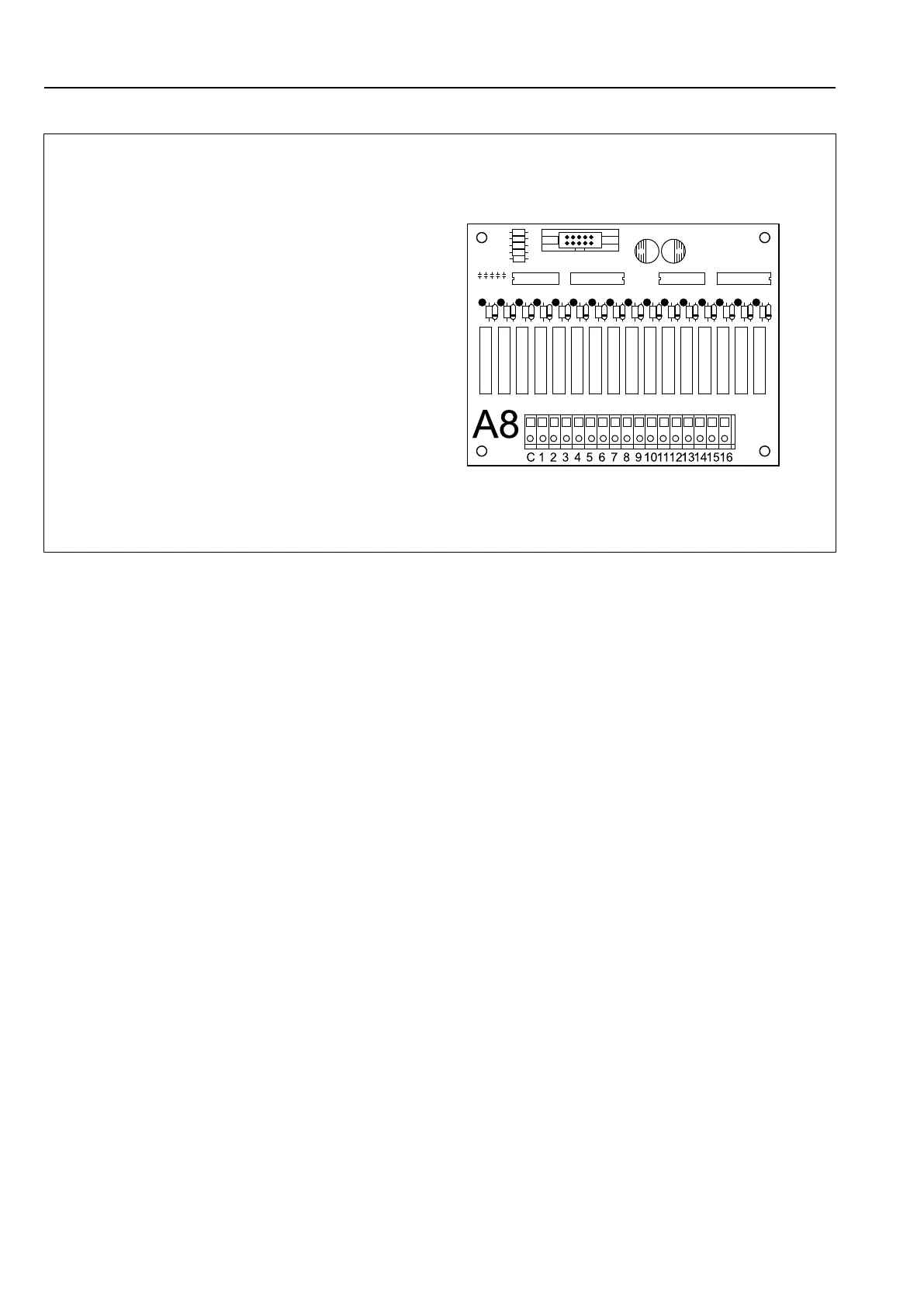

Connection on the A8 output relay card
C
Common of signals
1
Signal 1
2
Signal 2
3
Signal 3
4
Signal 4
5
Signal 5
6
Signal 6
7
Signal 7
8
Signal 8
9
Signal 9
10
Signal 10
11
Signal 11
12
Signal 12
13
Signal 13
14
Signal 14 (controlled by water level)
15
Signal 15 (controlled by water level)
16
Signal 16 (reserved)
Supply voltage : 250 V~ maximum
Maximum intensity : 6 A.
