Installation manual

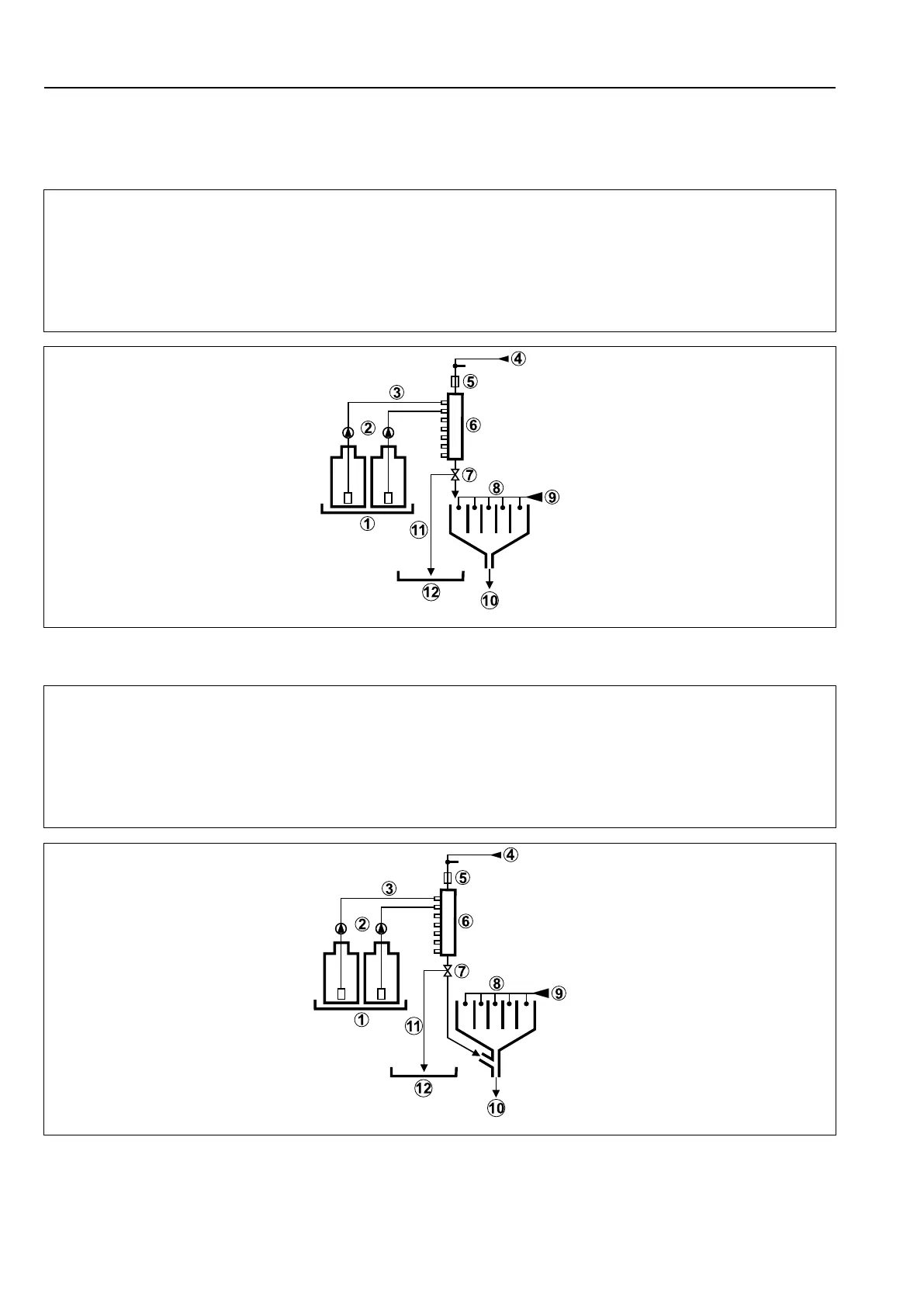

15.1 Connection scheme of liquid detergents
We advise you to use one of the two systems shown hereby to connect your liquid detergents.
Single inlet dose controller with a compulsory rinsing device.
1 Retention tank 7
3 way valve
2
Pump
8
Scoops + Rinsing
3
Liquid detergents
9 Water
4 Water 10 Washer extractor
5
Soap box rinsing electrovalve
11 Toward retention tank
6 Dose controller 12 Retention tank
d2033
Multi-inlet dose controller with a compulsory rinsing device.
1 Retention tank 7
3 way valve
2
Pump
8
Scoops + Rinsing
3
Liquid detergents
9 Water
4 Water 10 Washer extractor
5
Soap box rinsing electrovalve
11 Toward retention tank
6 Dose controller 12 Retention tank
d2032
