INSTALLATION
MANUAL
7. Installation

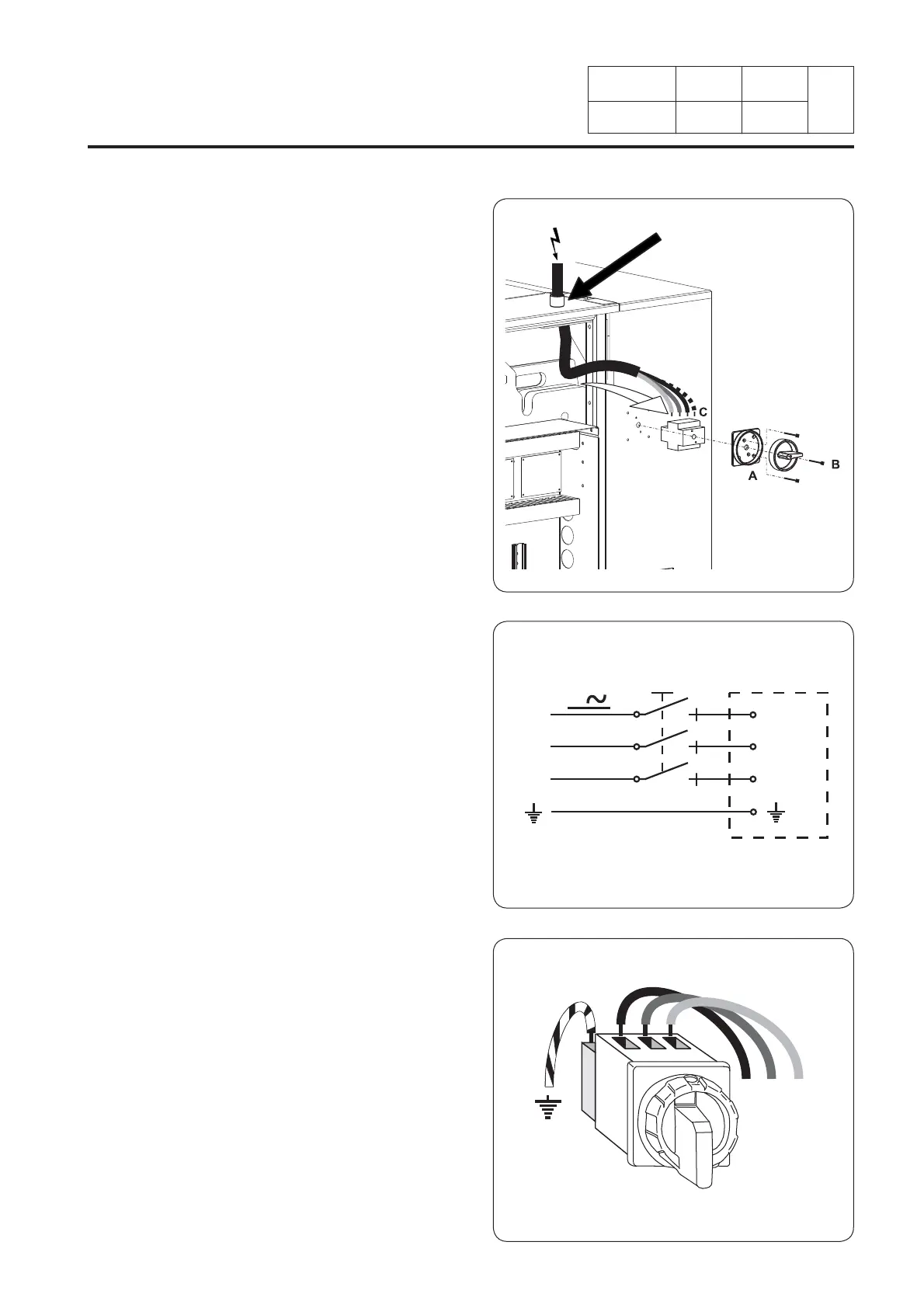

For each machine, install a fi xed multipole
circuit breaker (or fuses protector) in the
laundry main cabinet.
Connect the power supply cable on the
machine main switch.
Connect the 3 phases on the main switch
(see marks L1, L2, L3) and connect the
earth wire on the earth terminal (PE) of this
main switch.
(check operation, see chapter no. 8).
Stuffi ng box
Pass the power supply cable of the machine
trough the stuffi ng box on the top of the
machine.
Caution : the main switch must be removed
in order to have easy access to the
connection terminals.
Remove the outer sections (A) and the inner
section (C) by unscrewing the screws (B).
When the cables are attached, reassemble
the switch in reverse order.
