2413 17
7
DC OUTPUT
STATUS
MADE IN
FRANCE
AUTOFUSE 20A
24V
DC POWER SUPPLY
24V
+
+
-
-
LOAD SHARE CONTROLLED
elc
ON
ALE2412
12,5A (20 - 30V ; 15 -10 A)
PARALLEL MODE
SHARE BUS
20V
30V
EN 60950
AC INPUT
220V - 400V ; 1,5A
50 - 60 Hz
PE N(L2) L1
! !
D1518
+24Vdc 0V
S
R
400V-50Hz
Notice
Date Page
05201053
INSTALLATION
MANUAL
7. Installation

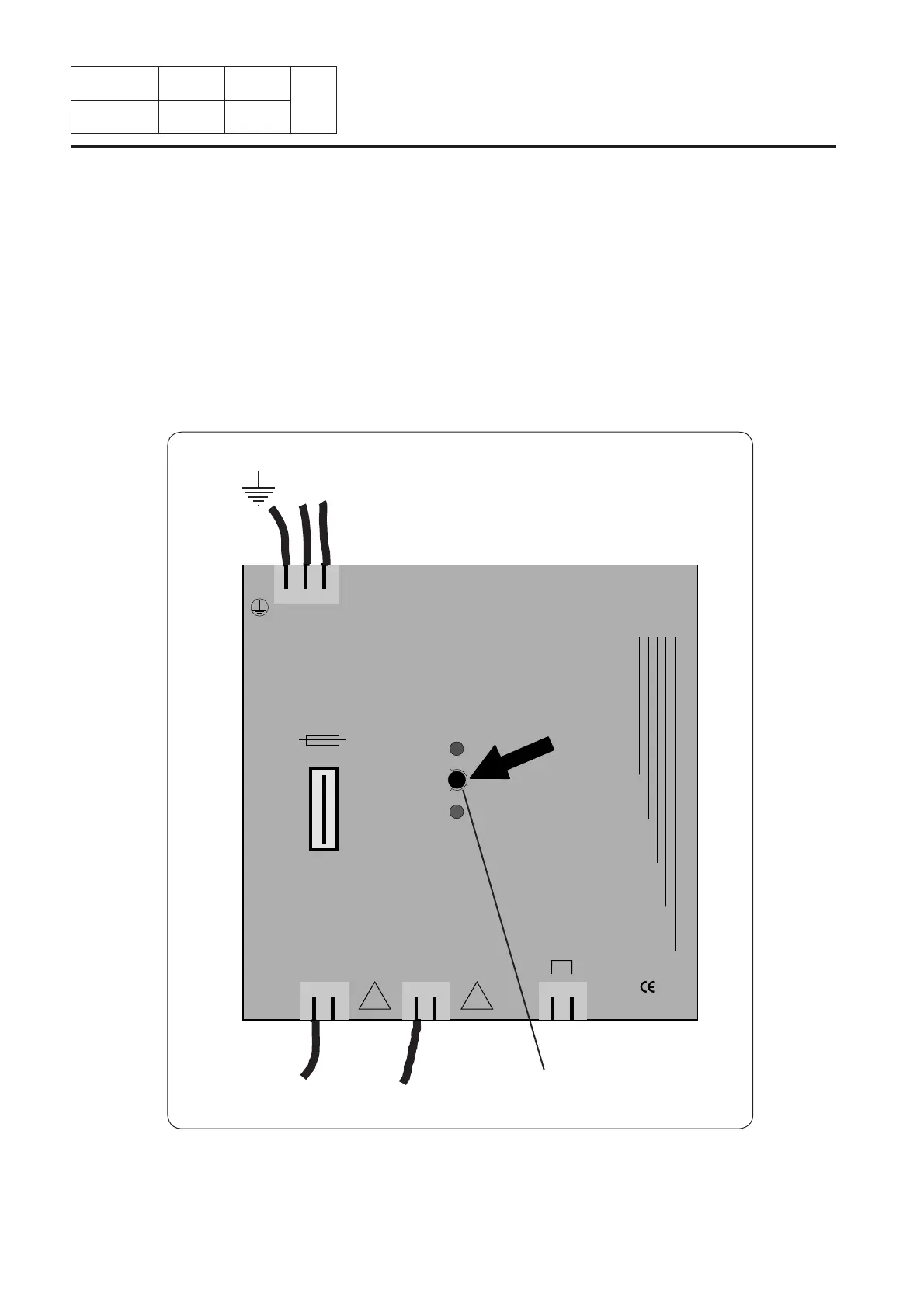

Connection diagrams for the control circuit power supply (T1)
The tension of the control circuit delivered by the power supply must be 24 volts dc. The supply
tension for your machine is normally of 400 volts between phases, this tension can however be
different. The potentiometer allows to adjust the tension.
Tension adjustment
