D0697A
0107 4
9
Notice
Date
Page
01201138
INSTRUCTION
HANDBOOK
9. Installation

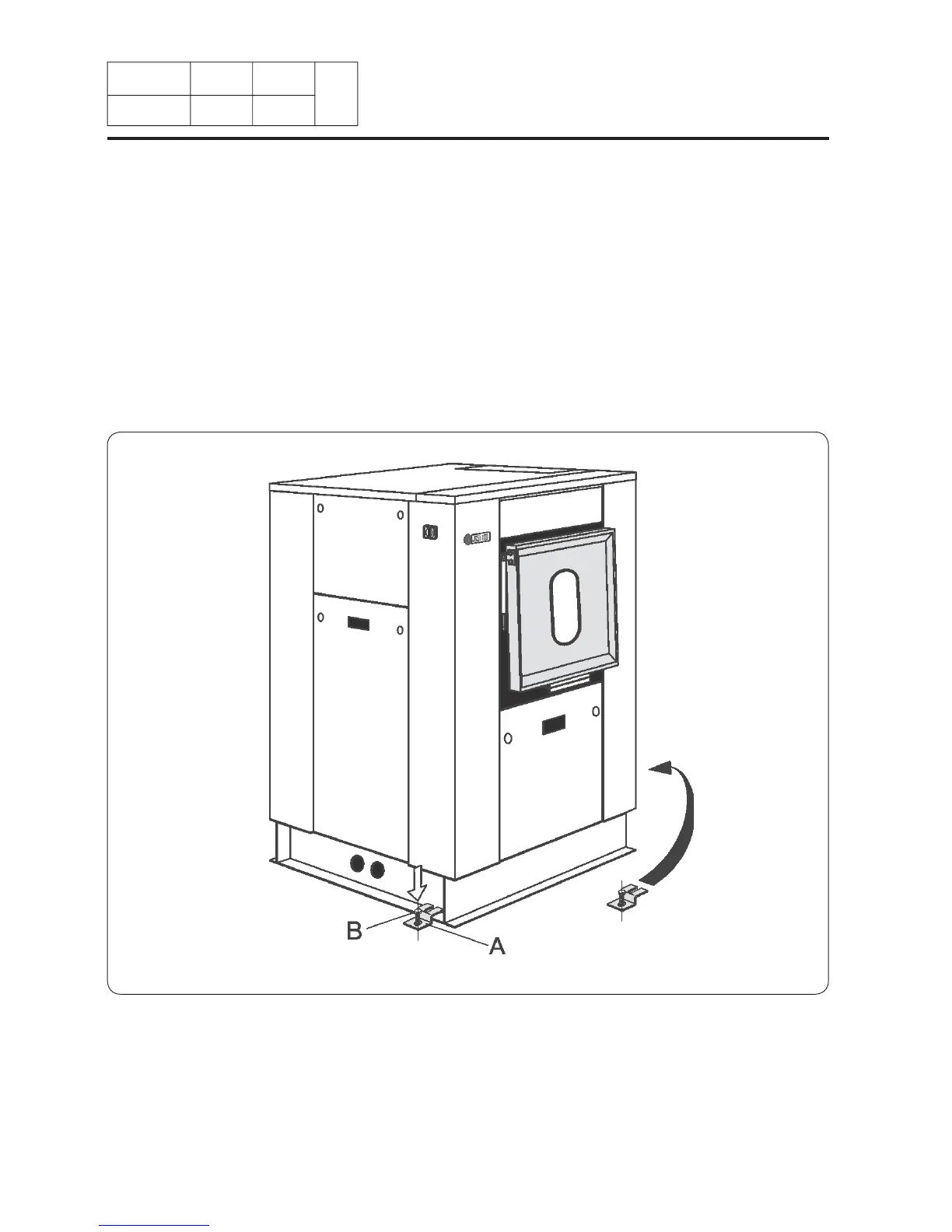

Instructions to fi t the safety fl anges
Position the safety fl anges (A) crosswise (one in the front and the other at the back of the sole).
Mark the place of the drilling hole for the fi xing pin (B) and drill the holes for fi xing of fl anges
(holes diam. 12 mm (1/2"), depth 60 mm (3")).
Put the pins in the fl anges, position the fl anges and screw.
