7
D0595
8
P2L2 L1L3 P1
1109 5
11
Notice
Date
Page
01201138
INSTRUCTION
HANDBOOK

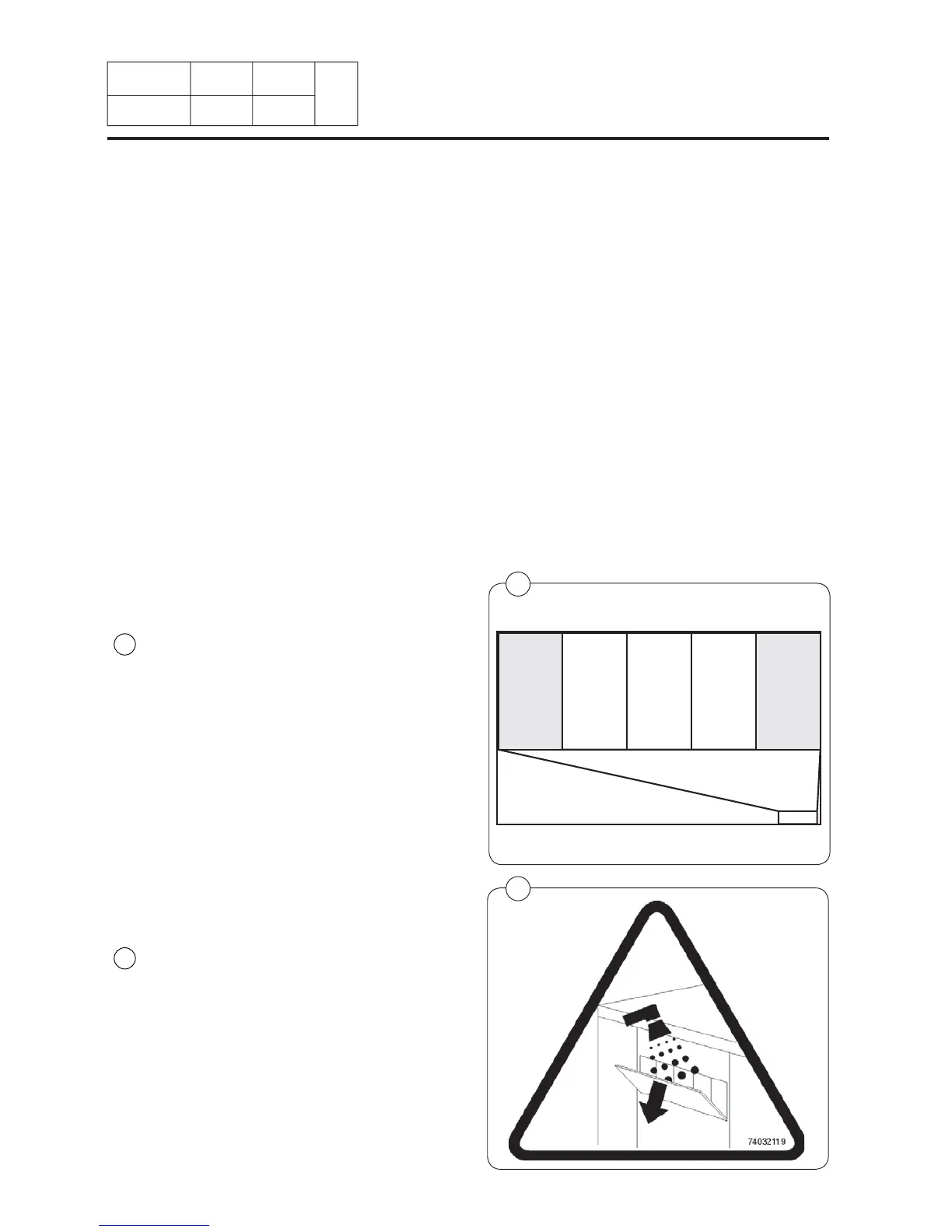

Dosage of the detergents
Pour the detergents in the containers ac-
cording to the program.
P1 : powder product (prewash)
P2 : powder product (wash)
L1 : liquid product (ex : chlorine)
L2 : liquid product (ex : neutralizer)
L3 : liquid product (ex: softener)
Rinsing of the soap box
Rinse the inside, every days with water, the
detergents container.
Detergent dispenser
The detergent dispenser has fi ve compartments. Each compartment is connected to a water
valve. The water supply to individual compartment is as follows :
Compartment Valve Water
P1 Y9 warm
P2 Y13 warm
L1 Y11 cold
L2 Y10 cold
L3 Y12 cold
There is also a separate cleaning (water fl ushing) function for all compartments in the detergent
dispenser, connected to valve Y27, cold water.
If the water pressure is low (< 1 bar) the cleaning effect may be less satisfactory. For this rea-
son, where the pressure is low the water fl ushing times should be increased for best results.
11. Machine
operation
Fig.
7
Fig.
8
