D0577A
0107 9
9
Notice
Date
Page
01201138
INSTRUCTION
HANDBOOK
Waters connections
Washer extractors are assembled in standard execution with two waters inlet.
One hot water and one hard water. On option, a third water inlet (soft) is possible.

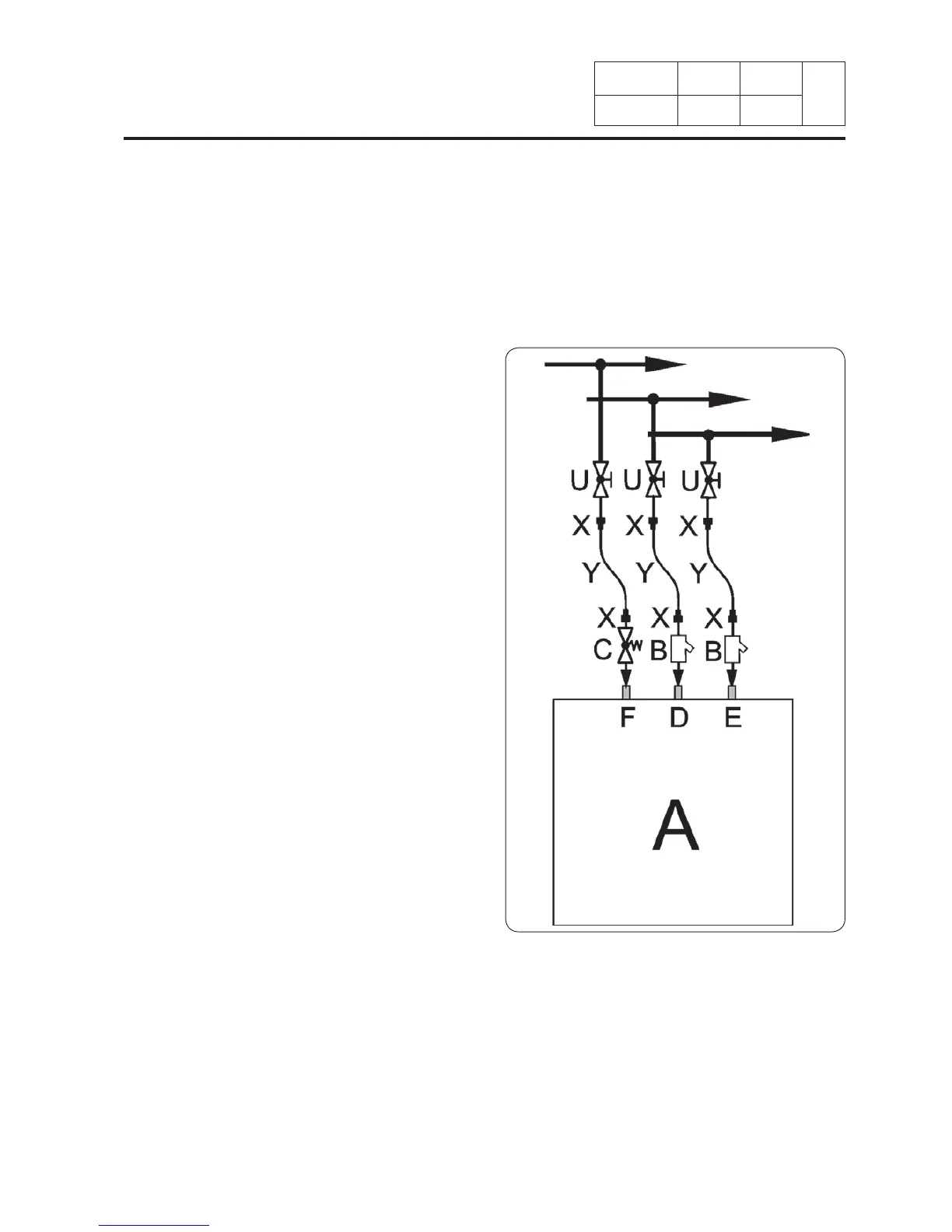

The hereunder example sketch shows the connection of the machine to the different inlets.
U Manual stop valve DN 20 (¾" BSP)
(provided by customer)
X Nipple (male) ¾" (provided)
Y Flexible pipe DN 20 (¾" BSP) (provid-
ed)
D Hot water inlet DN 20 (¾" BSP)
E Hard water inlet DN 20 (¾" BSP)
F Cold soft water inlet (option) DN 20 (¾"
BSP)
C Steam electrovalve DN20 (¾" BSP)
(provided)
B Water fi lter (provided)
A Washer-extractor
Water supply pressure, 50 kPa (7.25 psi)
mini.
Water supply pressure , 300 kPa (43.5 psi)
maxi.
9. Installation
