D0582B
0107 8
9
Notice
Date
Page
01201138
INSTRUCTION
HANDBOOK
9. Installation

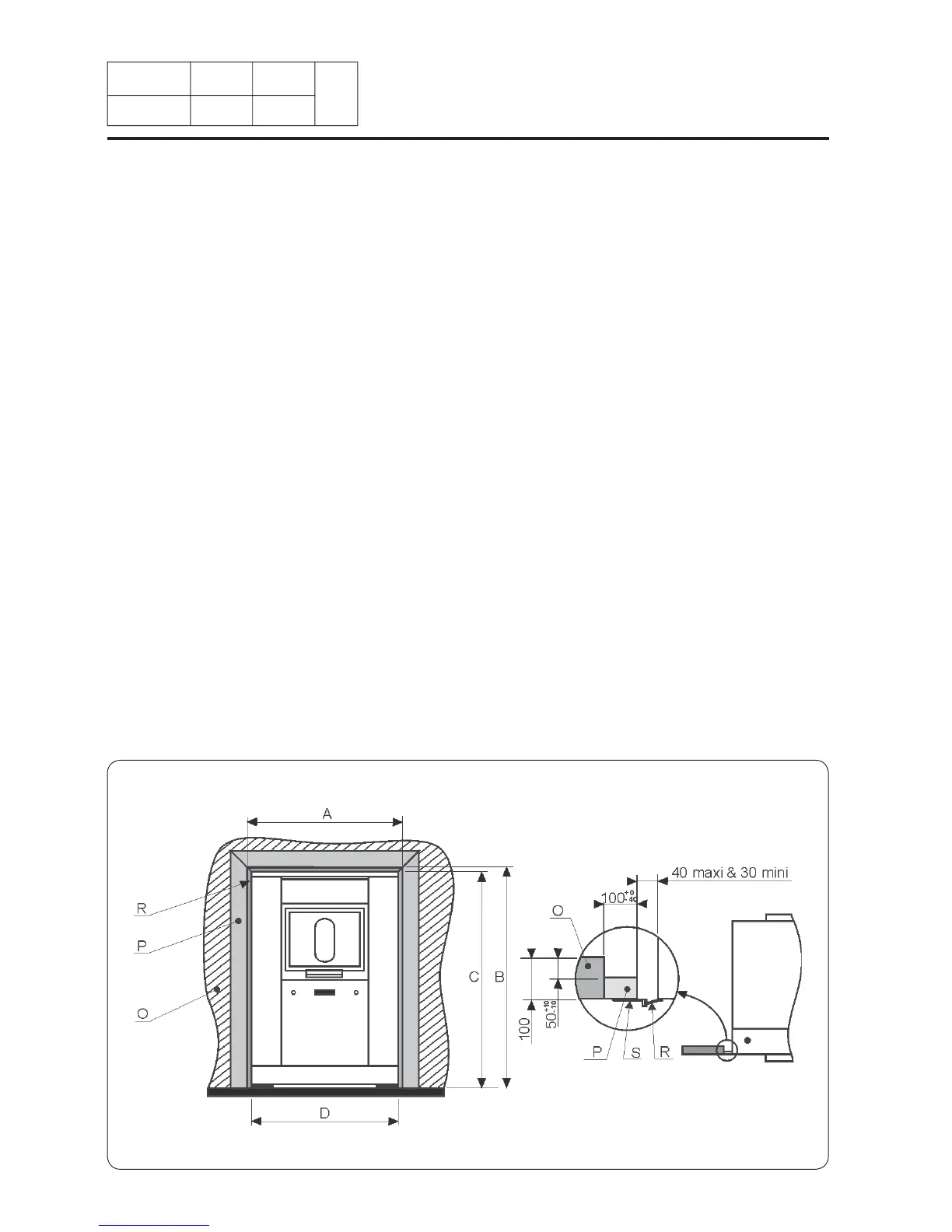

Instructions for installation of the washer with barrier partition
The barrier partition (O) (provided by customer) should be assembled before the installation of
the machine.
Centre and align the washer-extractor with the frame (P) 60 x 100 mm maxi (provided by cus-
tomer).
Place the rubber seal (R) inside the aluminium extruded section (S).
Srew the aluminium extruded section (S) on the frame or on the optional plates (P).
Machine type 250 350 500 650
Size A 1125/44.29 1365/53.74 1645/64.76 2080/81.89
Size B 1650/64.96 1650/64.96 1650/64.96 1650/64.96
Size C 1610/63.38 1610/63.38 1610/63.38 1610/63.38
Size D 1045/41.14 1285/50.39 1565/61.61 2000/78.74
