GSTARTING
G1 Preliminary checks, adjustments and
operational tests
G1.1 Electrical and plumbing checks
Before starting the machine:
• check correct connection of the electrical wires that
feed the machine;
• make sure the power supply voltage and frequency
match the data given in Table 1;
• check correct connection of the water supply and
drain pipes (par. E6 “Plumbing connections”);
• make sure all the guards, safety devices and emer-
gency switches are in place and efficient.

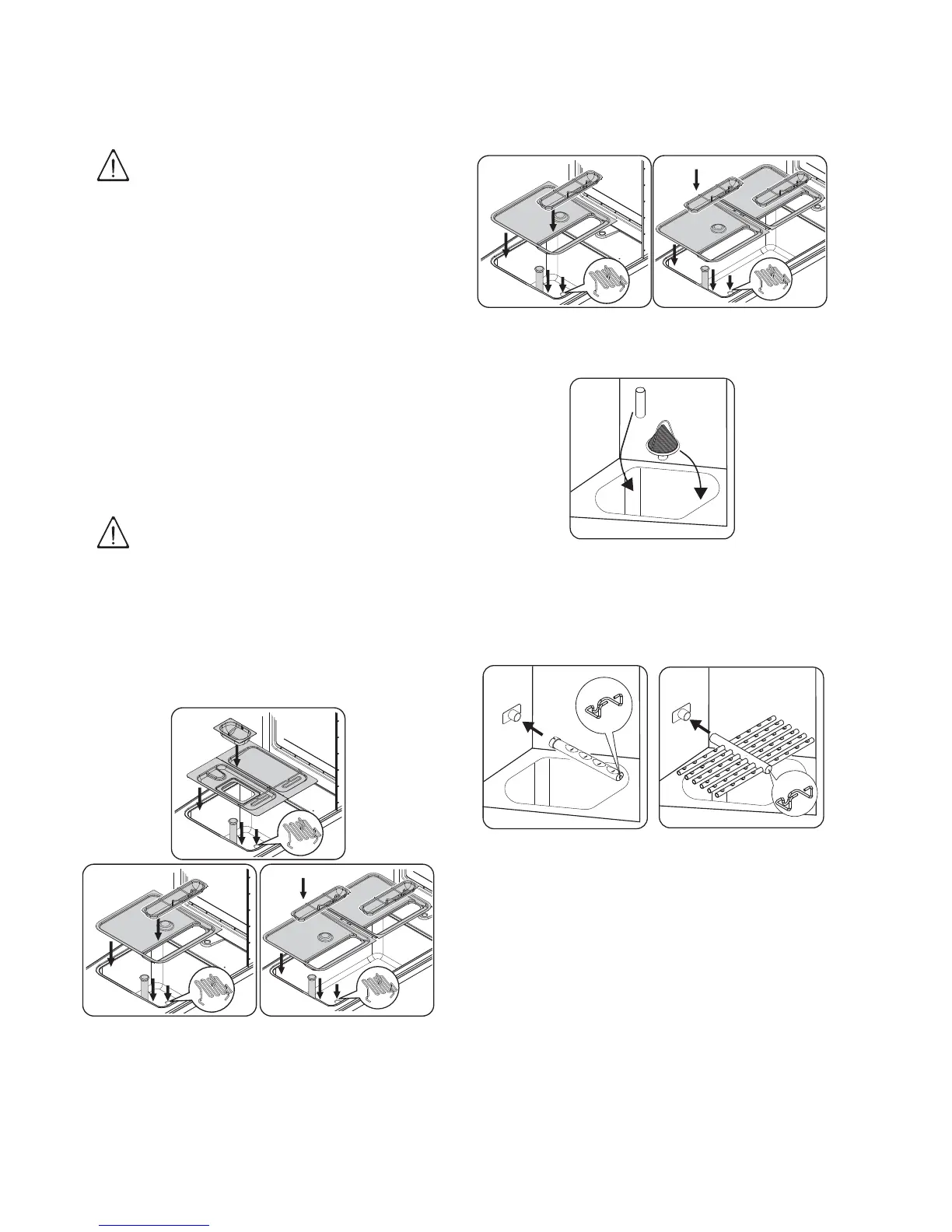

G1.2 Check the positioning of tank components
G1.2.1 Check the fitting of filters and overflows
Make sure the tank drain grid “1”, overflow “2”, the flat
filters “3” and box strainer “4” (Figure 19) are fitted in
the prewash module, if present in the machine.
Figure 19 Prewash module tank filters
Make sure the tank drain grid “1”,overflow “2”, flat fil-
ter/s “3” and box strainer/s “4” (Figure 20) are fitted in
the wash module.
Figure 20 Wash module tank filters
Make sure the overflow “1” and the flat filter “2”
are fitted in the rinse module (Figure 21).
Figure 21 Rinse module tank filters
G1.2.2 Check the fitting of arms and curtains
Make sure the upper and lower prewash (Figure 22),
wash (Figure 23) and rinse (Figure 24) arms are cor-
rectly fitted.
Also make sure the prewash and wash arm couplings
are correctly locked and that the rinse arms are
secured.
IMPORTANT!
These operations must only be carried
out by specialized technicians pro-
vided with adequate personal protec-
tion equipment (e.g. safety footwear,
gloves, glasses, etc.), tools and suita-
ble ancillary equipment.
IMPORTANT!
The following operations must be car-
ried out by operators provided with
suitable personal protection equipment
(e.g. protective gloves, etc.) with the
machine switched off and cold.
