far left digit should be blinking and there should be a bar in the upper left corner of the display. All the

green display mode LEDs should be off. If this is not the case, go back to step A. The 1st Full Fuel

Level is being displayed and you are now ready to program the Power-up Programmable Setting that

were described previously.

a) Select a Digit - The "F. to DES" and "F. RES" buttons move the blinking digit to the right or to the

left.

Advance a Digits Count - Moving the Mode Select Switch to the right will increase the blinking

digits count by one or to the left to decrease a blinking digits count by one. After the blinking digit

reaches 9 it will reset to 0.

c) Change Functions - The display will toggle between the Power-up Programmable Settings de-

scribed above by pushing the right "F. RES" button with the right digit blinking (advances to the

next function) or by pushing the left "F. to DES" button with the left digit blinking (returns to the

last function). For each function the display will appear as described previously.

d) To Exit - To exit the Power-up Programming Mode, momentarily push both the "F. to DES" and

"F. RES" buttons at the same time. The programmed values will be stored in memory and no

internal batteries or external power are required to store this information for life.

1. Setting the display for “Gal”, "br Gal", “Lbs” or "Ltr" in the "Flow" Display Mode:

In the "FLOW" Display Mode the FP-5L may be set to display Fuel Flow, Fuel Remaining and Fuel Used in

Gallons, British (Imperial) Gallons, Pounds or Liters.

To program the display, perform the following steps:

A. Select the “FLOW” Display Mode.

B. Momentarily push both the "F. to DES" and "F. RES" buttons.

Either “Gal", "br Gal", "Lbs" or “Ltr” will be shown in the display.

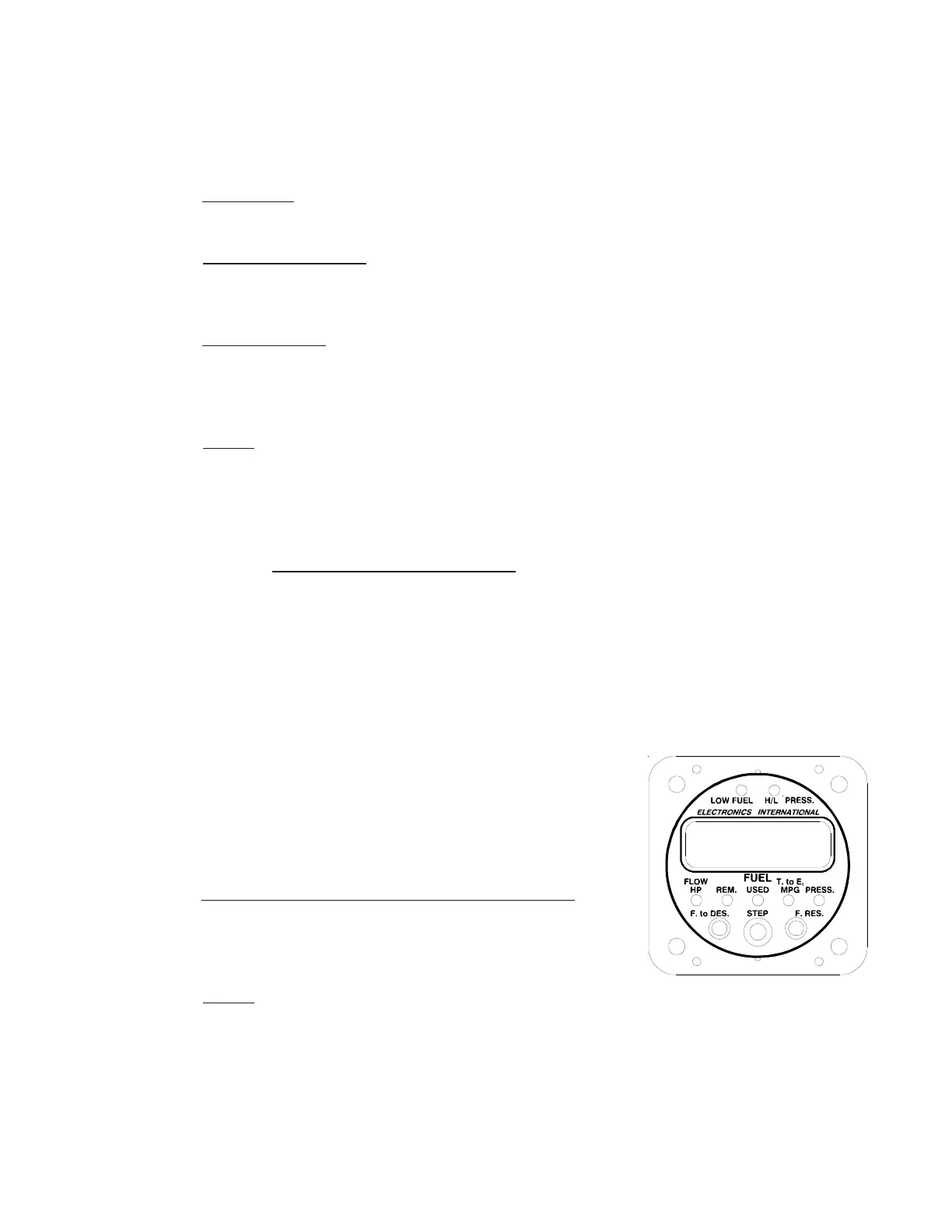

You are ready to program the FP-5L to display in Gallons, British

(Imperial) Gallons, Pounds or Liters.

C. Set the Display using the following procedure:

a) To change the display to "Gal", "br Gal", "Lbs" or "Ltr" -

Moving the Mode Select Switch to the left while pushing the

left "F. to DES" button will alternate the display between

"Gal", "br Gal", "Lbs" and "Ltr".

b) To Exit - To exit the Pilot Programming Settings for the

"FLOW" Display Mode, momentarily push both the "F. to DES" and "F. RES" buttons at the same

time. The programmed values will be stored in memory and internal batteries or external power

are not required to store this information for life.
