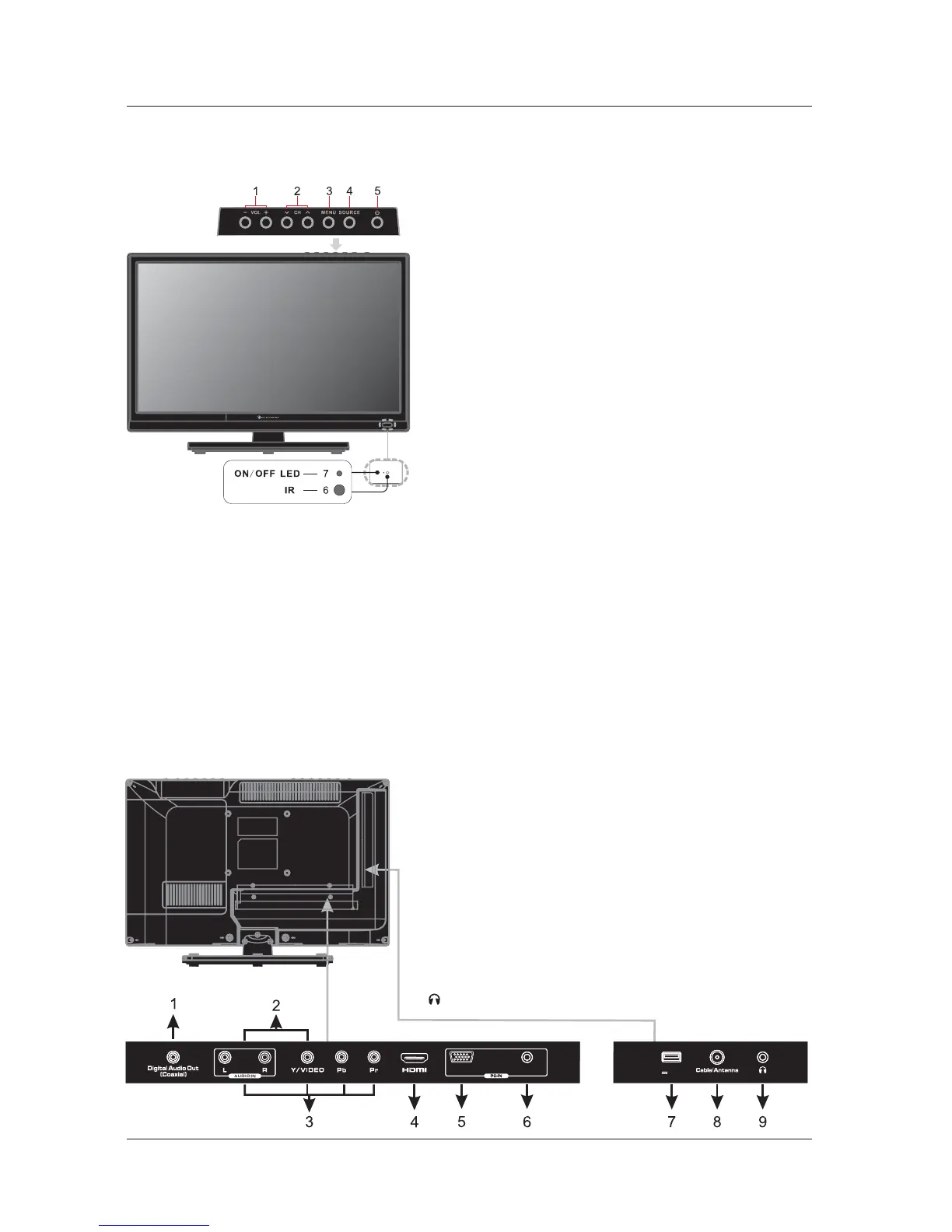

Front View
5. FRONT BACK CONNECTIONS OF TV/
Back View and Control Connections
1. Press VOL+ or VOL- to increase or decrease
the volume.
2. Press CH or CH to scan through channels.
3. Press MENU to bring up the main menu on
the screen.
4. Press to select the input source.
POWER the TV on or off.
6. REMOTE SENSOR: Infrared sensor for the
remote control.
7. POWER INDICATOR: red in standby mode
blue when your TV is turned on.
“”“”
“”“”
“”
“”
.
SOURCE
5. Press button to turn“”
Shows
Shows
FRONT BACK CONNECTIONS OF TV/
7
2. VIDEO AUDIO L R : Connect the Video Audio output/(/) /
.jack of DVD or VCR
3. YPbPr AUDIO L R : Connect the YPbPr Audio output jack/(/) /
of DVD or VCR.
8. Cable/Antenna: RF input that connects to your cable or
VHF/UHF antenna.
5 VGA PC : Connects to a personal computer's video.
()
output connector.
6. AUDIO :
()
PC Connects to a personal computer's audio
output connector.
1. Digital Audio Out (Coaxial): Connects to the coaxial audio input
of your digital stereo equipment.
<
>
4. HDMI: HDMI (High-Definition Multimedia Interface)
Provides an uncompressed, all-digital audio/video
Interface between this TV and any HDMI-equipped
A/V equipment. HDMI supports enhanced, or high-
definition video, plus digital audio.
7. Connect to the external drive, USB only mp3
and jpg.
USB support:
9. : Connect to the
.headphone
PC AUDIO-
VGA
USB
5V 500mA
