h) RGB LED Module
This module includes an LED that can display a number of different colors. The color and
brightness can be programmed and are controlled by the greyscale value of red, green
and blue.

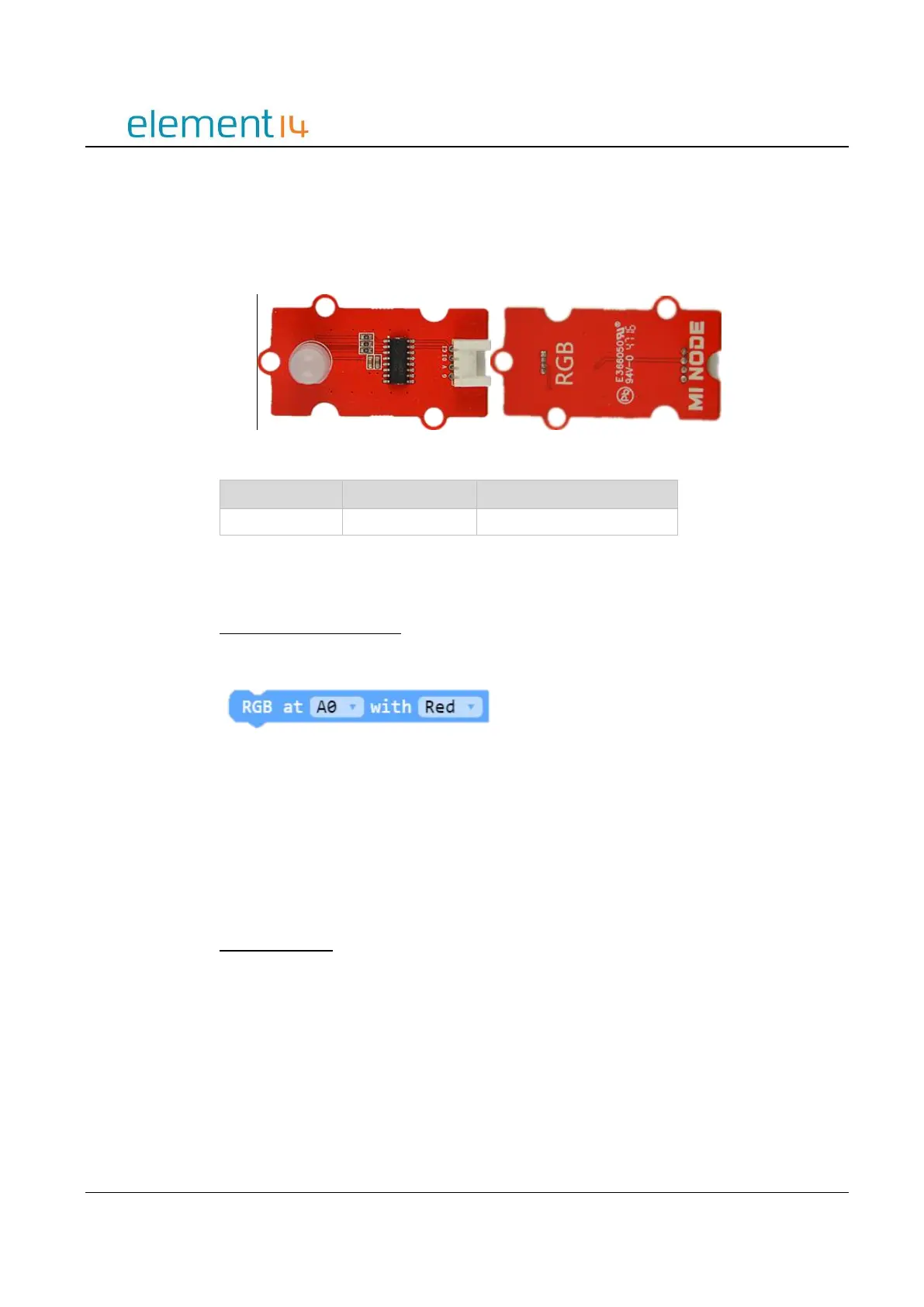

Image 3.4h – RGB LED Module
Module
Connect Type
Available Connectors
RGB LED
Digital IO
D12, D13, D14, D15
Block API
Choose a Pre-Coded Color
The color the RGB LED displays can be selected.
Function
RGBChooseColor(connName: ConnName, color: MiNodeColor): void;
Parameters
‘ConnName’ is the analog connector's name.
‘Color’ is your choice of one color from the following pre-coded mi:node colors:
Red, Green, Blue, Yellow, Pink, Cyan or White.
Select Any Color
To change the color of the RGB, adjust the three greyscale values.
