SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com

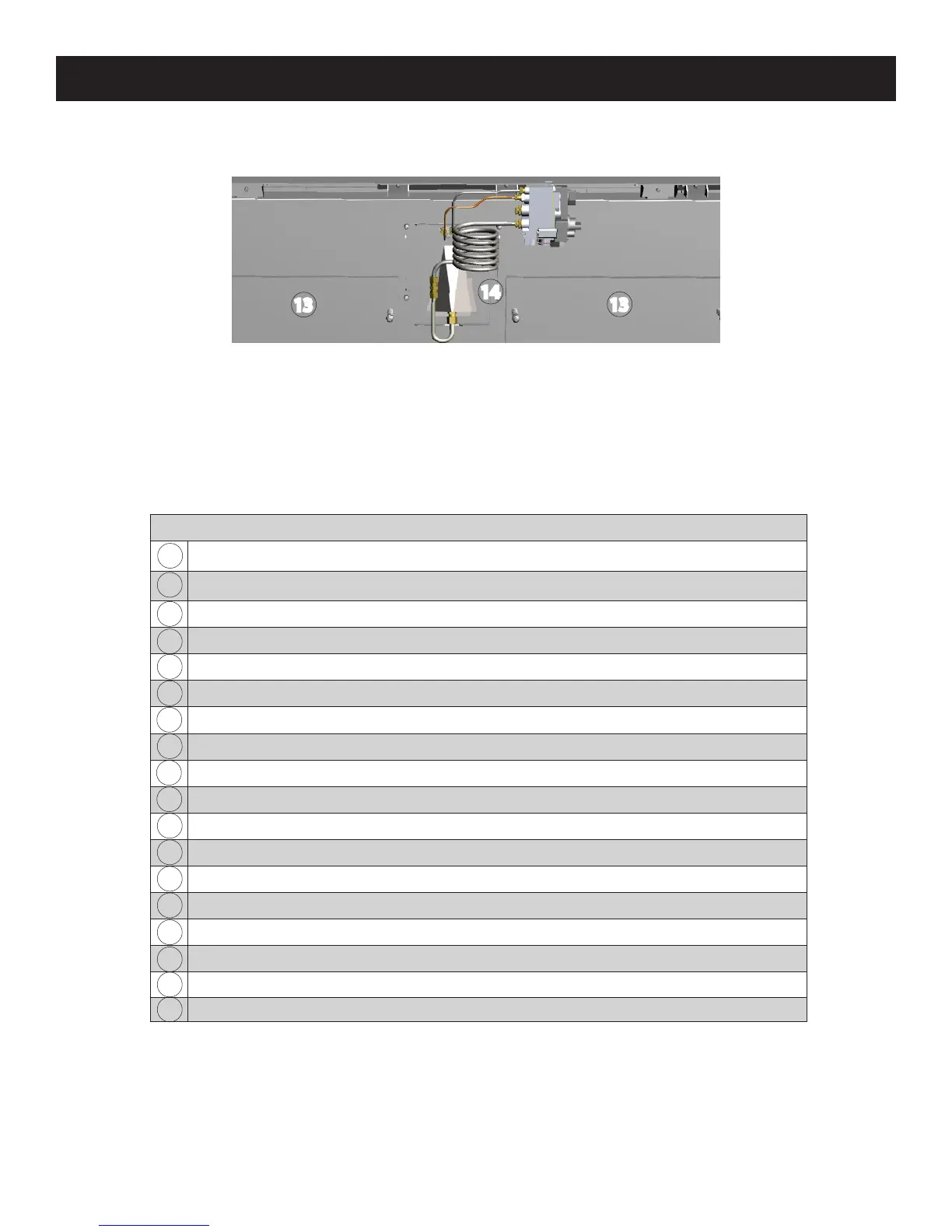

Fireplace from below.
13
14
13
Table of Fireplace Parts
Outer Frame Face- surrounds the glass panel(s) and limits the non-combustible wall board
Exterior Glass Panel
Support Feet - four adjustable feet allow the replace to be levelled
Hearth Panel - supports various Fire Media
Primary Burner - produces the front ame
Secondary Burner - produces the rear ame; may be controlled separately
Pilot Burner - the part of the safety circuit which lights the Main Burner
2
nd
Thermocouple - the part of the safety circuit which monitors the Main Burner
Finish Trim - hides the Glass Clamps
Room Air Inlet (hidden)
Glass Clamp - holds the Glass Panel in place (6 ea. - Sky, 12 ea. - Sky T)
Vent Collar - accepts the 5” x 8” venting adapter (included)
Relief Door - part of the safety system. Do NOT block the operation.
Pilot Assembly
Side Trim - hides the Glass Clamps (2 ea. - Sky, 4 ea. - Sky T)
NO MATERIAL zone
Fireplace Limit
Flange
