Element4 Sky - Vertical Vent Terminations

150 min
V
150 min
Distance "V" 1m - 11m (min - max)
24
VENTING
Element4 Gas Fireplaces EuropeanHome.com

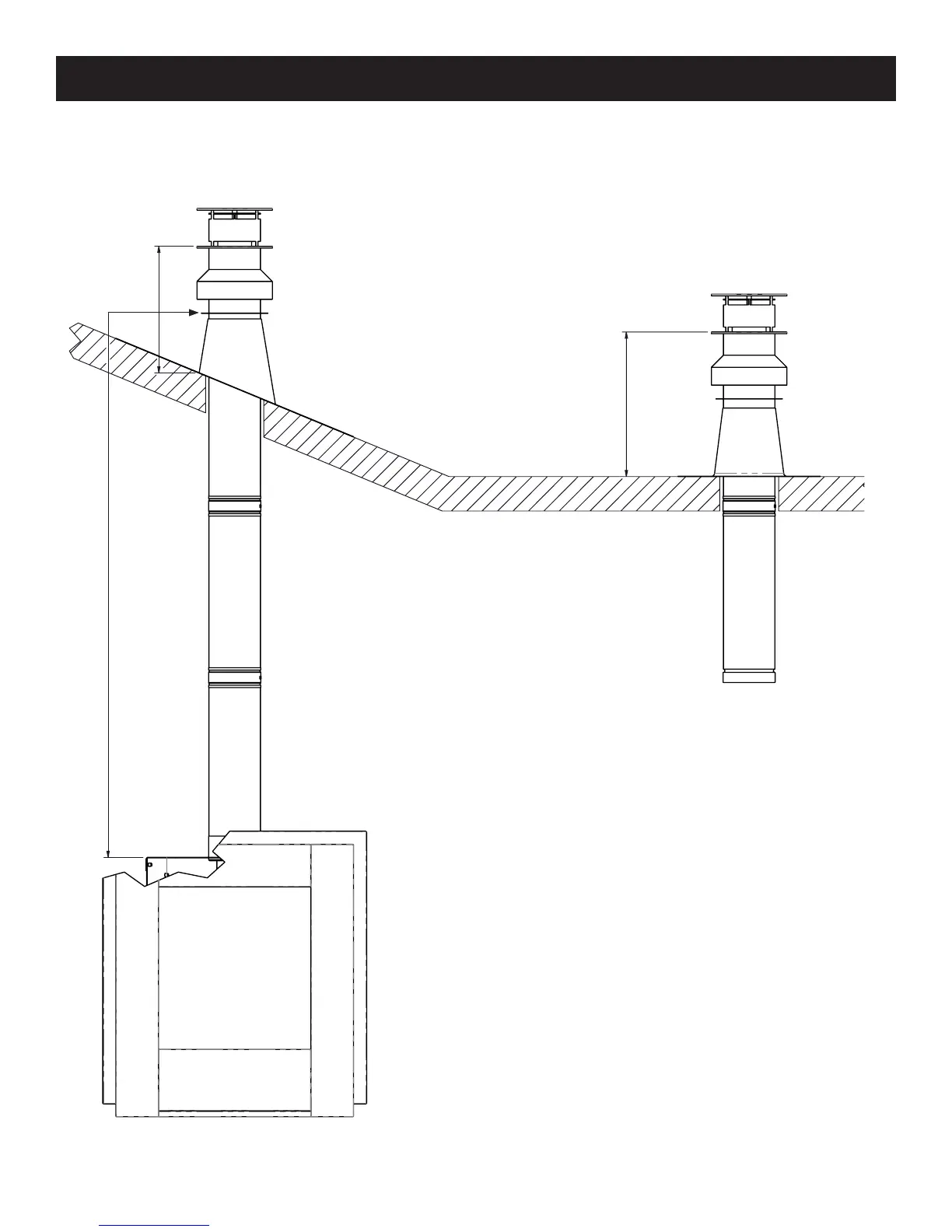

VERTICAL TERMINATIONS WITH NO ELBOWS
When installing vertical venting with no elbows, dimension “V” must be at
least 3’3”/1.0 m minimum and no more than 36’/11.0 m maximum.
A minimum distance of 12”/304 mm between the roof and the lowest
discharge opening in the termination must be maintained.
Power vent systems are available for congurations beyond these limits.
Vertical Terminations with NO Elbows
12”/304 mm
minimum
12”/304 mm
minimum
VERTICAL
Note! Congurations with vertical terminations may need a restrictor. See the
INSTALLING A RESTRICTOR section.
