VENTING

Element4 Gas Fireplaces EuropeanHome.com

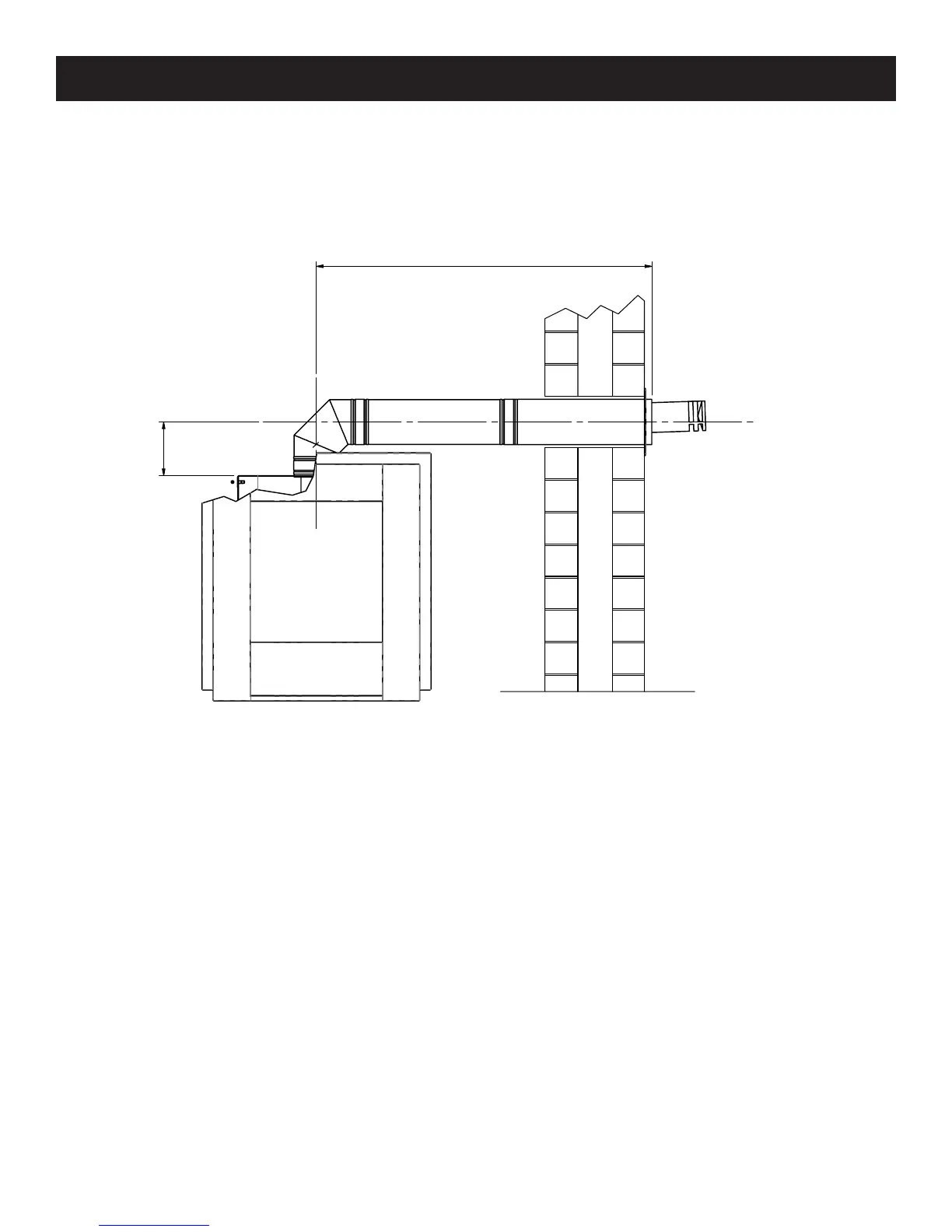

Distance “H” = 0.5-5m (min - max)

Distance “V” = 0.5-3m (min - max)

Note - for E4-10 & 11 Elbow can go

on to fire, thus “V” min = 200mm

Note2 - For E4-5, use a 50mm flue

Restrictor

Dimension “H” (run) can vary between 19”/500 mm minimum to 16’4”/5.0 m maximum depending on Dimension “V”. Refer to the

Horizontal Termination Graph, below.

Dimension “V” (rise) can vary between 19”/500 mm minimum to 11’5”/3.5 m maximum depending on Dimension “H”. Refer to the

Horizontal Termination Graph, below.

Power vent systems are available for congurations beyond these limits

HORIZONTAL TERMINATIONS

HORIZONTAL

Note! Congurations with vertical terminations may need a restrictor. See the INSTALLING A RESTRICTOR section.
