Element4 Sky - Model-Specific Clearances

14
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
Plan View - Sky
11”
280 mm
11”
280 mm
11”
280 mm
Side Elevation View - Sky
11”
280 mm
26”
660 mm
Front Elevation View - Sky
11”
280 mm
11”
280 mm
26”
660 mm
SKY
SKY

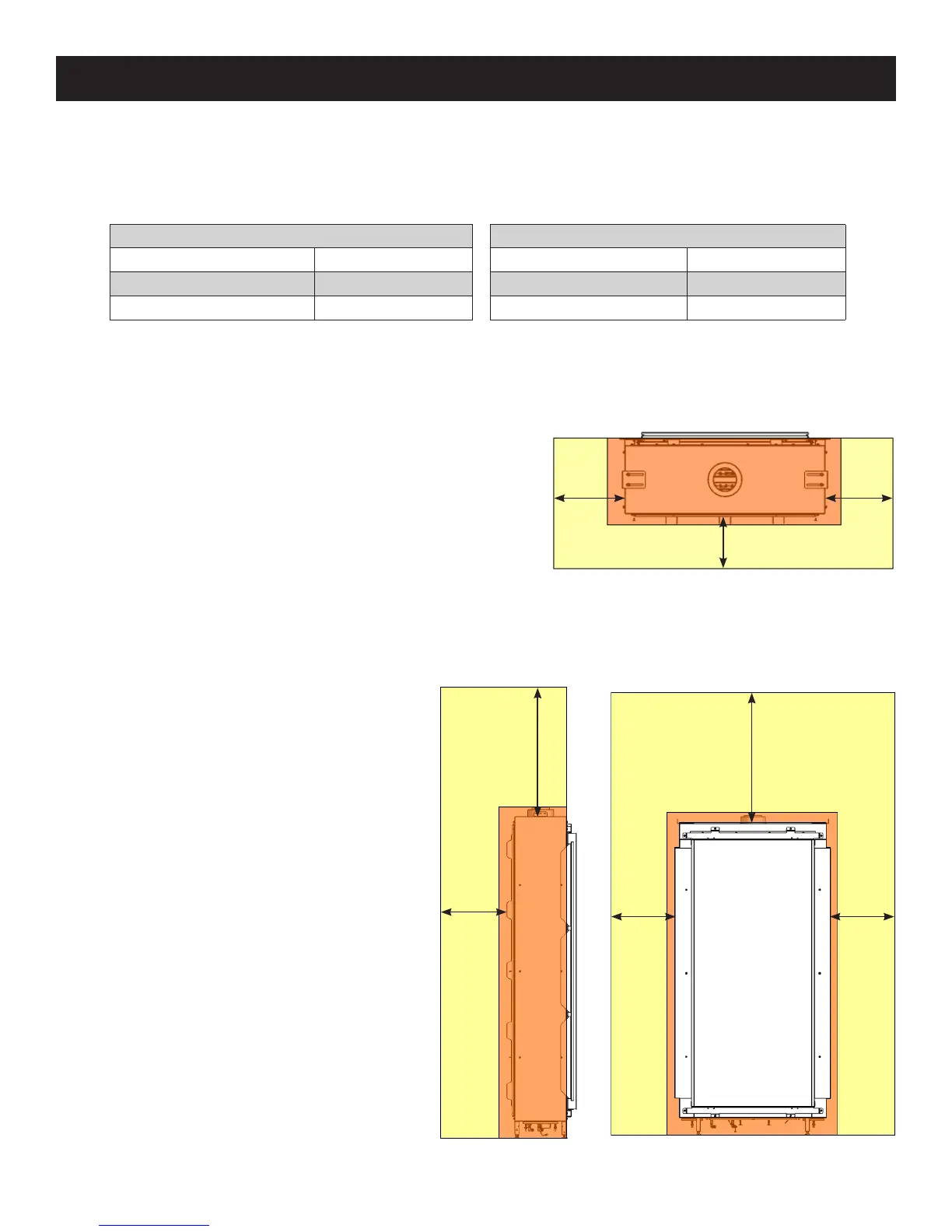

Shown here in yellow are the clearances to combustible
material which must be maintained.
No material of any kind is allowed between the
bottom of the support feet and the bottom of the
rebox, shown here in red.
No material of any kind is allowed within 2”/50 mm
from the top of the replace, shown here in red.
No material of any kind is allowed within 2”/50 mm
from the metal sides the replace, shown here in red.
Facing material should be installed against the outer
frame of the replace, with an ⁄”/3 mm vertical
clearance to allow for heat expansion.
*drawings not to scale
Note! Please view this page in COLOR for a more visual representation.
Please refer to the “Reduced Clearance to Existing Combustible Wall” section for use of combustibles inside of the above clearances.
Clearances to Combustibles
Sides (Non-Glass Sides ONLY) 11”
Top 26”
Bottom 4”
Clearances to Non-Combustibles
Sides (Non-Glass Sides ONLY) 2”
Top 2”
Bottom 4”
