CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
The total area of the convection air outlet(s) depends on the replace model. The location of the outlet(s) must allow for the free
movement of air and must not allow excessive convection air to build up within the chase.
The top of the outlet(s) must be at least 1”/25 mm down from the room ceiling and we recommend no more than 3”/76 mm down.
The top of the outlet(s) must be no more than 1”/25 mm down from the chase ceiling.
The minimum distance from the bottom of the appliance to the room ceiling is 72”/1830 mm.

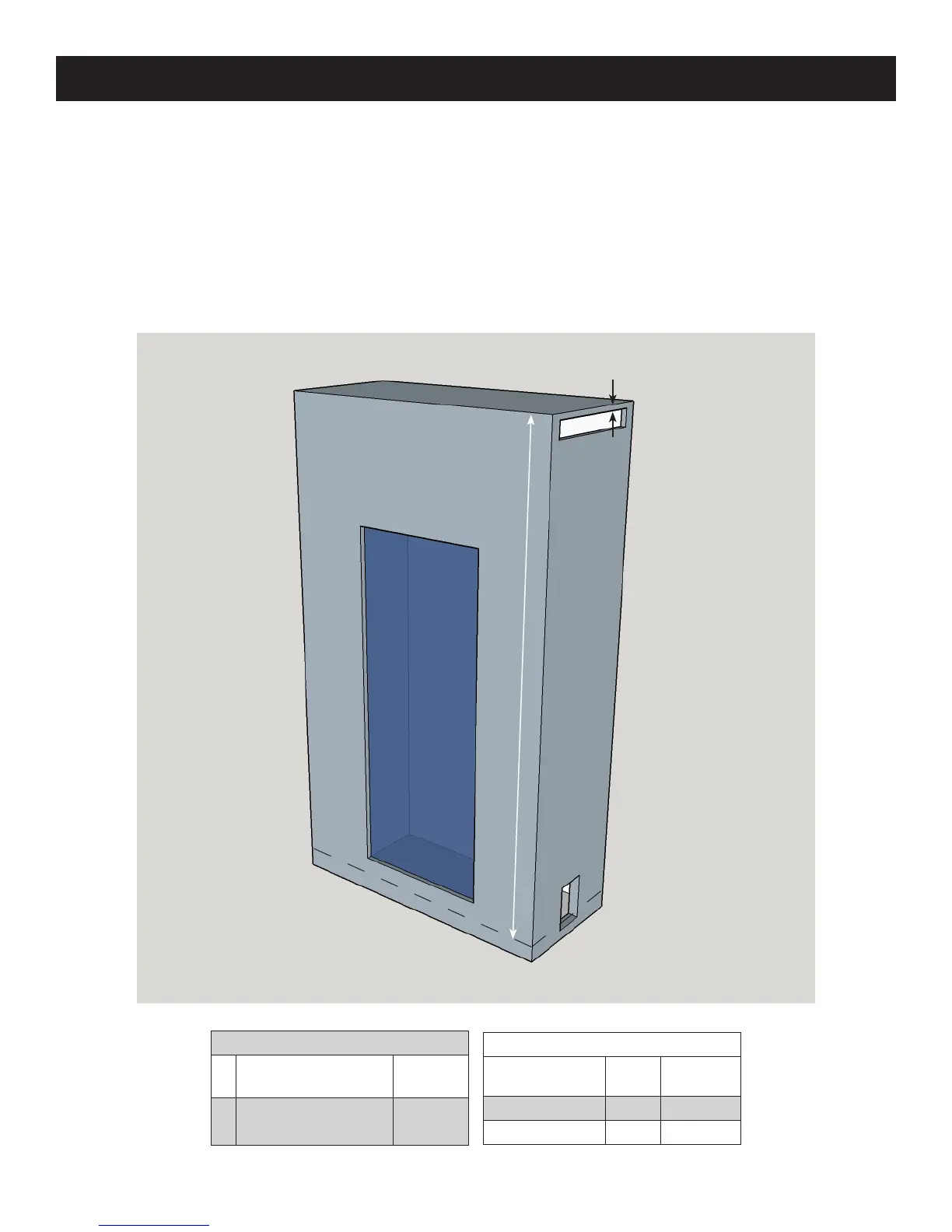

TYPICAL CLEARANCE DIAGRAMS
Minimum Distances
A
Room ceiling to
appliance bottom
72”
1830 mm
B
Room ceiling to top of
Convection Air Outlet
1”
25 mm
A
B
Convection
Air Outlet
Convection Air Outlet Area by Model
Model
Square
Inches
Square
Centimeters
Sky 35 258
Sky T 70 516
