VENTING
Element4 Gas Fireplaces EuropeanHome.com
RESTRICTORS
INSTALLING A RESTRICTOR
When Using a Horizontal (Wall) Termination
When vertical section is up to 3’3”/1 m no restrictor required
When vertical section is greater than 3’3”/1 m 35 mm restrictor
--------------------------------------------------------------------------------------------------------------------------------------
When Using a Vertical (Roof) Termination
When rise is up to 6’6”/2 m 35 mm
When rise is greater than 6’6”/2 m 60 mm
As previously noted, restrictors must be tted in some congurations. Use the table below to determine which restrictor may be
needed with your venting conguration. The restrictors are shown below.
The restrictor for all replace models installs at the very bottom of the outlet collar. Attach the appropriate restrictor to the
bottom of the outlet collar as shown using the screws provided.
Note that these restrictors are not intended to be bent or modied.

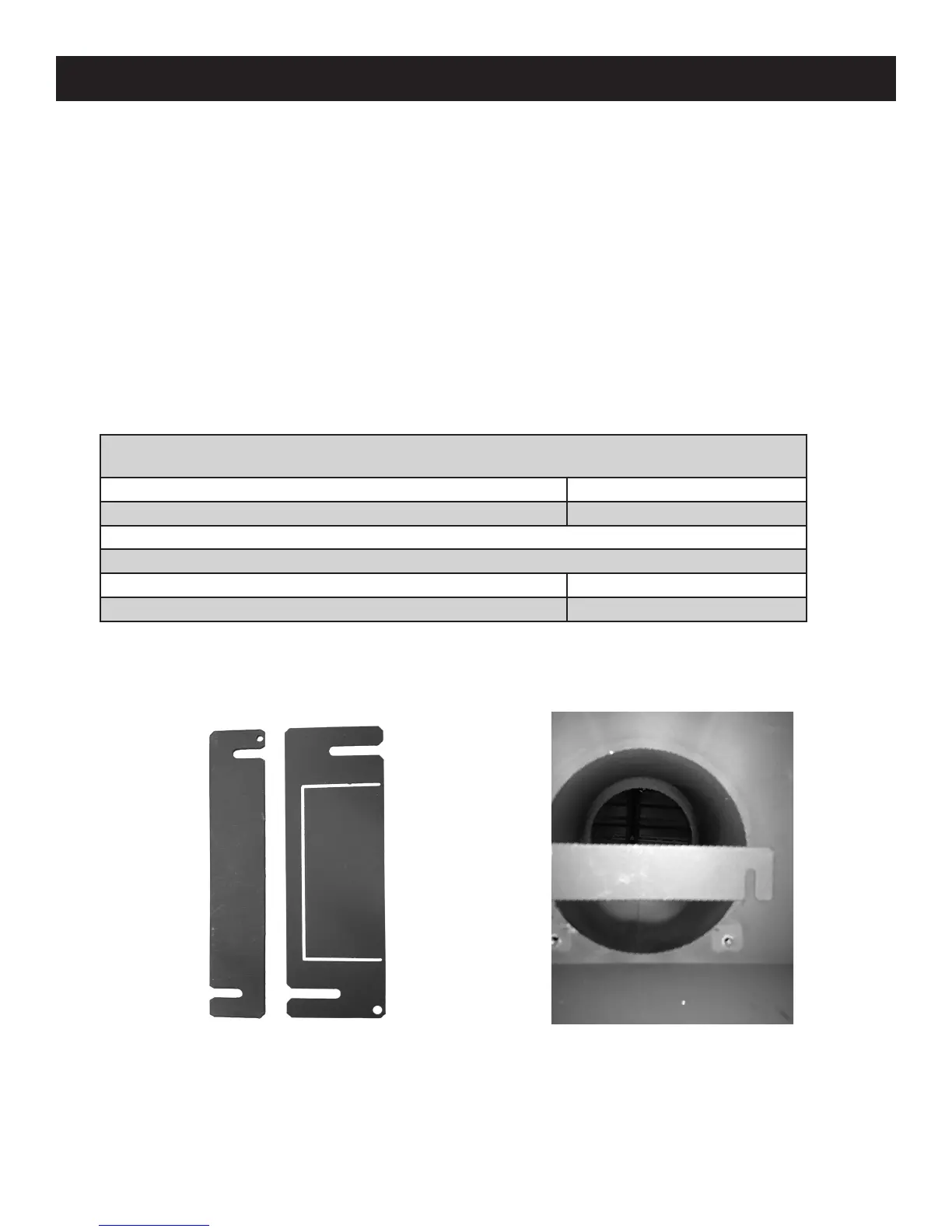

35 mm restrictor (left) and 60 mm restrictor 35 mm restrictor in place
