42
INSTALLING THE FIRE MEDIA
Element4 Gas Fireplaces EuropeanHome.com
STONES/GLASS ARRANGEMENTS
Ensure that the hearth panel is sitting rmly on the base of the re box and the shield is installed around the 2
nd
thermocouple.
The center panel must be inserted in between the burner tubes. The pilot ame must be visible through the hearth panel and the
pilot shield.
Evenly scatter the contents of the bag of stones/glass over the top of the hearth panel and burner. Ensure that none of the stones/
glass enters the pilot area or restricts the operation of the 2
nd
thermocouple.
The arrangement is now complete. However, it is important to check that the pilot ame is still visible.

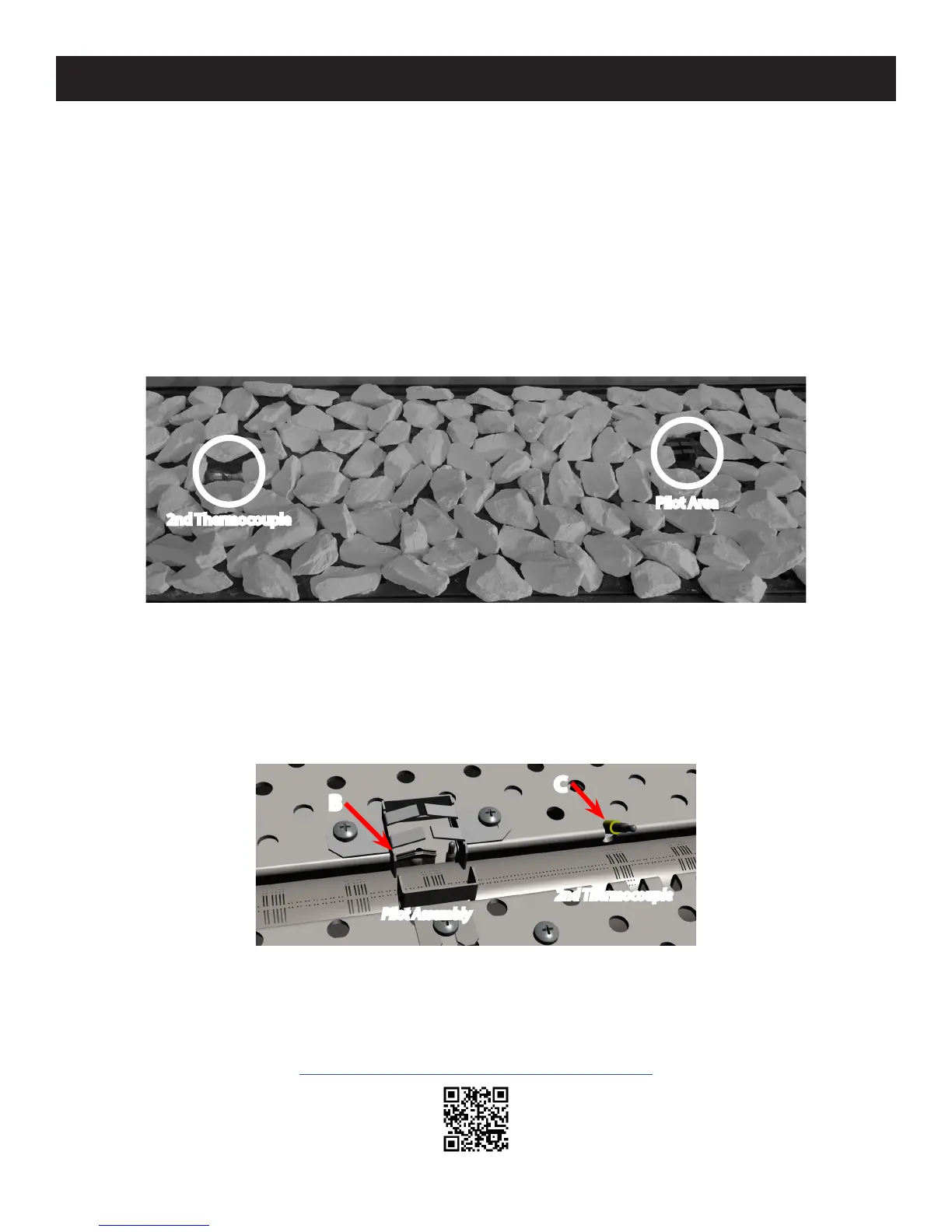

A shows the arrangement for stones; the arrangement for glass is similar.
B shows the pilot area (below) clear of media (above).
C shows the 2
nd
thermocouple area (below) clear of media (above).
To see how to arrange media in an Element4 replace
please visit the link below.
WWW.EUROPEANHOME.COM/RESOURCES/VIDEOS/
A
Pilot Area
2nd Thermocouple
B
C
Pilot Assembly
2nd Thermocouple
