Elenos ETG 2000.20 - Block Diagram Explanations

37

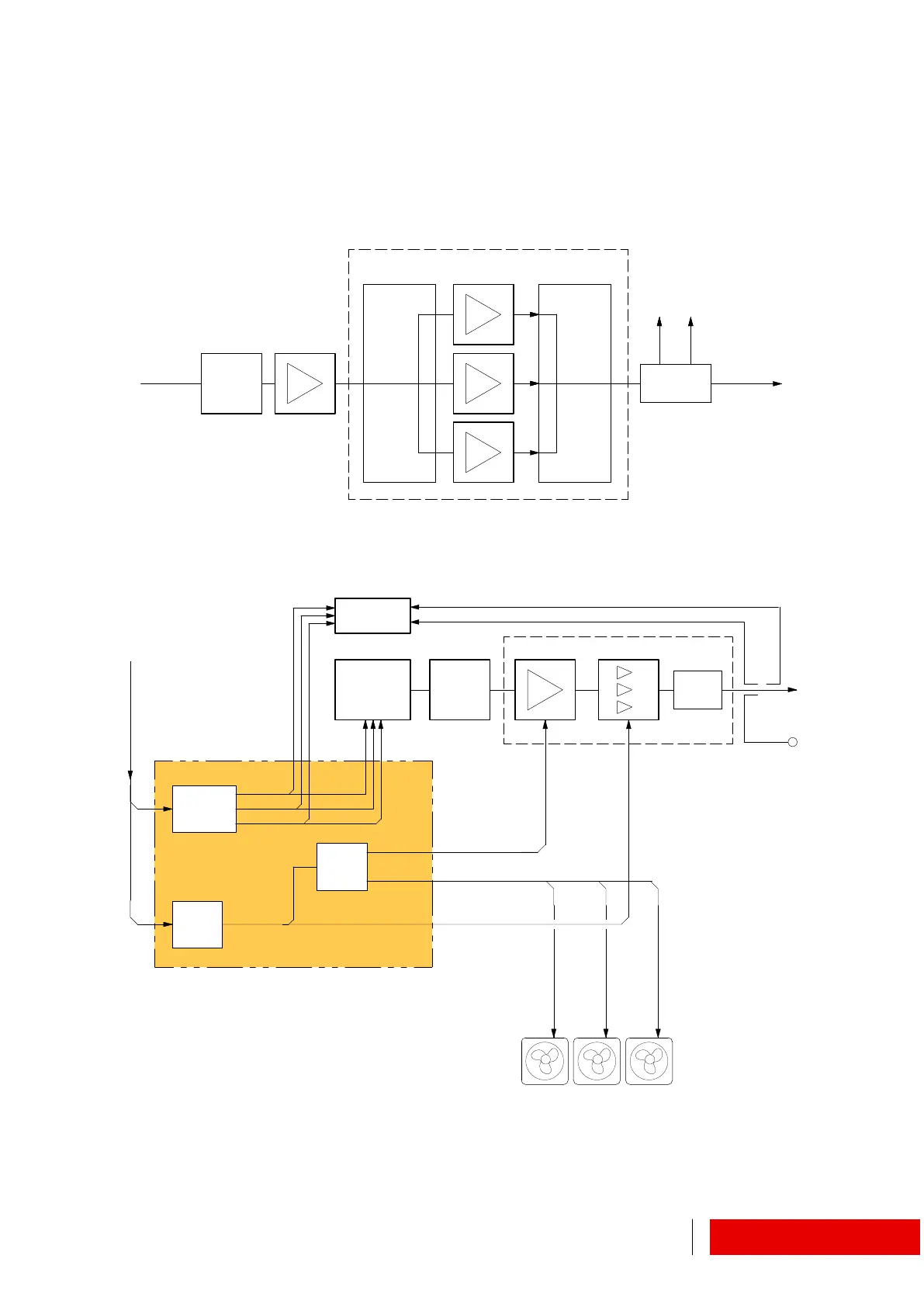

5.1 Block diagram
5.1.1 ETG 2000.20
Block diagram
3−WAY FM
SPLITTER
2−WAY FM
COMBINER
RF OUT
L. P. FILTER
&
DIR. COUPLER
FINAL STAGE
RF IN
DRIVER
POWER SUPPLY SECTION
AC/DC
CONV
SWITCHING
PWR SUP
MODULATOR
−12 VDC
+5 VDC
+12 VDC
CPU
board
FINAL
+28 VDC
DC/DC
CONV
MAINS INPUT
220VAC
(on rear panel)
AUX VDC
+28 VDC
RF OUT
L. P.
FILTER
RF MONITOR
+30/40VDC
+30/40VDC
3−WAY FM
COMBINER
DRIVER
FINAL STAGE
RF SECTION
3−WAY FM
COMBINER
L. P. FILTER
&
DIR. COUPLER
RF SECTION
VCO
VCO
