Elenos ETG 2000.20 - System Menu! System Config (1 of 2 and 2 of 2)

User instructions
Please, note that
when a field name
is abbreviated in
the mask, it will
write like this:
ShowDisplay =
Show D.
SYSTEM MENU
SYSTEM MENU
Temperature Unit: CELSIUS or FAHRENHEIT.
Show D
isplay: ALWAYS = display on also in remote mode.
P
ower Oscillation Check: TRUE = RF power swing protection active.
UPS T
arget (W): Target power in case of functioning with UPS.
Min
imum Temperature Sensors: Failure when >nn broken thermal probes.
Time Base (10MHz)
: VCO’s synchronization INTernal or EXTernal.
F
orward Power Calibration (%): RF output power reading calibration.
SWR Foldback
: ENABle = ROS protection active.
IPA Bias T
hreshold (V): RF preamplifier polarization threshold.
Refl
ected Power Threshold Nominal (10%): TRUE = Active (10% of rated power).
Refl
ected Power Threshold Level (W): User defined reflected power threshold (*)
P
ower Amplifier bias (V): RF amplifier polarization threshold.
Max Target P
ower (W): Maximum settable output power.
46

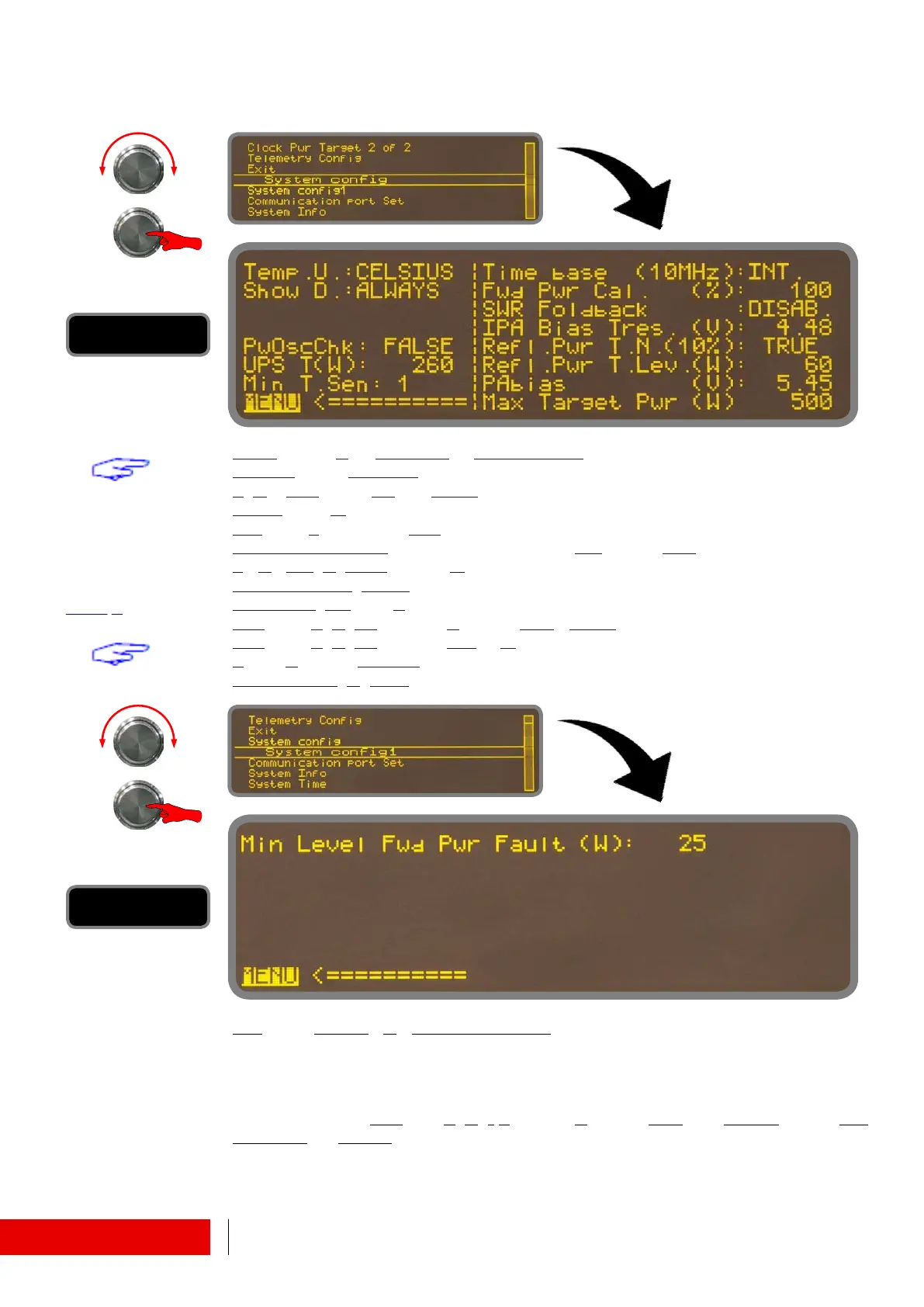

6.1.3 System Menu ! System Config (1 of 2 and 2 of 2)
Minumum LevelForward Power Fault(W): user defined low power threshold. It works in
OR with the standard “−3dB” alarm. Lower values of −3dB (half power) are ignored.
(*) It works when “ReflectedPower ThresholdNominal (10%) ” = “FALSE” and “SWR
Foldback” = “DISABled”. This value may be up to about 12% of rated power.
