User instructions
SWITCH
PC
EXCITER
ETH CABLES
!
65
6.3
External connectable devices
6.3.1
Connecting to a LAN/PC

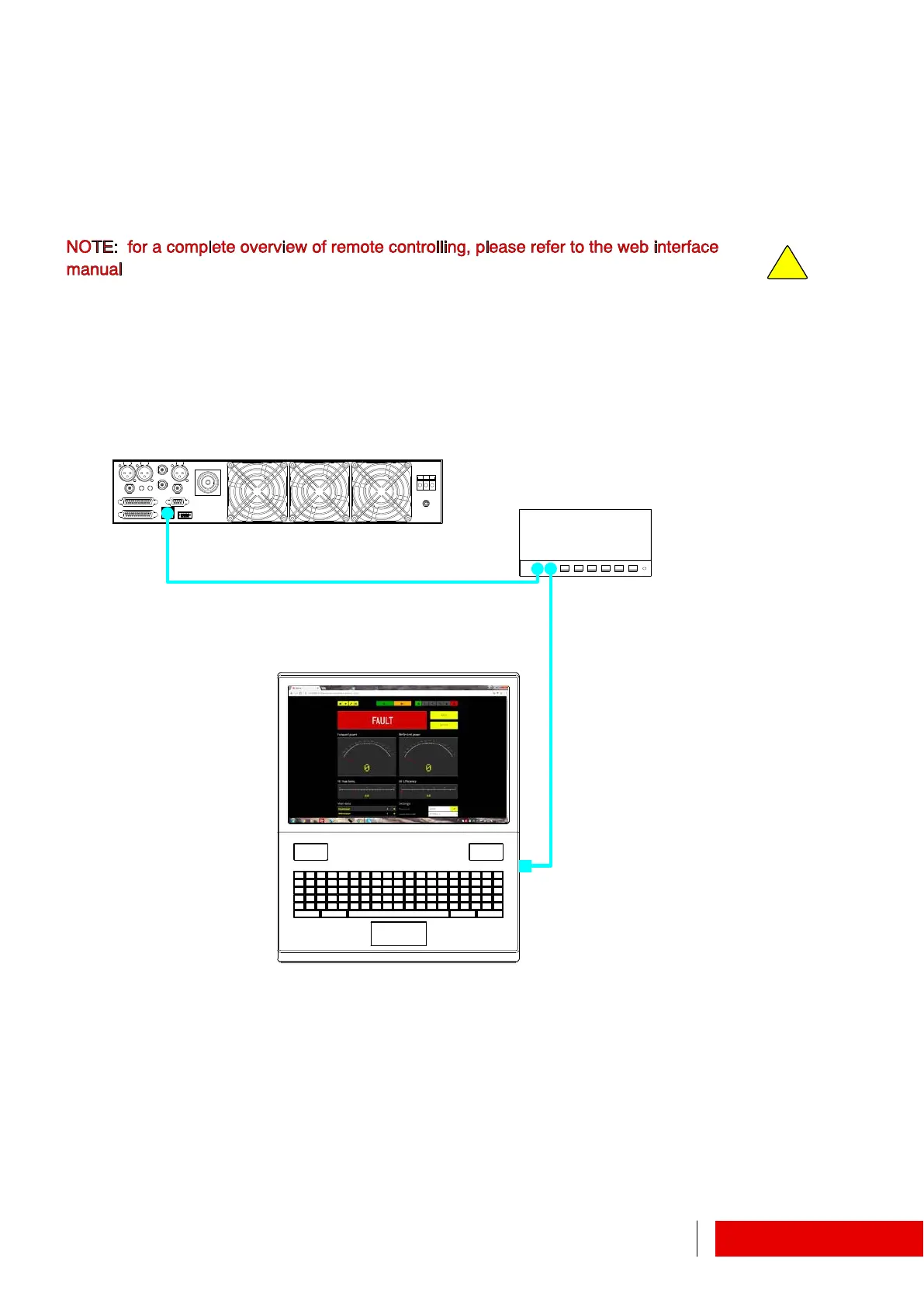

Connect the apparatus to PC via LAN using a switch or any other device such as a router
.
Also the direct connection between apparatus and PC is possible.
See web connection manual for all details.
64
66
Table of Contents
1 Informative Letter
7
Table of Contents
7
Personnel in Charge
8
Warranty
8
Exclusion
9
Exemption from Liability
9
2 Safety
11
Safety Precautions
13
Extensive Burns and Skin Cuts
15
First Aid
15
If the Victim Is Unresponsive
15
Less Severe Burns (1St and 2Nd Degree)
15
Treatment of Electric Shocks
15
Treatment of Electrical Burns
15
Electrical System Features
16
If the Victim Is Responsive
16
Room Characteristics
16
Workplace Characteristics
16
Calculation in the Free Space
18
Exposure Evaluation
18
Electric Field Values (V/M) as a Function of Power (W) and Distance
20
4 Product Description
27
Controls and Connections Overview
29
Contnectors Pin Assignment
30
EIA485 − Telemetry − Ethernet − Interlock
30
TC/TS − Profiles
30
Aux1 − Aux2 − MPX − MPX Monitor
31
Line Input − Grounding
31
RF Monitor
31
Stereo L/R − AES/EBU
31
IPC (Intelligent Power Control)
32
IPF (Intelligent Proportional Foldback)
32
Safeness Algorithms
32
Safety Management ("Lifextender")R
32
Software's Protections
32
6 User Instructions
41
User Interface
43
Menu Tree
44
TX Control Panel (Main Window)
45
System Menu ! System Config (1 of 2 and 2 of 2)
46
System Menu ! Communication Port Set / System Info
47
System Menu ! System Time / Clock Pwr Target 1 of 2
48
System Menu ! Clock Pwr Target 2 of 2 / Telemetry Config
49
Inputs Menu ! Base Band Levels / Change over Inputs
50
Inputs Menu ! Input Sensitivity Settings
51
RF & PWR Menu ! View TX Parameters (1 of 2 and 2 of 2)
52
Password Menu ! Password / Password Setting
53
Password Menu ! Password Recovery
54
Alarm Menu ! Alarm List / Event History
55
Alarm Menu ! User Alarm Data / User Alarms Timers
56
Alarm Menu ! Audio Trim and Alarms
57
Diagnostic Menu ! UART 0 Info / UART 1 Info
58
Diagnostic Menu ! UART 2 Info
59
Alarms/Warnings/Status List
61
Connecting to a LAN/PC
65
External Connectable Devices
65
Connecting to a Change Over/Audio Matrix
66
7 Datasheet
67
Datasheet
68
Individual Models Specific Parameters
70
Etg 2000.20
71
ETG Models Layouts
71
Etg 1000.10
72
Etg 500.5 / Etg 150
73
Etg
74
Other manuals for Elenos ETG 2000.20
Quick Start Manual
123 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Elenos ETG 2000.20 and is the answer not in the manual?
Ask a question
