14
1
2
1
2
1
2
Product description

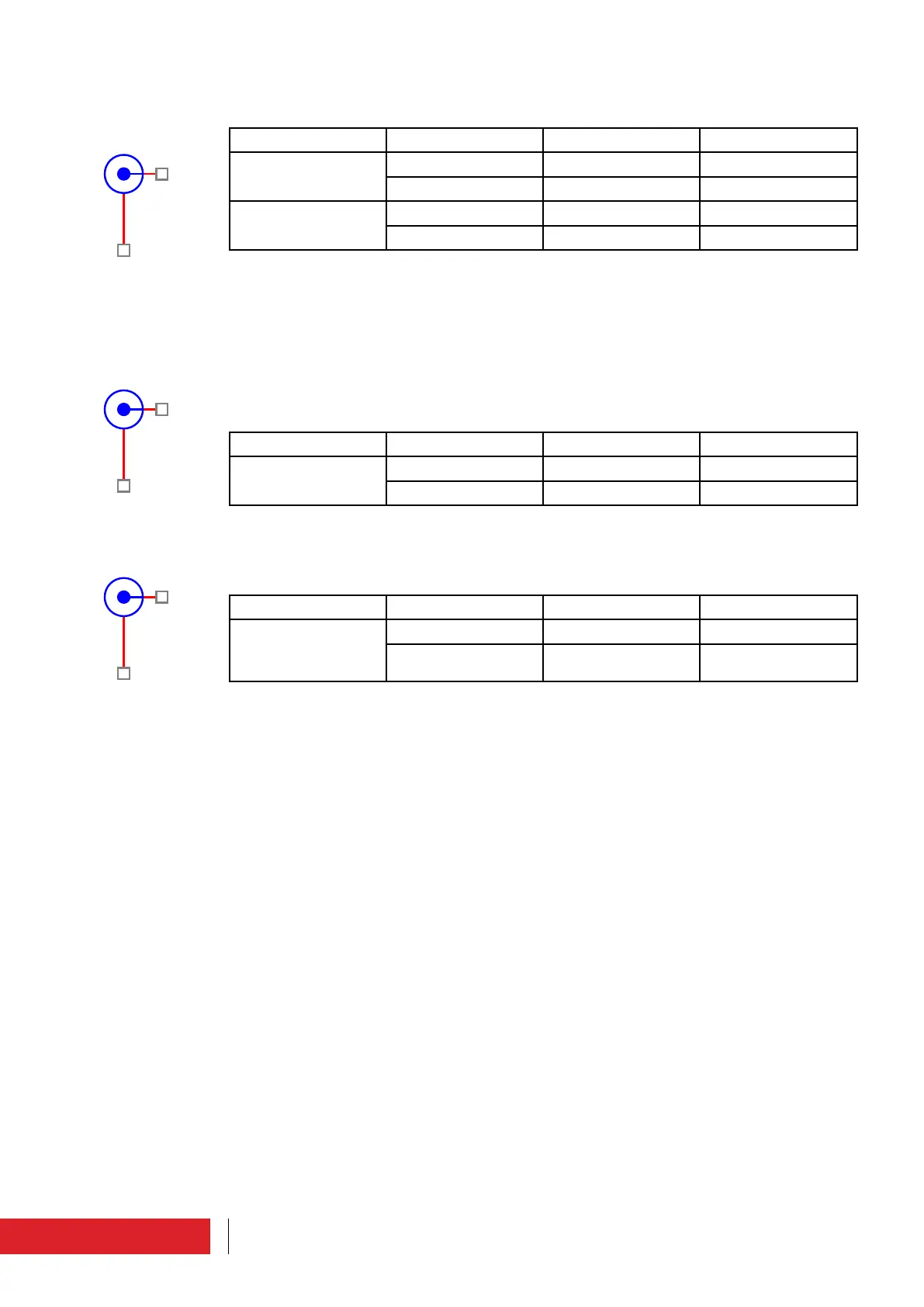

2.1.4 AUX connectors
N. 7 Rear panel (BNC type - female)
Connector Pin Meaning Notes
J2 on board
TG3K0B866
1 RDS/SCA AUX1 Input
2 Common ground
J3 on board
TG3K0B866
1 AUX2 Input
2 Common ground
2.1.5 MPX connector
N. 8 Rear panel (BNC type - female)
The input signal on the connector is in parallel, inside the card, to the signal L + right
channel. For the correct operation (Zin = 10 kOhm) requires that the jumper on the bo-
ard, to select the impedance of 600 ohms on the right channel is removed (the jumper
is not present by default).
Connector Pin Meaning Notes
J1 on board
TG3K0B866
1 MPX Input
2 Common ground
2.1.6 Monitor connector/19kHz
N. 9 Rear panel (BNC type - female)
Connector Pin Meaning Notes
J4 on board
TG3K0B866
1 Monitor MPX (19KHz) Output
2 Common ground
