18
13
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
14
1
Product description

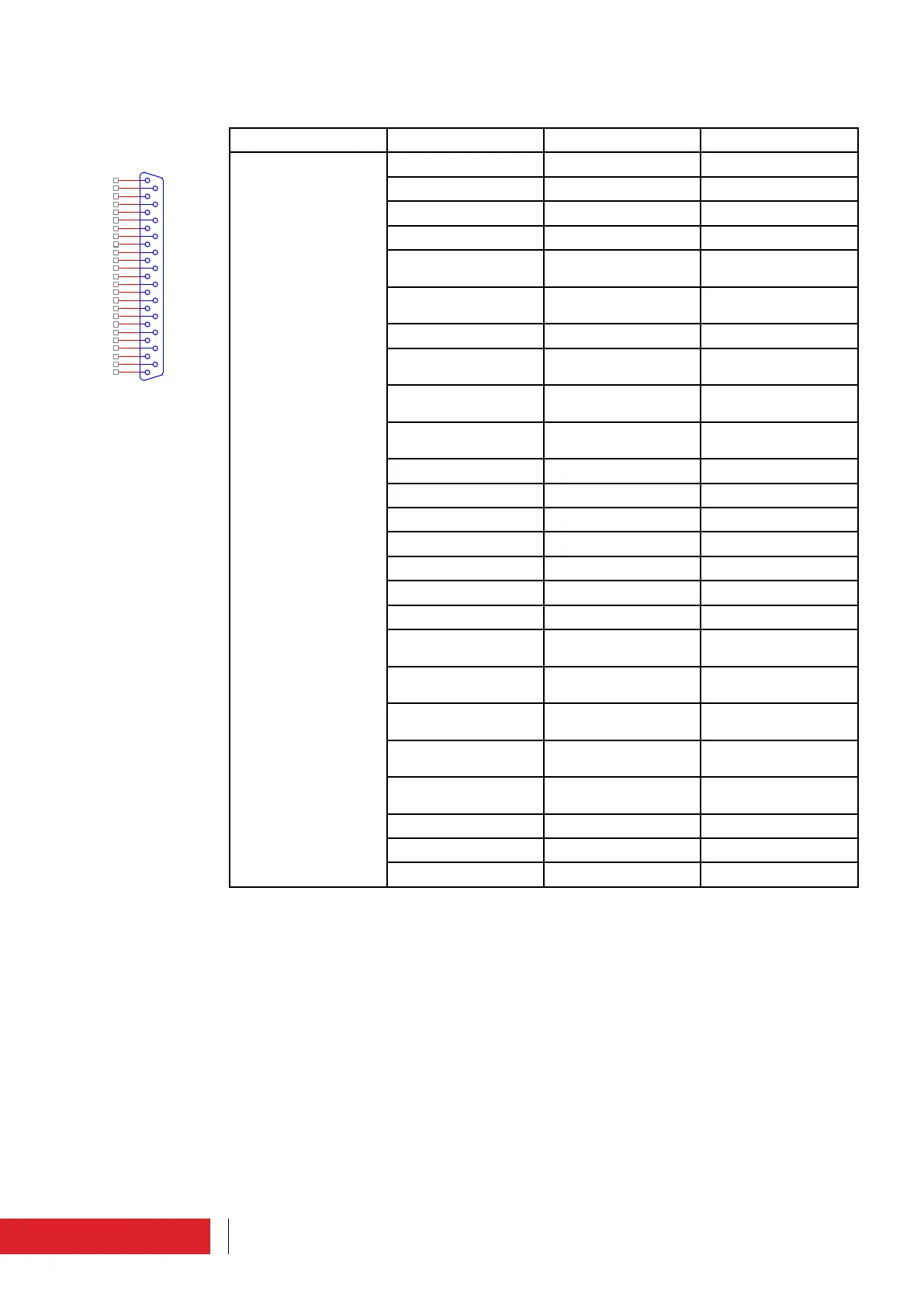

2.1.8 Profiles connector
N. 11 Rear panel (DB25 type - female)
Connector Pin Meaning Notes
CN1 on boardT-
G2U2A899
1 Channel 1 Command pulse
2 Channel 3 Command pulse
3 Channel 5 Command pulse
4 Riserve Command pulse
5 Common ground Connected to the
frame
6 Common ground Connected to the
frame
7 - Not connected
8 Common ground Connected to the
frame
9 Common ground Connected to the
frame
10 Common ground Connected to the
frame
11 Channel 5 status Signaling output
12 Channel 3 status Signaling output
13 Channel 1 status Signaling output
14 Channel 2 Command pulse
15 Channel 4 Command pulse
16 Channel 6 Command pulse
17 - Not connected
18 Common ground Connected to the
frame
19 Common ground Connected to the
frame
20 Common ground Connected to the
frame
21 Common ground Connected to the
frame
22 Common ground Connected to the
frame
23 Channel 6 status Signaling output
24 Channel 4 status Signaling output
25 Channel 2 status Signaling output
