32 Instructions for use
3.1.3 Profile baseband levels
Setting and display screen.
For each profile, the audio signal level, auxiliary channel level (expressed as a percen-
tage, 100% equals the maximum amplitude for 75kHz deviation), clipping value and
reference voltage value are defined.
The active profile values are indicated by the letter “A”. The deviation is displayed (in
kHz).
3.1.2 Profile RF/Baseband mode

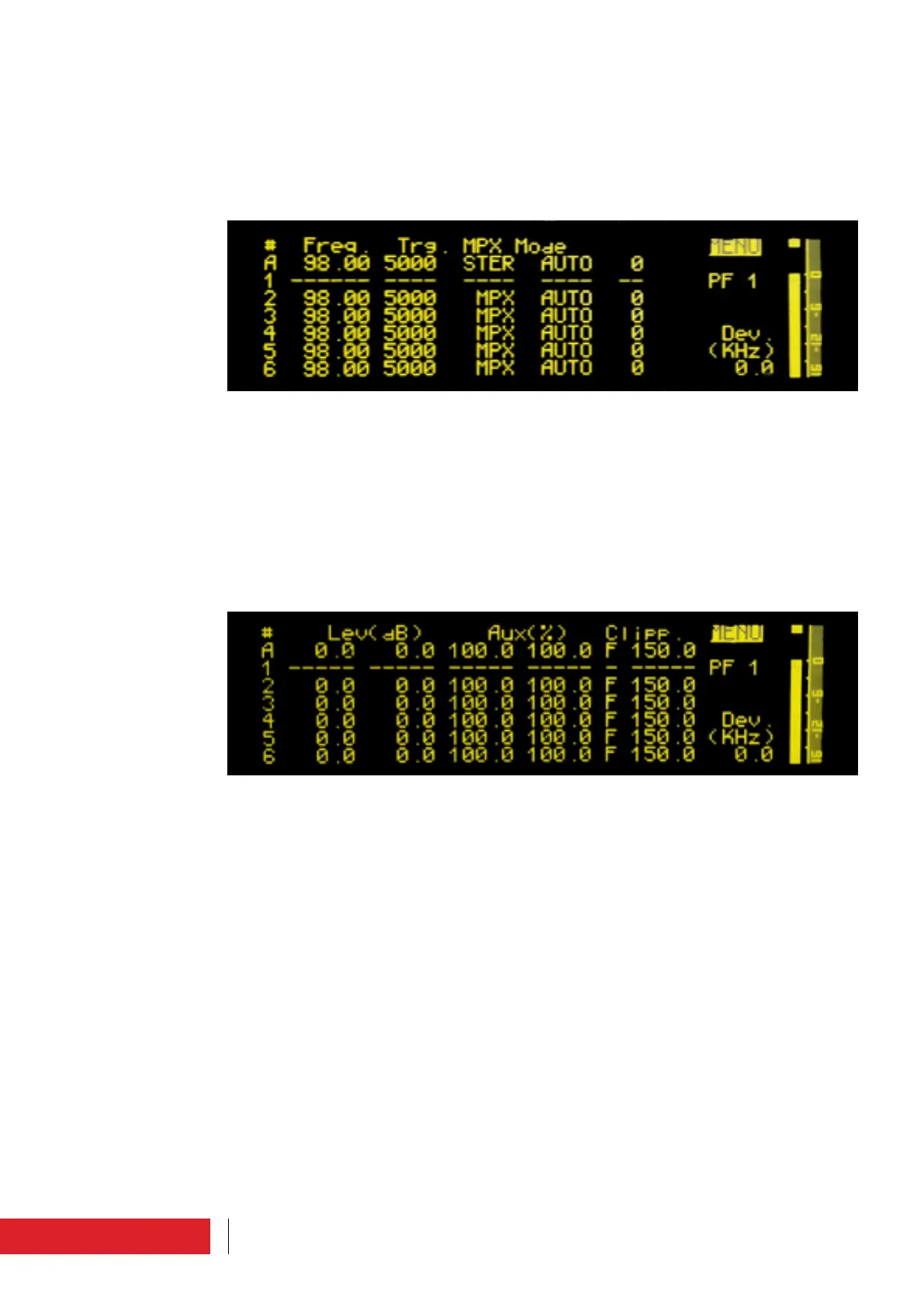

Setting and display screen.
For every profile, the frequency, target power, type of audio signal and pre-emphasis
are defined.
The active profile values are indicated by the letter “A”. The deviation is displayed (in
kHz).
