7.1.10 Inputs Level

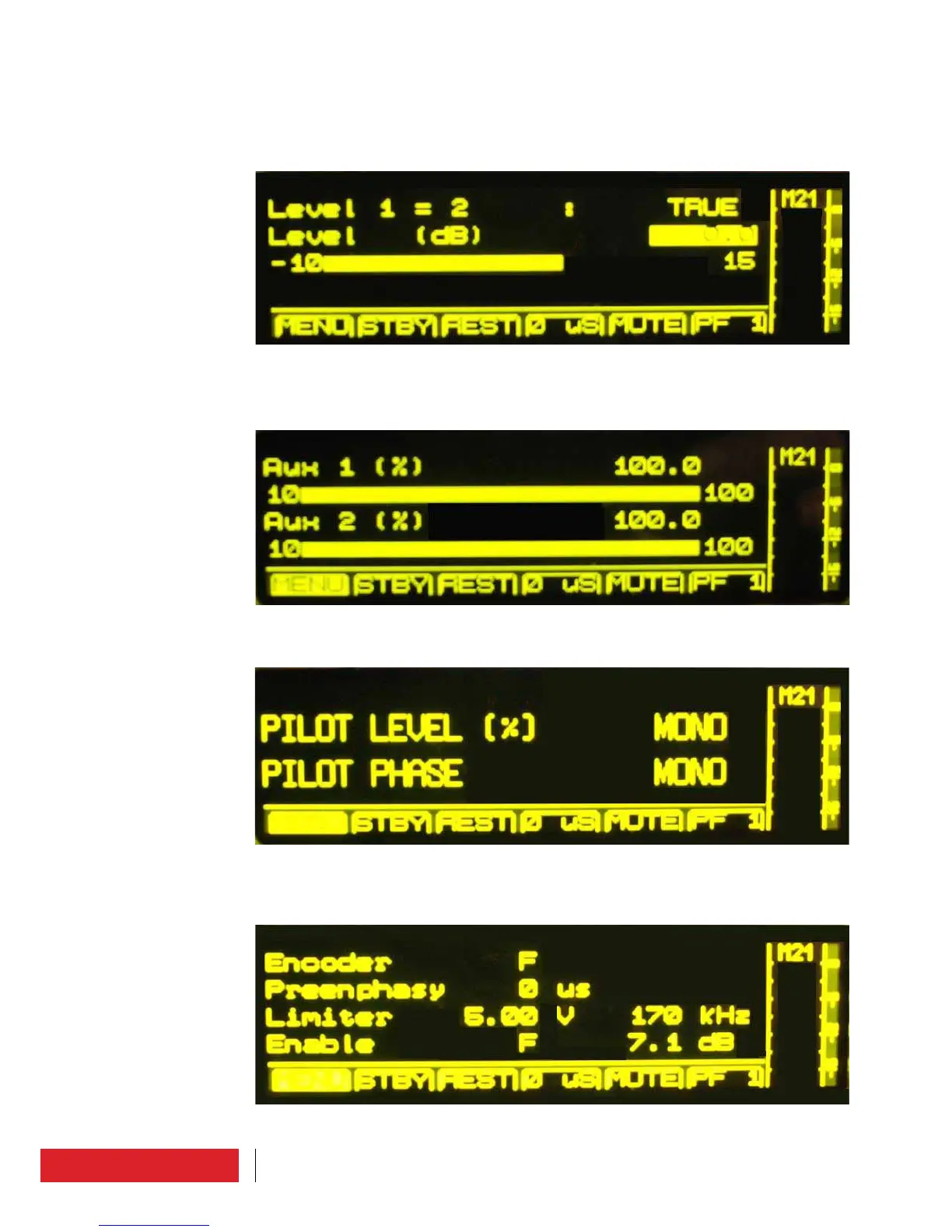

From here you can set the audio levels. This mask differs depending on the selected
mode (MONO, STEREO, MPX or MUTE).
In STEREO or MUTE mode, where both input channels are active, there is a flag that for-
ces the two gains to be equal.
7.1.11 Aux Inputs Level
From here you can set the levels of the auxiliary channels expressed in percentage.
100% is equal to the maximum amplitude for 75kHz deviation.
7.1.12 Pilot Level & Phase
From here you can set the pilot tone level and phase.
7.1.13 Exciter Clipping
From here you can set the maximum voltage value, in order to control the overmodula-
tion.
