- 12 -

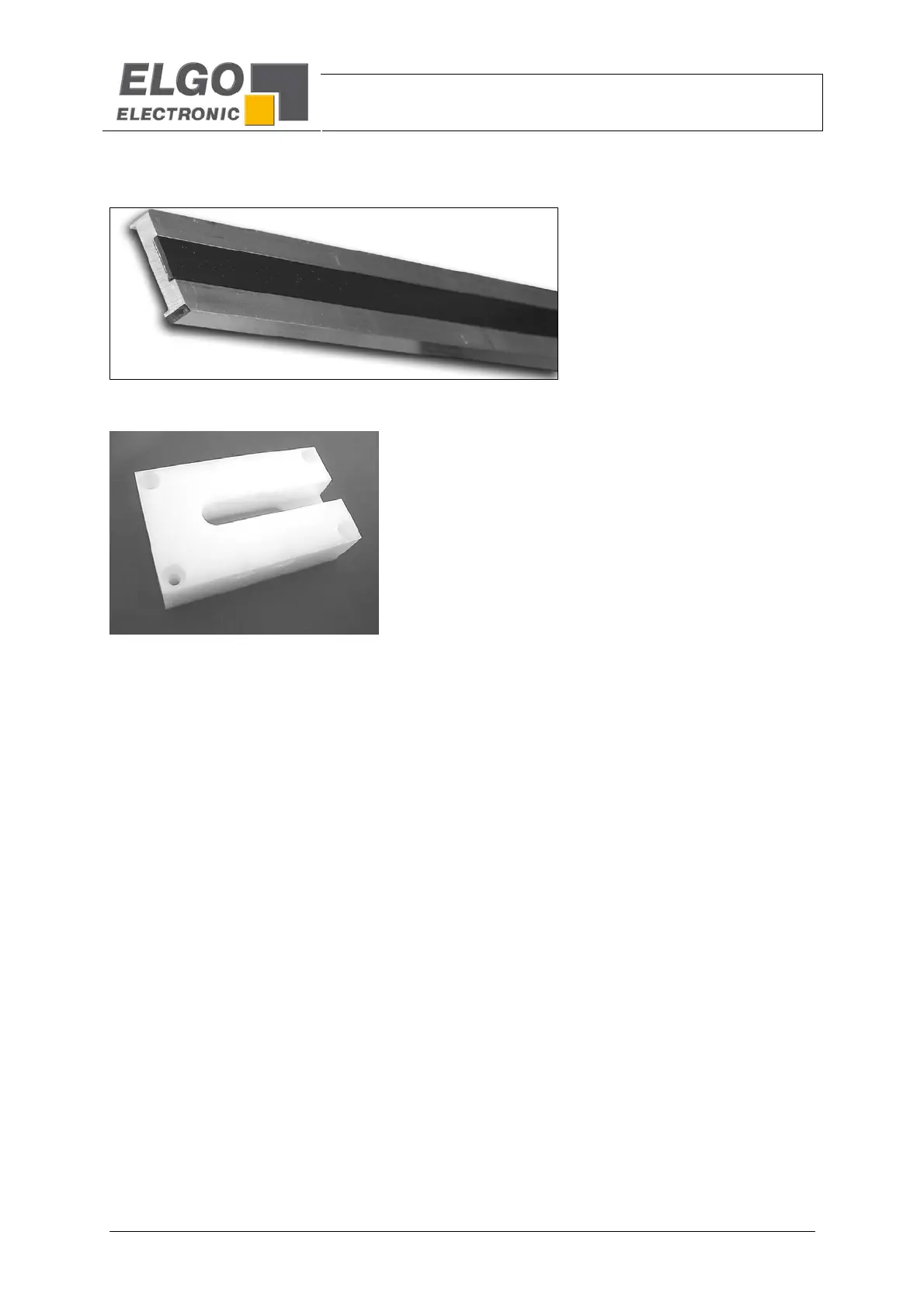

5.1.3.2 FS 20.25 guide rail and FW 20.60 guide carriage
Rail: l x w x h = (1or2m) x 25 x 6mm
Carriage: l x w x h = 80 x 48 x 25mm
The guide rail F520.25 is an aluminium profile with integrated chase in which the magnetic tape is pasted.
Additionally the matching guide carriage FW20.60 made of rubber which allows to slip. The complete Z16
position readout (display and sensor) can be mounted on the FW20.60.
Technical Data
