7.5 Accessories
7.5.1 Magnetic tape
The magnetic tape
MB 20-25-10-1-R
The magnetic tape consists of 3 components:
available lengths 0,5 - 32 m
A The magnetic, high-flexible rubber tape on the bottom united with:
B a magnetic flexible steel tape. This steel tape protects the rubber tape against mechanical defects
and represents a magnetic short circuit simultaneously.
This increases significantly the safety of function against extreme external magnetic
influences. A and B are supplied united from the factory.
C In order to receive the flexibility for transportation and assembly the third part also a steel tape
(magnetically permeable) is supplied separately. It is used for the mechanical protection of the
rubber tape and must be attached on the magnetic rubber tape after assembly.

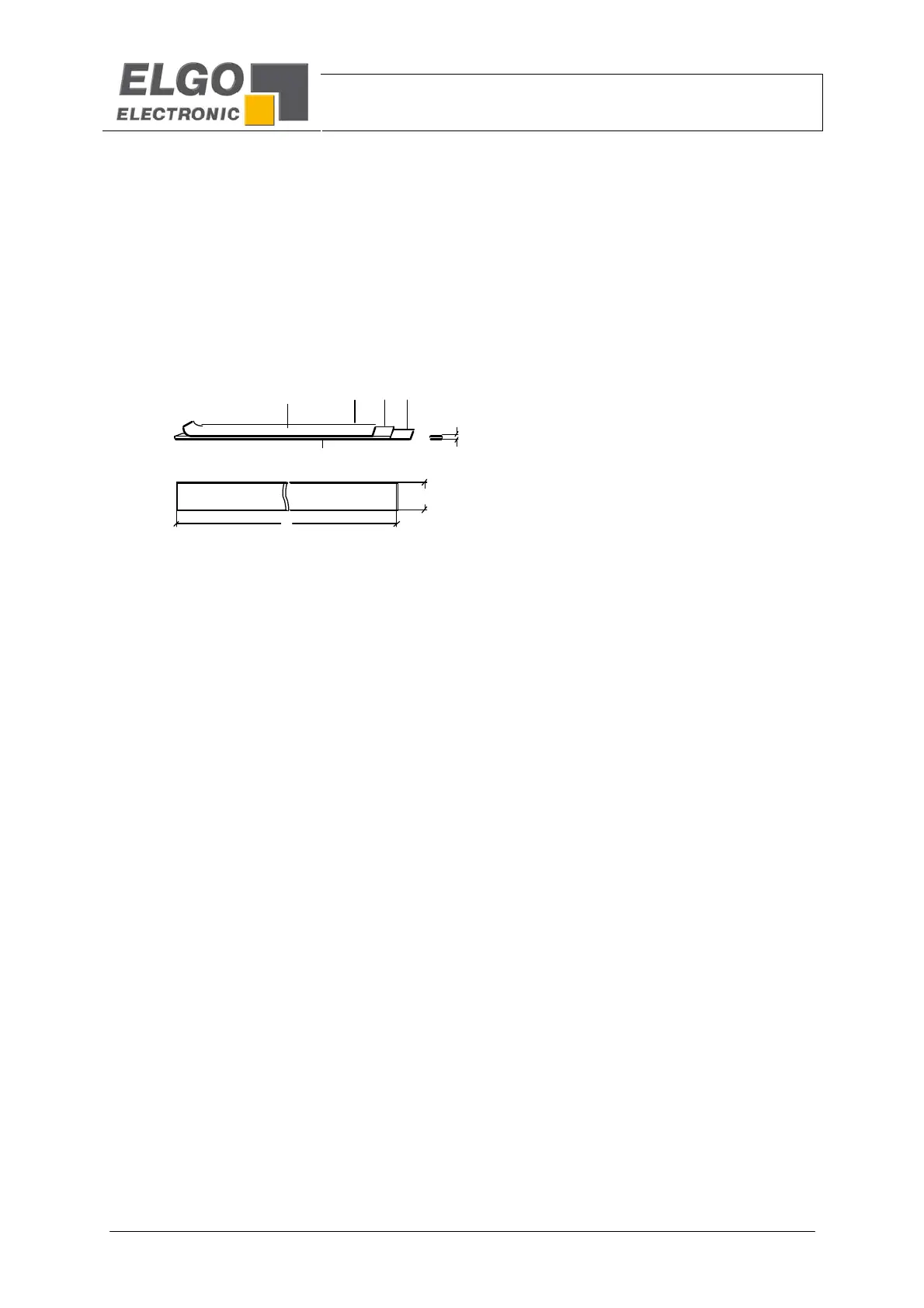

1,8mm
CAB
Befestigungsseite
Sensorseite
L
10mm
Structure and Function
Senso
r
side
Installation side
