1560 DIGITAL ISOLASJONSMÅLER MED KONTINUITET

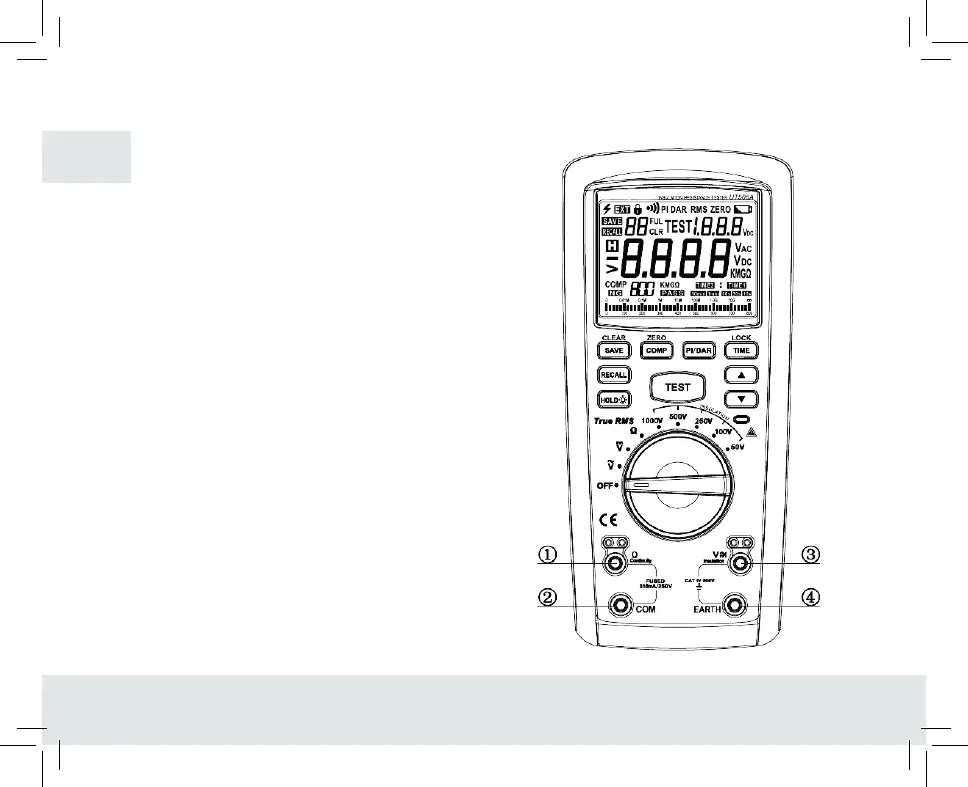

V. External structure (See Figure 1)
LCD display area:displaying the measured data and functional
symbols. Functional key area: selecting basic functions.
Rotary switch: selecting the measurement function gear.
Measurement port area:
1.Positive end of low-resistance jack;
2.Negative end of low-resistance jack;
3.Positive end of input jack for AC/DC voltage measurement
and insulation resistance measurement;
4.Negative end of input jack for AC/DC voltage measurement
and insulation resistancemeasurement;
FIGURE 1
