USING THE COPY CARD
The Copy Card is an accessory connected to the TTL serial port used for quick programming of the device para-
meters (upload and download a parameter map to one or more devices of the same type). Upload (label UL) and
copy card formatting (label Fr) operations should be performed as explained below:

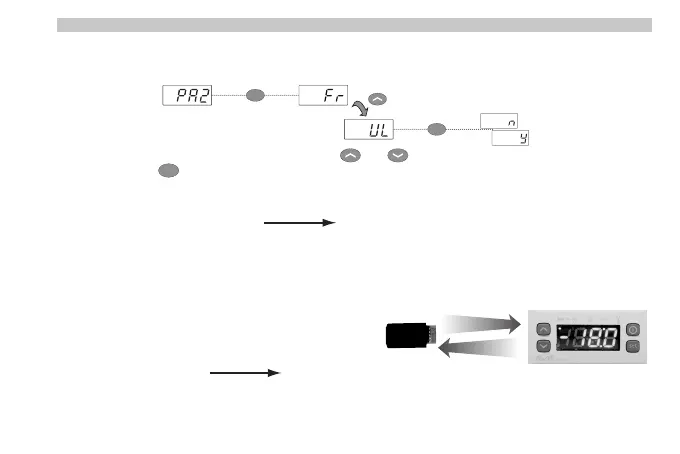

After the password ‘PA2’ has been putted in, press the and keys to scroll through to the required function
(e.g. UL). Press the key to execute the upload. If the operation is successful, the display will show ‘y’, if not it
will show ‘n’.
Upload (UL) This function uploads the programming parameters from the device.
UPLOAD: device Copy Card
Format (Fr) This command is used to format the copy card, an operation which is necessary when using the
card for the rst time. Important: when the copy card has been programmed, the parameter ‘Fr’
will delete all data that have been entered. This operation cannot be cancelled.
Download from reset:
Connect the copy card when the device is switched off. When
the device is switched on, the download from the copy card will
begin automatically. At the end of the lamp test, the display will
show ‘dLy’ if the operation was successful and ‘dLn’ if not.
DOWNLOAD: Copy Card device
NOTES:
- after the parameters have been downloaded, the device uses the downloaded parameter map settings.
To Next Page
