PROGRAMMING MENU
To access the “Programming” menu, press the
set
key for more than 5 seconds. If specified, an access PASSWORD
will be requested: “PA1” for User parameters and “PA2” for Installer parameters (see “PASSWORD” paragraph).
User parameters: When accessed, the display will show the first parameter (e.g. “diF”). Press
and to scroll
through all the parameters on the current level. Select the desired parameter by pressing
set
. Press and to
modify it and
set
to save the changes.
Installer parameters: When accessed, the display will show the first folder (e.g. “CP”). Press
and to scroll
through the folders on the current level. Select the desired folder using
set
. Press and to scroll through the
parameters in the current folder and select the parameter using
set
. Press and to modify it and
set
to save
the changes.
NOTE
: Make sure you switch the instrument off and on again each time the parameter configuration is changed, in
order to prevent malfunctioning in the configuration and/or timing in progress.

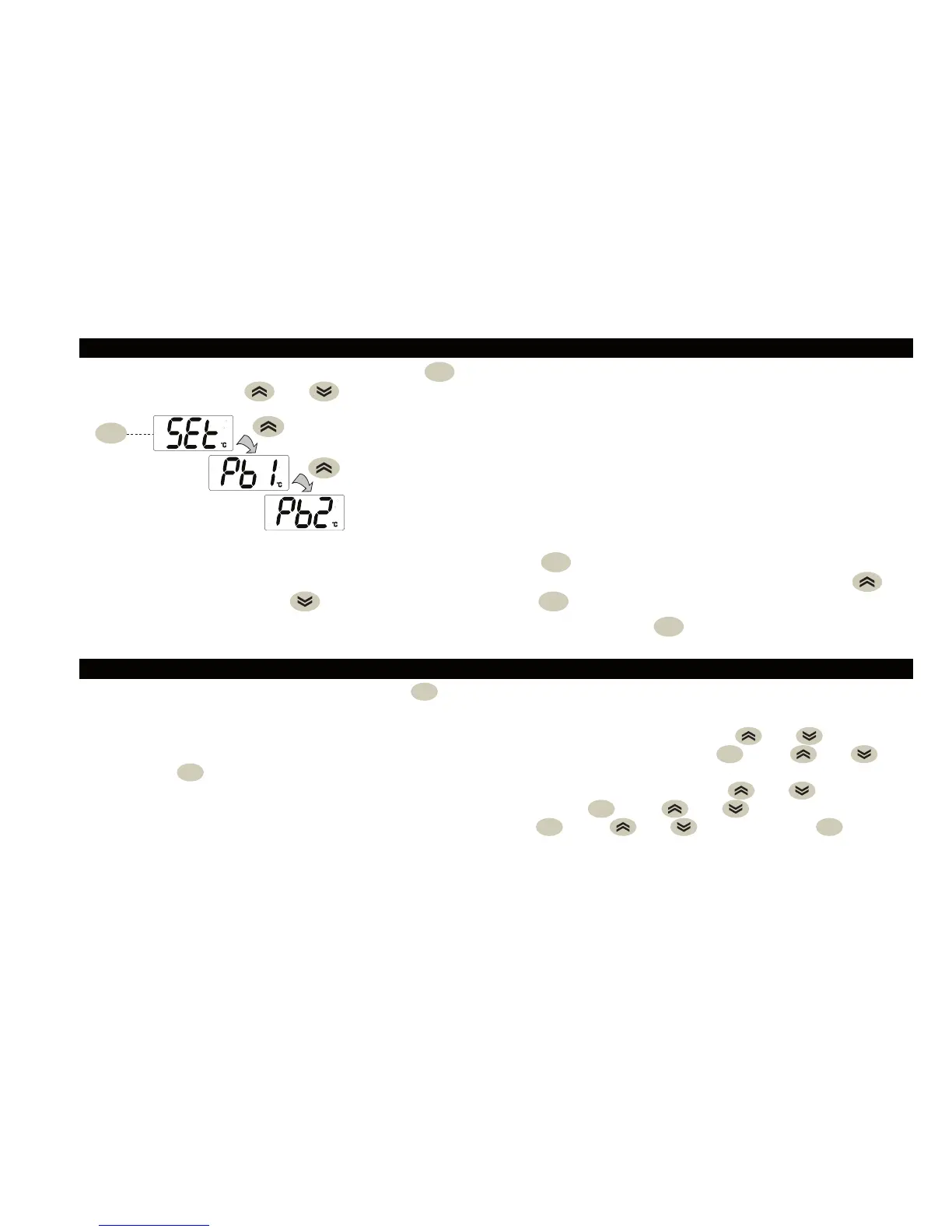

MACHINE STATUS MENU
Access the Machine Status menu by pressing
set
and releasing the key. If no alarms are active, the “SEt” label
appears. Use the keys
and to scroll through all the folders in the menu:
- AL: alarms folder (only visible if an alarm is active);
- SEt: Setpoint setting folder;
- Pb1: probe 1 - Pb1 folder;
- Pb2: probe 2 - Pb2* folder(IDPlus 971/974 models only);
- Pb3: probe 3 - Pb3** folder;
* folder displayed if Pb2 present (H42 = y)
** folder displayed if Pb3 present (H11 = 0 and H43 = y)
Setting the Setpoint: To display the Setpoint value press the
set
key when the “SEt” label is displayed.
The Setpoint value appears on the display. To change the Setpoint value, press the
and
keys within 15 seconds. Press
set
to confirm the modification.
Displaying the probes: When labels Pb1, Pb2 or Pb3 are present, press the
set
key to view the value measured
by the corresponding probe (NOTE: the value cannot be modified).
