EZWSR*1C, *2C LZWSR*1C, *2C

7/16” BOLT HOLES FOR

FASTENING UNIT TO WALL

UNIT CENTER LINE

TOP COVER

MOUNTING

SCREWS

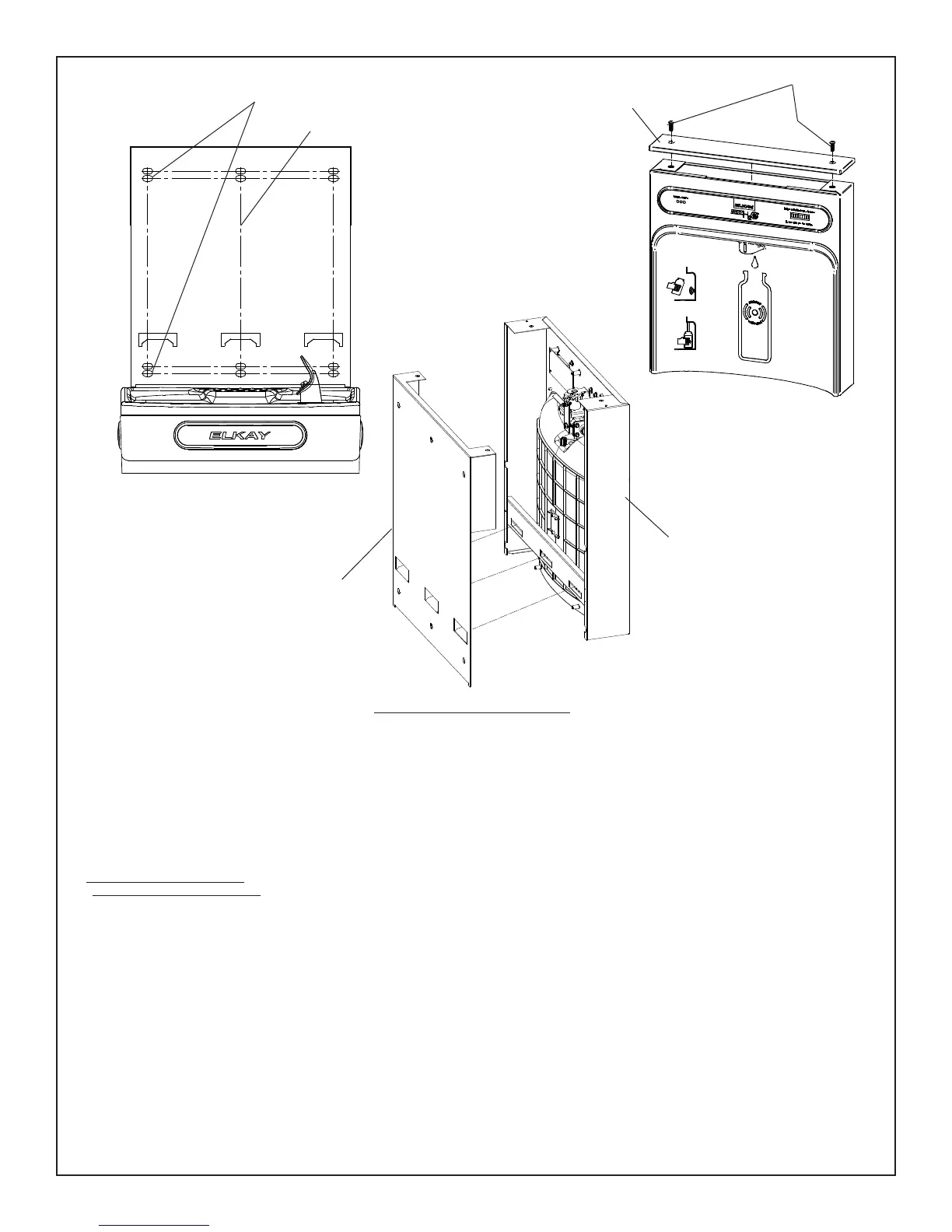

Fig. 12

BOTTLE FILLER INSTALLATION

1) Remove two (2) mounting screws with 5/32” Allen wrench holding top cover to Bottle Filler (See Fig. 13). Remove top cover. Note do not discard mounting

screws,

they will be needed to reinstall top cover.

2) Remove wall mounting plate from Bottle Filler. Place wall plate against wall on top of basin. Center the wall plate side to side with the basin. Mark

the six (6) mounting holes with a pencil (See Fig. 12).

3) Remove wall mounting plate from wall. NOTE: Mounting plate MUST be supported securely. Add xture support carrier if wall will not provide adequate support.

4) Install wall mounting plate to wall using six (6) 7/16” obround mounting holes (mounting bolts not included) (See Fig. 12). Use appropriate fasteners for your

wall type.

5) Feed power cord & 3/8” water line through hole in tower/basin gasket (See Fig 15).

6) Install gasket on bottom of bottle ller tower with gasket support bracket & (2) screws (See Fig 16).

7) Feed the purple wire (single units) or the purple and yellow wires (Bi-Level units) up through basin hole & hole in gasket.

8) For Single Model installations: Attach the purple wire from cooler to the purple wire on the back of the unit, (Note yellow wire is not used).

8a) For Bi-Level model installations: Attach the purple and yellow wires from coolers to the purple and yellow wires on the back of the unit, purple to purple,

yellow to yellow.

9) Lay Bottle Filler on water cooler basin and cut insulation from tube even with bottom of gasket, remove this insulation from the 3/8” tube, but do not discard.

Feed the power cord and waterline through the hole on top of water cooler. NOTE: To prevent scratching the basin place a towel or soft cloth over the entire basin

when working above it.

10) With the power cord, wire(s), and waterline through hole on top of water cooler place Bottle Filler on the three (3) angled tabs protruding from the wall (See Fig.

14) mounting plate installed on wall. Make sure round boss in gasket ts in hole of basin.

11) Once Bottle Filler is installed on wall plate tabs, waterline, wire(s) and power cord are installed properly, push top of Bottle Filler toward wall and line up top cover

two (2) holes.

12) Reinstall Top Cover on Bottle Filler (See Fig. 13) with two mounting screws from step 1 above. Caution, do not over tighten screws.

13) Install remaining tube insulation to the water line from bottle ller, connect Bottle Filler waterline inside of the water cooler by connecting the 3/8” water line to

the tee.

14) Install lter cartridge, remove lter from carton, remove protective cap, attach lter to lter head by rmly inserting into head and rotating lter clockwise.

NOTE: If existing plumbing rough-in locations (Drain, Water In, and Electric Supply) do not allow the lter to be mounted inside the cooler cabinet the lter can be

installed horizontally below the unit. A retrot kit is available to mount the lter beneath the cooler.

15) Turn water supply on and inspect for leaks. Fix all leaks before continuing.

16) Once unit has been inspected for leaks and any leaks found corrected, plug Bottle Filler and Cooler Unit into wall. Be sure to reinstall fuse to the circuit or switch

the circuit breaker back to the “ON” position.

17) Once power is applied to Bottle Filler, the GREEN LED light should illuminate showing good lter status along with the LCD Bottle Counter.

18) Verify proper dispensing by placing cup, hand, or any opaque object in front of sensor area and verify water dispenses. Note: the rst initial dispenses might

have air in line which may cause a sputter. This will be eliminated once all air is purged from the line.

19) Once unit tests out, install Lower Panel back on water cooler. Unit is now ready for use.

Fig. 13

Fig. 14

WALL MOUNTING PLATE

BOTTLE FILLING UNIT
