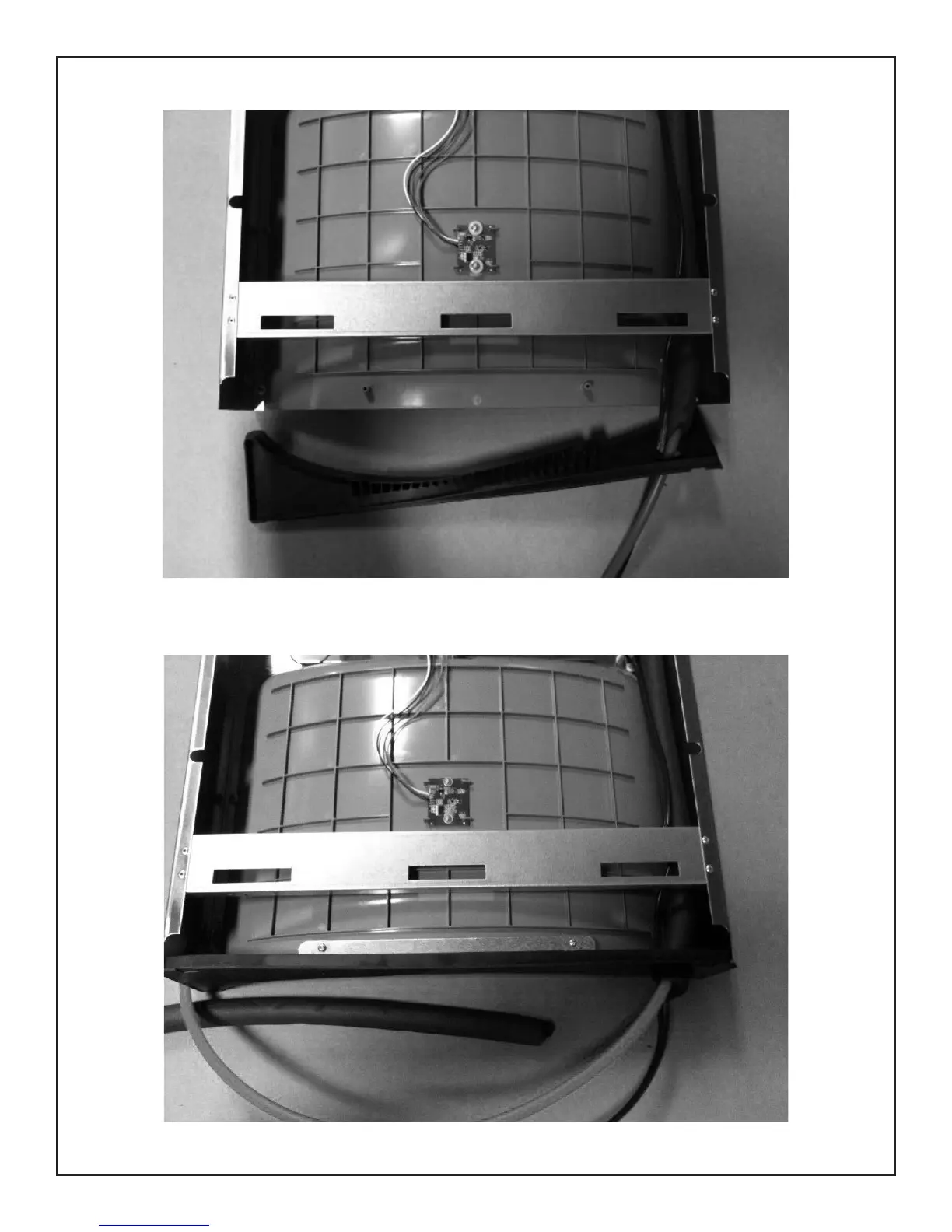

Elkay LZWSR 1C Series

Page 14
EZWSR*1C, *2C LZWSR*1C, *2C
1000001734 (Rev. C - 11/14)
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
PARA PIEZAS, CONTACTE A SU DISTRIBUIDOR LOCAL O LLAME AL 1.800.323.0620
POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.323.0620
PRINTED IN U.S.A.
IMPRESO EN LOS E.E.U.U.
IMPRIMÉ AUX É.-U.
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
NÚMERO GRATIS DE SERVICIO 1.800.260.6640
INFORMATIONS POUR LE SERVICE PAR NUMERO SANS FRAIS 1.800.260.6640
Fig. 15
DESCRIPTION
1
2
3
4
5
6
7
ITEM NO. PART NO.
51294C
70792C
70823C
70822C
51300C
70818C
22490C
Filter Head Assy.
Screw #8-18 x .75 PH
Fitting - Superseal 3/8” (10 mm)
Fitting - Superseal 1/4” (6 mm)
Filter Assy
Elbow - 3/8” (10mm)
Bracket
DESCRIPCIÓN DESCRIPTION
Ensamblado de la Cabeza del Filtro
Tornillo #8-18 x .75 PH
Accesorio - Supersello 3/8” (10mm)
Accesorio - Supersello 1/4” (6 mm)
Ensamblado del Filtro
Codo - 3/8” (10 mm)
Fijador
Ens. de tête de ltre
Vis #8-18 x .75 hp
Raccord - Superseal 3/8” (10mm)
Raccord - Superseal 1/4” (6mm)
Ens. ltre
Coude - 3/8” (10mm)
Support
WATERSENTRY
®
PLUS FILTER PARTS LIST
(See Fig. 15)
LISTA DE PIEZAS DEL FILTRO
(Vea Fig. 15)
LISTE DES PIÈCES DU FILTRE
(Voir Fig. 15)
1
2
3
4
5
6
7
WATER FILTER EXPLODED VIEW
DESCRIPTION
98543C
98544C
98545C
98546C
98547C
1000001813
98549C
98551C
98568C
98552C
0000001337
1000001812
1000001877
Kit - Electrical Package115V
Kit - IR Sensor 115V
Kit - Solenoid Valve Replacement 115
Kit - Aerator Replacement
Kit - Top Cover Replacement
Kit - Drain Tower/Basin Gasket
Kit - Hardware & Waterway Parts
Kit - LZ Filter Mounting Cover (L)
Kit - LZ Filter Mounting Cover (S)
Kit - Retro Filter Mounting
Kit - Basin Replacement
Kit - Bottle Filler Drain
Kit - Drain Replacement
REPLACEMENT PART KITS
PART NO.
