Page 15 1000001734 (Rev. K- 04/18)
EZWSR*1C, *2C LZWSR*1C, *2C

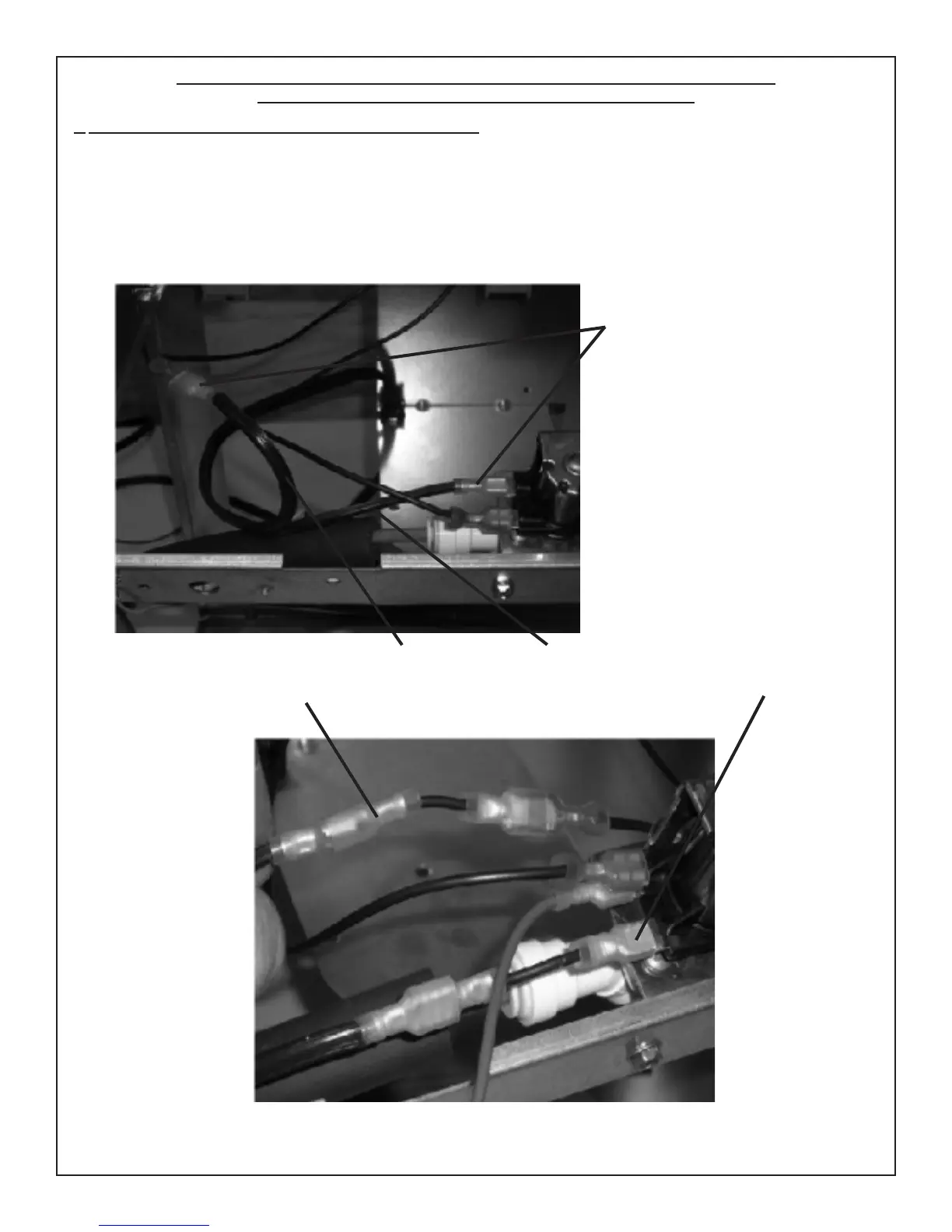

WIRING MODIFICATION FOR NON-REFRIGERATED UNIT IN A BI-LEVEL COOLER
IF BOTTLE FILLER COUNTER CONTINUOUSLY ADVANCES
1) DISCONNECT POWER TO ALL UNITS BEFORE PROCEEDING!
2) Disconnect ribbed wire (powercord) from the switch wire (from pushbar), add the female to female adapter to wire.
3) Remove the smooth larger black wire (powercord) from the solenoid valve. Connect ribbed wire with female adapter from step 2 to
where the smooth black wire was connected.
4) Add the male to male adapter to the smooth wire removed in step 3.
5) Connect the smooth black wire with male adapter to the switch wire (from pushbar) removed in step 2.
6) Reconnect power to all units. Verify bottle ller counter advances only when water is owing.
7) Once unit tests out, install lower panels back on water cooler. Units are ready for use.
REVERSE THESE TWO WIRES
ON THE NON-REFRIGERATED
UNIT OF BI-LEVEL MODELS
ONLY USING THE PROVIDED
ADAPTERS.
UNIT WITH WIRE ADAPTERS ADDED AND WIRED CORRECTLY
MALE TO MALE ADAPTER
FEMALE TO FEMALE ADAPTER
POWERCORD BLACK RIBBED WIRE
POWERCORD BLACK SMOOTH WIRE
