97924C (Rev. A - 03/03)
ERPB2-8C, ERPB2-8RAC, ERPBV2-8C, ERPBV2-8RAC, LRPB2-8C, LRPB2-8RAC
Page 2
LEGEND
A = 1/4 O.D. Tube - Water Outlet Connection
B = 3/8 O.D. Tube - Water Inlet Connection
C = 1-1/4 Waste Tube
D = ELECTRICAL INLET

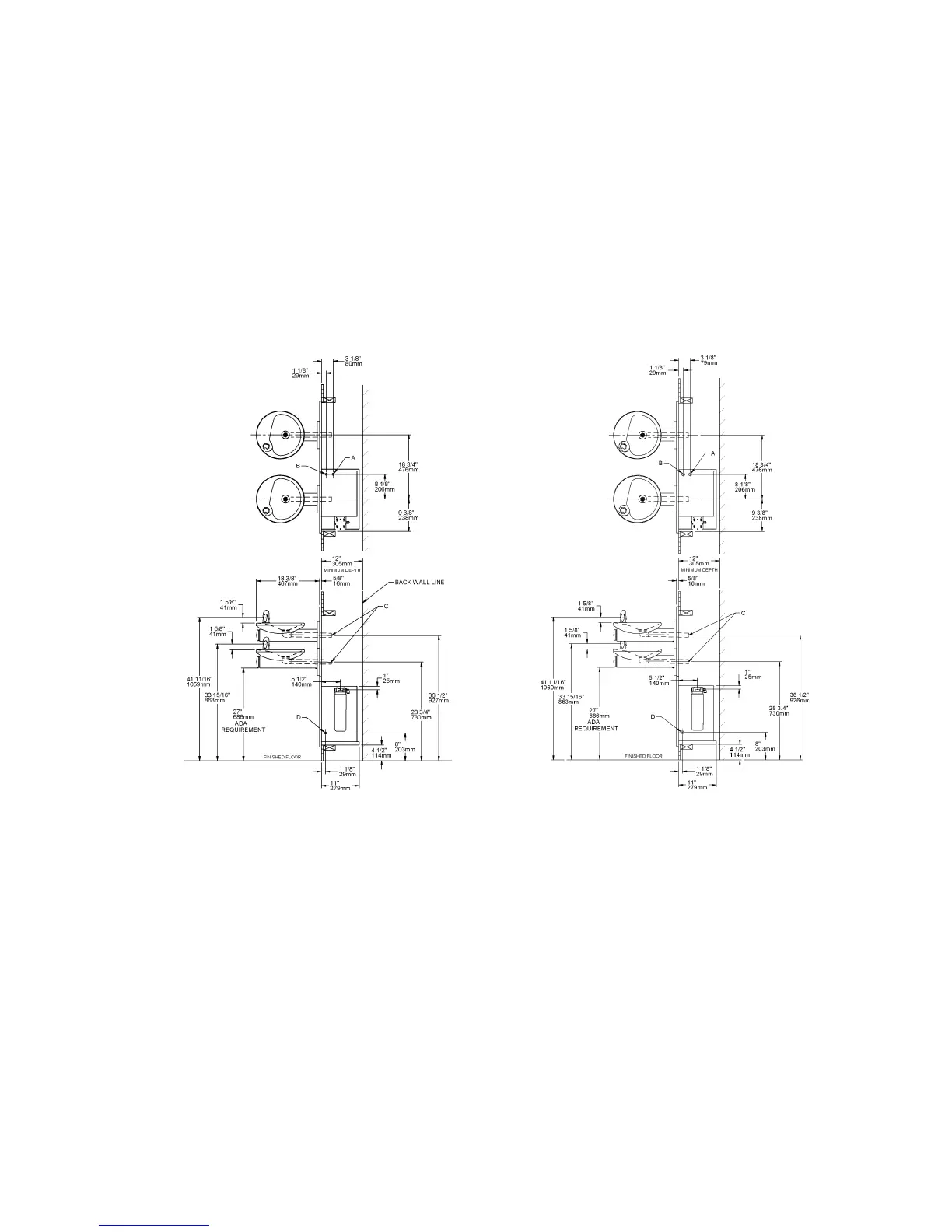

Figure 1 - Rough-in Dimensions
Model LRPB2-8C Model LRPB2-8RAC
