97924C (Rev. A - 03/03)
ERPB2-8C, ERPB2-8RAC, ERPBV2-8C, ERPBV2-8RAC, LRPB2-8C, LRPB2-8RAC
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
Page 8

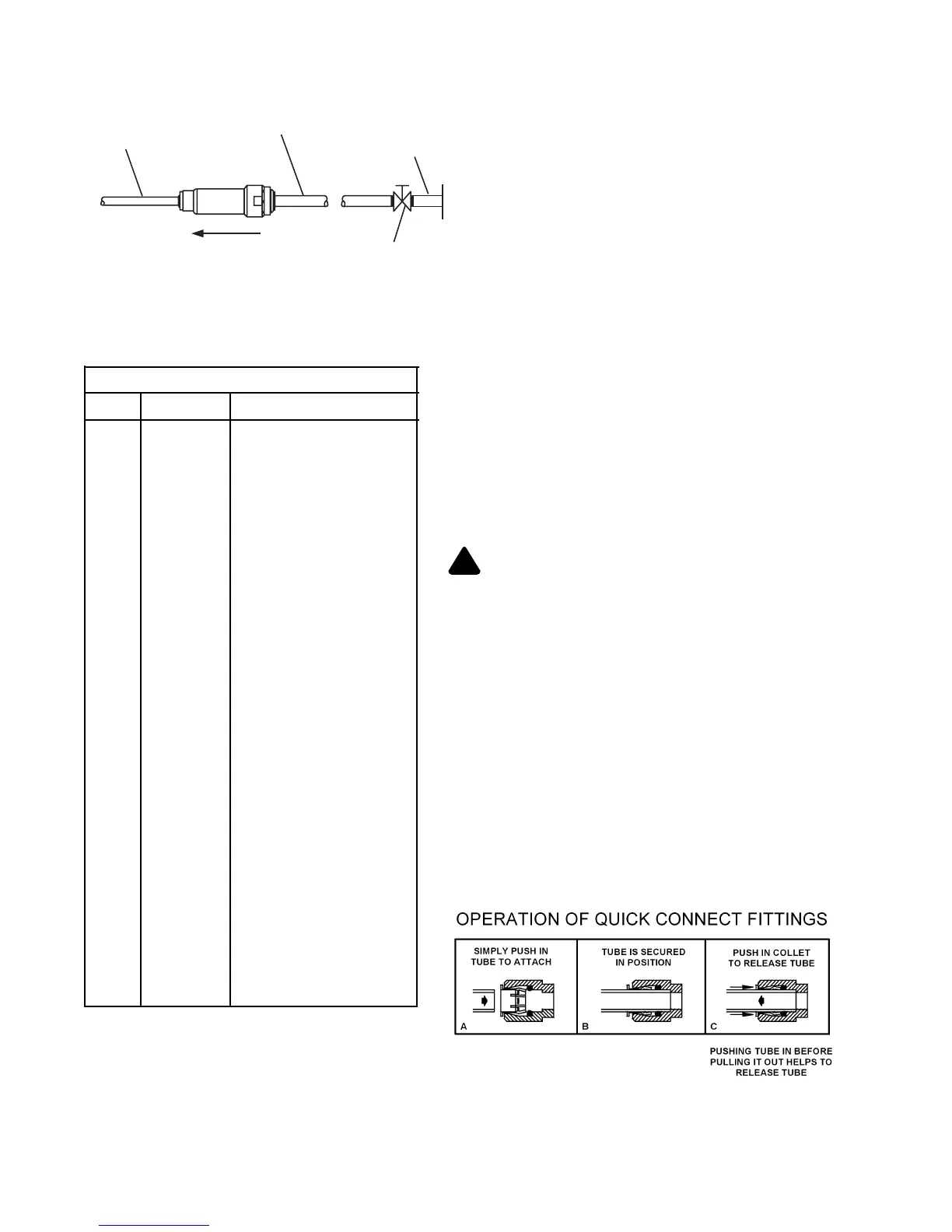

Figure 12 Water Supply Connections
NOTE: WATER FLOW
DIRECTION
SERVICE STOP
(NOT FURNISHED)
BUILDING WATER INLET
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
1/4" O.D. TUBE
WATER INLET
TO COOLER
Installation Package
The components for installation are packed in three
separate boxes, regardless of the type of unit being
installed. The boxes contain the following:
Box No. 1: Wall Frame(s)
Box No. 2: Remote Chiller, ECH8
Box No. 3: Fountain(s), Arm(s) and Panels
Additional materials, as noted in the Parts List, are also
shipped in these boxes.
PARTS LIST
ITEM NO.
PART NO.
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
56073C
40319C
50171C
50314C
56011C
55997C
75580C
45392C
100322740560
15009C
55001026
55000944
45767C
28343C
45781C
45792C
45780C
50986C
61313C
15005C
50074C
45769C
40575C
56092C
70682C
55996C
28383C
28384C
27026C
111008343890
70432C
38417001
75560C
75632C
70817C
70020C
28395C
70683C
45805C
Bubbler Assy
Fitting - Orifice
O-Ring
Orifice - Flow Straightener
Housing Assembly
Pedestal
Bubbler Locknut
Body - Bubbler VR
Gasket - Black .68 x 1.03 VR
Nipple - Bubbler VR
Basin - Swirlflow
Lower Shell
Fountain Body
Cover Plate
Sleeve
Pin - Push Button
Push Button
Holder - Regulator
Regulator
Retaining Nut
Gasket - Drain
Assy - Drain/Tailpipe
Assy - Strainer & Ferrule
Poly Tubing (Cut To Length)
Tee - 1/4
Strainer (Provided with Chiller)
Back Panel RH ADA
Back Panel LH ADA
Lower Panel
Screw - #10-24 x .62 HHSM
Screw - #8-32 x .38 THSM
Screw - #8-18 x .37 HHSM
Screw - 5/16-18 x 1.00 HHMS
Setscrew - #10-32 x .38
Fttng - Elbow 1/4 x 1/4
Nut - Hex 5/16-18
Bracket - Support
Fitting - Union 1/4 x 1/4
Adapter
TROUBLESHOOTING & MAINTENANCE
Orifice Assembly: Mineral deposits on
orifice can cause water flow to spurt or not
regulate. Mineral deposits may be removed
from the orifice by poking with a small round
file not over 1/8 diameter, or using a small
diameter wire.
!
CAUTION:
DO NOT file or cut orifice
material.
Stream Regulator: If orifice is clean,
regulate flow as in Step 11 of the installation
instructions. If replacement is necessary, see
parts list for correct regulator part number.
Actuation of Quick Connect Water
Fittings: Cooler is provided with lead-free
connectors which utilize an o-ring water seal.
To remove tubing from the fitting, relieve water
pressure, push in on the gray collar while
pulling on the tubing. (See Figure 13) To insert
tubing, push tube straight into fitting until it
reaches a positive stop (approximately 3/4).
Figure 13 Quick Connect Fittings
