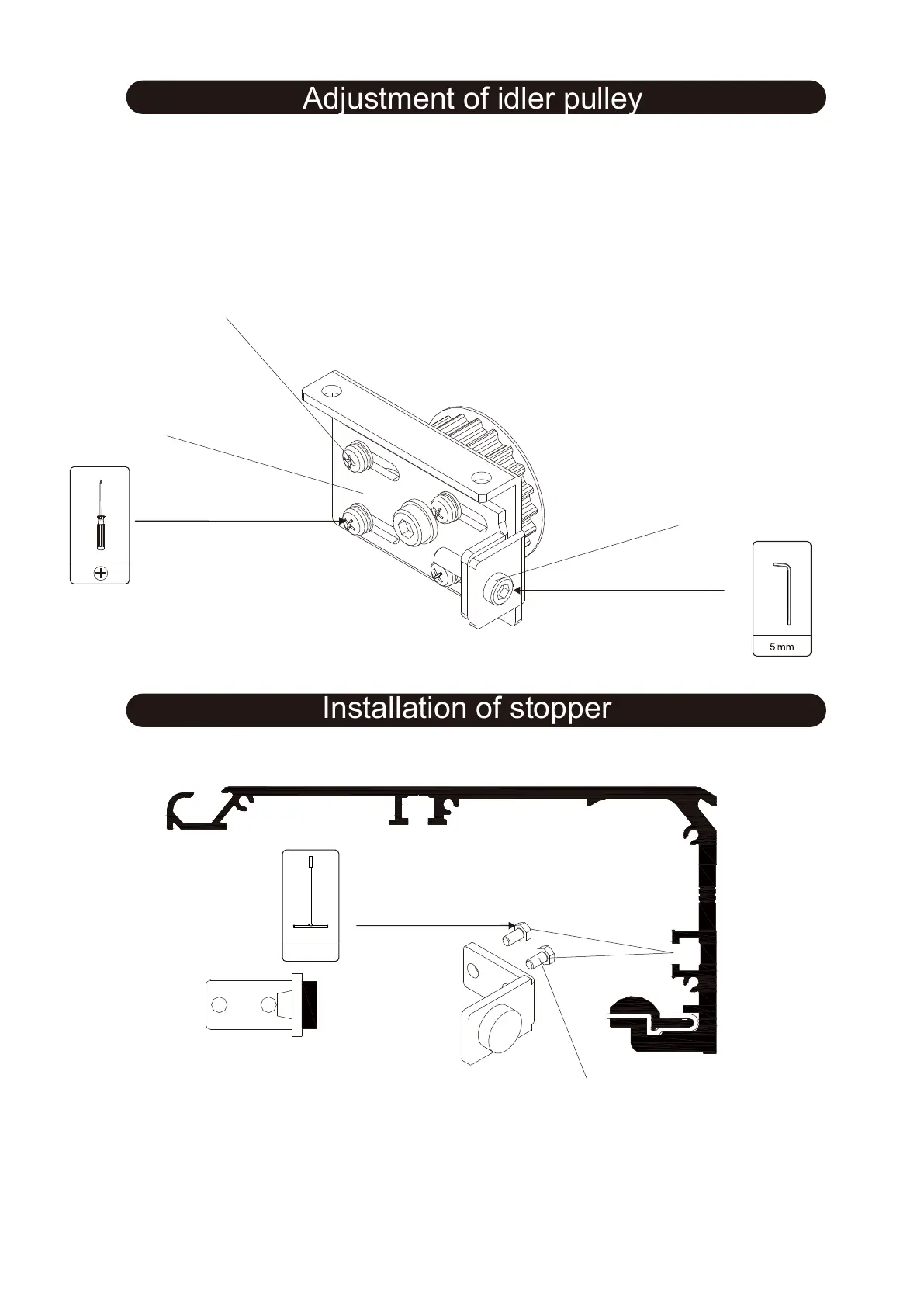

Installation of stopper

Adjustment of idler pulley

1. Loosen the 4(x) fastening bolts, then wind the adjusting screw clockwise

or anti-clockwise

2. Place the belt on pulley and tighten the adjusting bolt to give the correct tension.

3. Tighten the 4(x) fastening bolt to secure .

Adjusting bolt

Adjusting plate

Fastening bolt

10mm

Adjustment of Idler Pulley

Installation of Stops
