Lock and release(Optional)

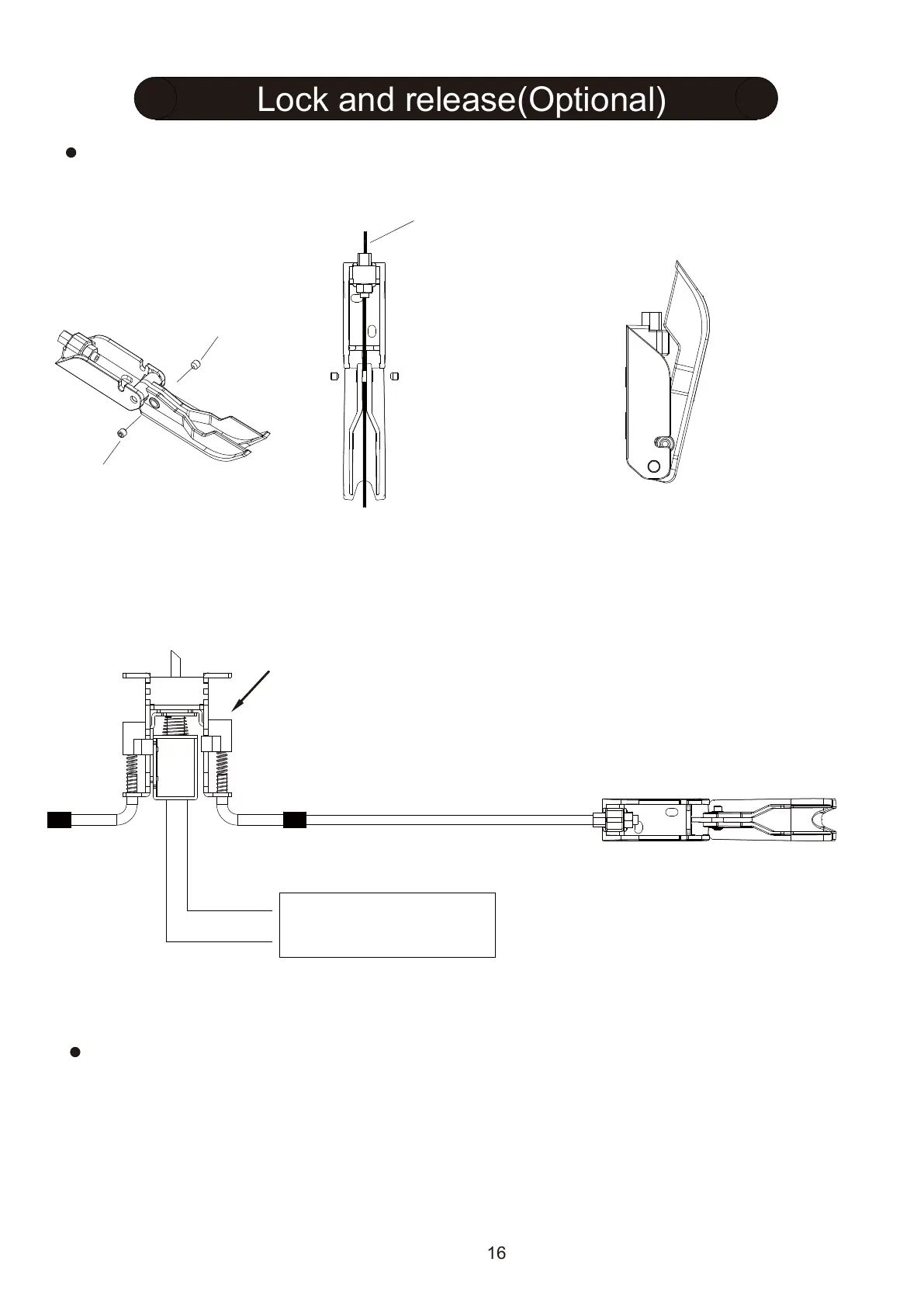

Installaon of interior manual release
M5
M5
Wirerope
Fit the Wirerope into the manual release according to picture Adjust the angle of the manual release according to picture,
Secure
the Wirerope
by
ghten
ing
the M5 screw
Red Black
1. Lock (-)
2.
Lock (+)
Control
Fit the Wirerope from this posion
Working Voltage：12V dc
Red：Positive (+)
Black：Negative (-)
Current：Start Current 0.9A，Working Current 0.3A
Main technical parameters
Lock and release(Optional)
Lock and Release (Optional)
