User‘s manual for CP-511 pH meter v1.10
4. The outside view

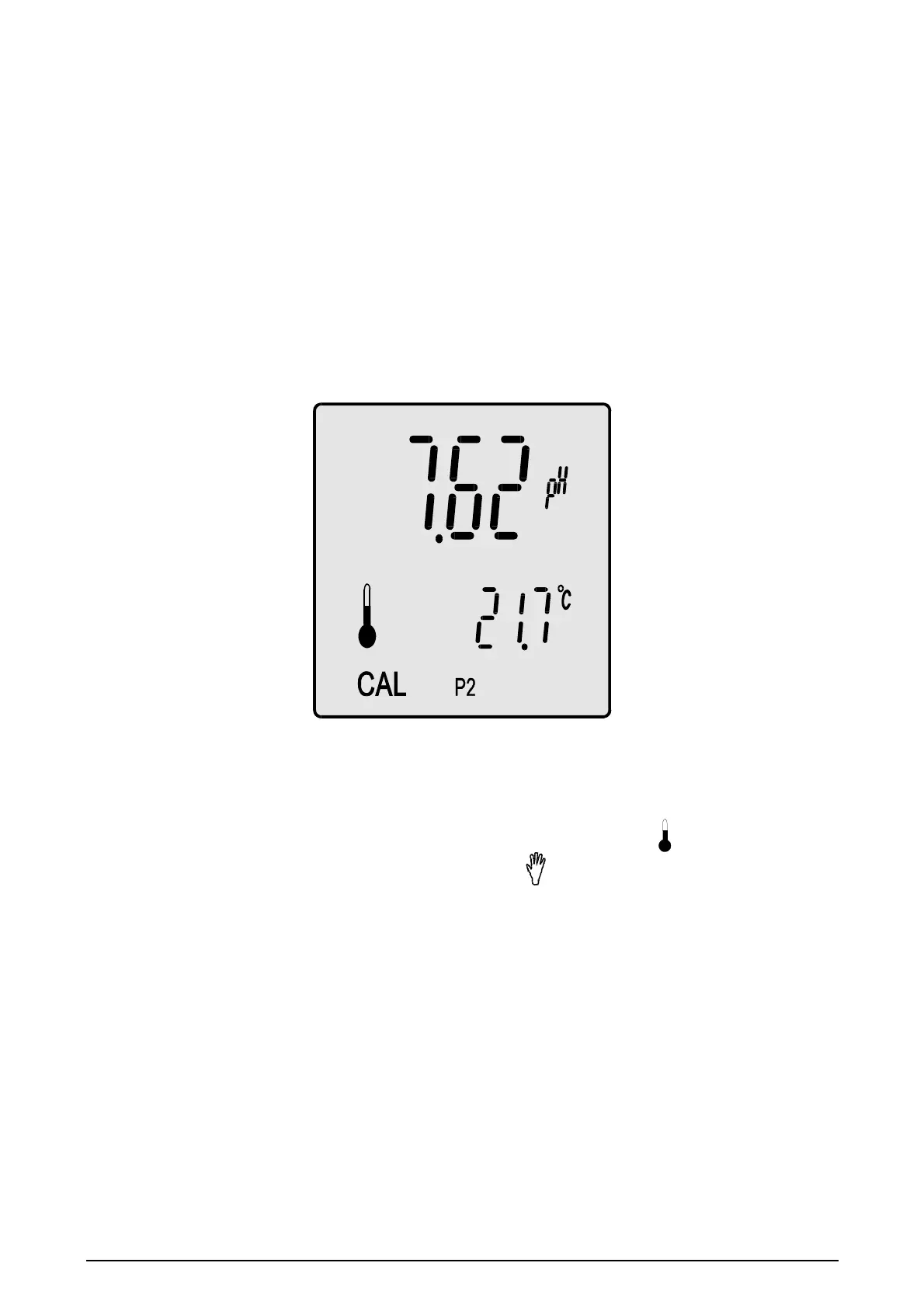

On the front wall of the meter there is an LCD display (Pic. 1) which,
depending on the chosen function, shows:
- the pH readout in pH units;
- the redox potential readout in mV.
The measurement function is chosen by pressing appropriately marked
button and is signalised with lighting diode placed above the button.
Simultaneously with the readout the temperature value in
0
C is displayed.
Symbols of units are displayed next to the readout.
Pic. 1
Next to the temperature reading the symbol is displayed: - the symbol for
automatic temperature compensation or - the symbol for manual
temperature compensation. The CAL symbol in the left on the display
signalises that the meter is in the calibration mode. In the MODE mode it is
possible to check the electrode parameters verified during the last calibration.
