Elmi CM-7S Plus - 4 Design of Centrifuge

6
4 Design of centrifuge

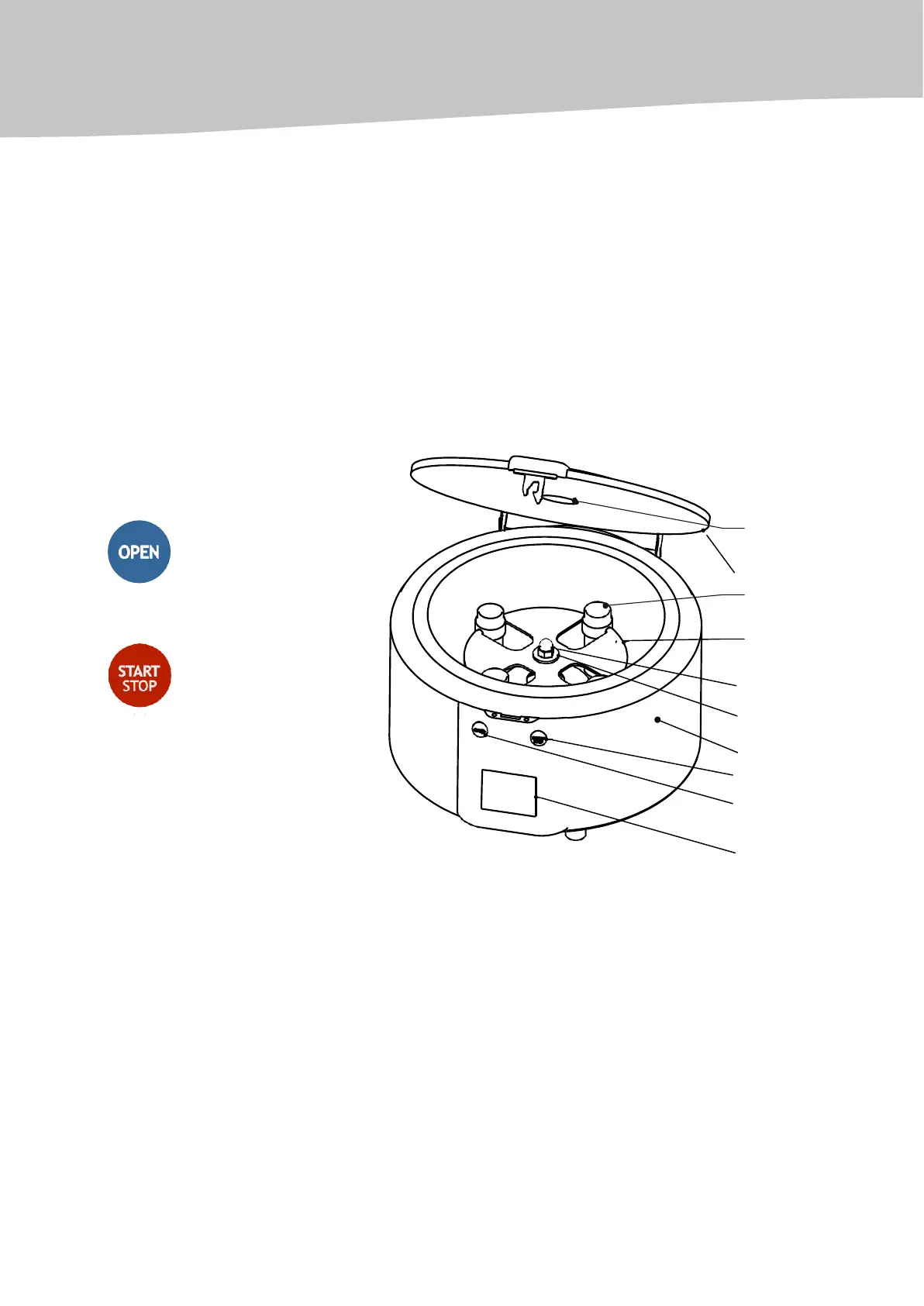

The centrifuge (see Fig. 1) consists of a housing (1) with a cover (2). A motor is placed inside the
housing, on the shaft of which a rotor (5) with adapters (6) is fixed using a nut (3) and a spacer (4).
The control panel is mounted on the front of the centrifuge and includes ''OPEN'' (7) and ''START /
STOP'' (8) buttons and touchscreen display (9) with buttons for setting the operating parameters.
The main switch and a power cord socket are located on the rear of the device.
The centrifuge has a safety opening system usable in case of power supply absence.
At the base of the centrifuge (see Fig. 2) on the side of the control panel is a groove for opening
the centrifuge lid in case of power supply absence.
The centrifuge lid (2) has a transparent window (10) for visual control for rotor stop and speed
control.
Fig.1
Button to unblock the
lid of centrifuge
(during centrifugation
cycle it duplicates
function of
''START/STOP''
button)
10
2
6
Button to start the
centrifugation or to
end the cycle before
the estimated time
5
3
4
1
8
7
9
