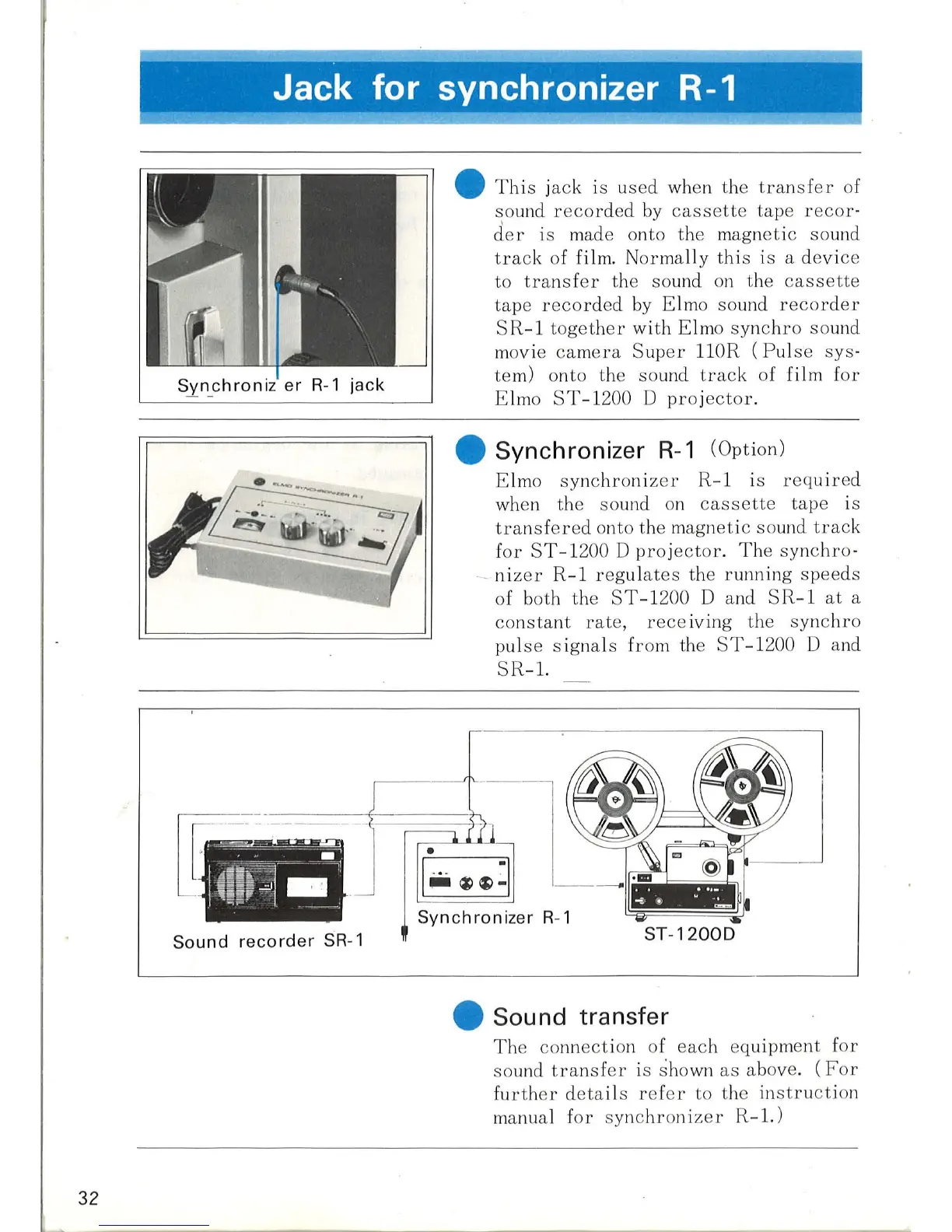

Elmo ST-1200 D - Jack for Synchronizer R-1

32
Jack for synchronizer R-1
S)'n_ chroniz er R-1 jack
~ ----
Sound recorder SR - 1
• This j ac k is used when the transfer of
so und recorded by cassette tap e recor-
der is made onto the magn et ic so und
track of film. Normall y this is a device
to transfer the so und on the cassette
tape recorded by Elmo so und recorder
SR -1 together wit h Elmo sy nch ro so und
movie ca m era Sup er 110R (Pulse sys-
tem) o nt o the so und trac k of fi I m f or
Elmo ST -1 200 D pro j ector.
• Synchronizer R-1 (Option)
E lmo
sy nch ro ni zer R-1 is r eq uir ed
when the sound on cassette tape is
transfered onto the magn et ic so und track
for ST -1 200 D projector. Th e sync h ro-
- ni zer R -1 regu l ates the r unn ing speeds
of both the ST- 1200 D and SR- 1 at a
con sta nt r ate, receiv in g the sync hr o
pul
se s ignals from the ST -1 200 D and
SR- l.
Synchroni ze r
ST-1200D
• Sound transfer
The co nn ectio n of eac h equipment for
so und tran sf er is shown as above. (For
further d eta ils re fer to the in s tru ction
manual for synchron i zer R-l.)
