Elmo ST-1200 - C. TRANSFORMER & MOTOR; 1. TRANSFORMER (Fig. 8)

C. TRANSFORMER & MOTOR

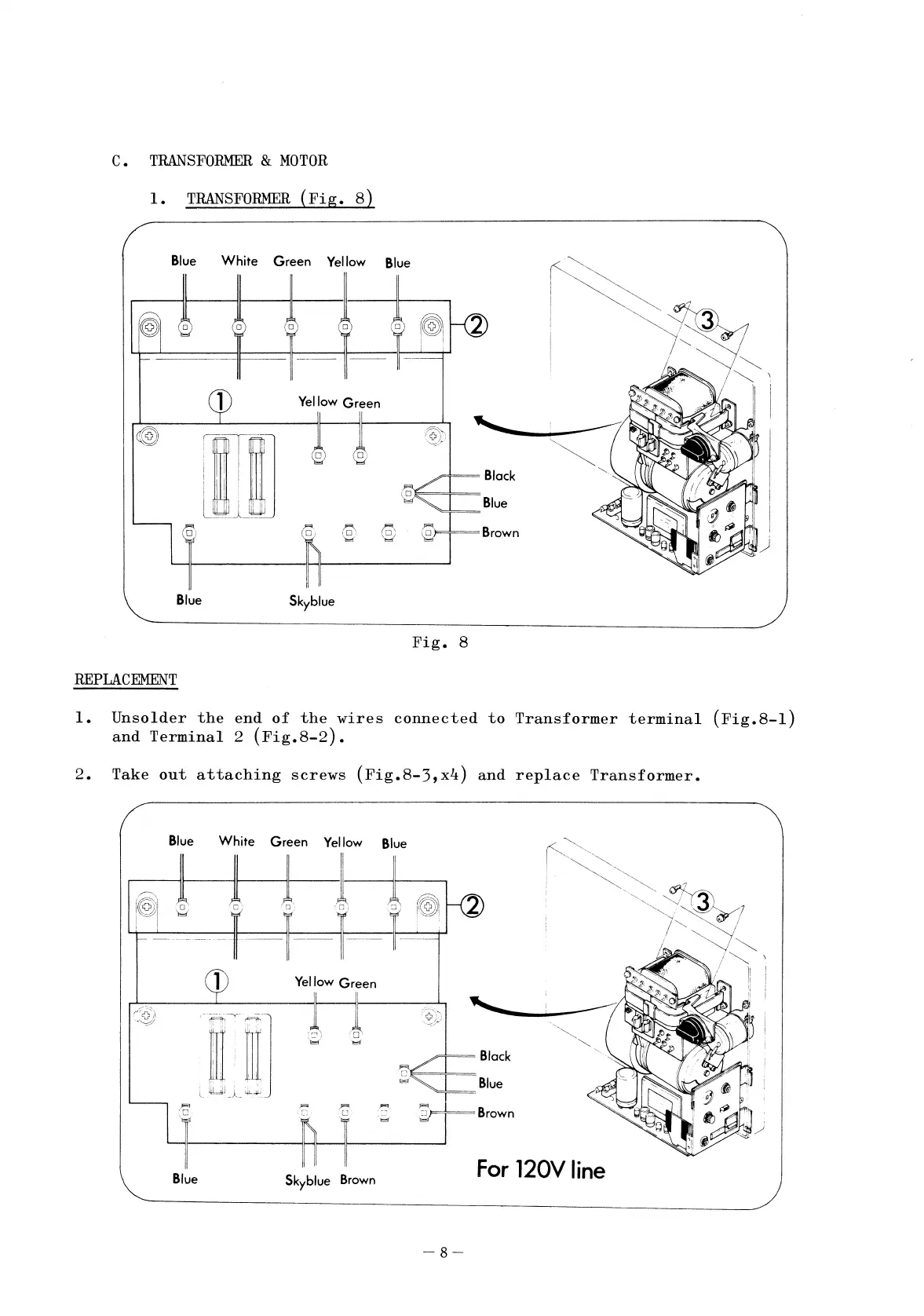

1. TRANSFORMER (Fig. 8)
@ ~ -Brown
Black
Blue
~ 2
i
1 Yellow Green
Blue White Green Yellow Blue
Blue
Skyblue
Fig. 8
REPLACEMENT
1. Unsolder the end of the wires connected to Transformer terminal (Fig.8-1)
and Terminal 2 (Fig.8-2).
2. Take out attaching screws (Fig.8-3,x4) and replace Transformer.
White Green
l~~~-~I~ ~-~~~~I~e
Skyblue Brown
Blue
Blue
-8-
