Elmo ST-1200 - C. TRANSFORMER & MOTOR; Pilot lamp does not light; Motor does not run

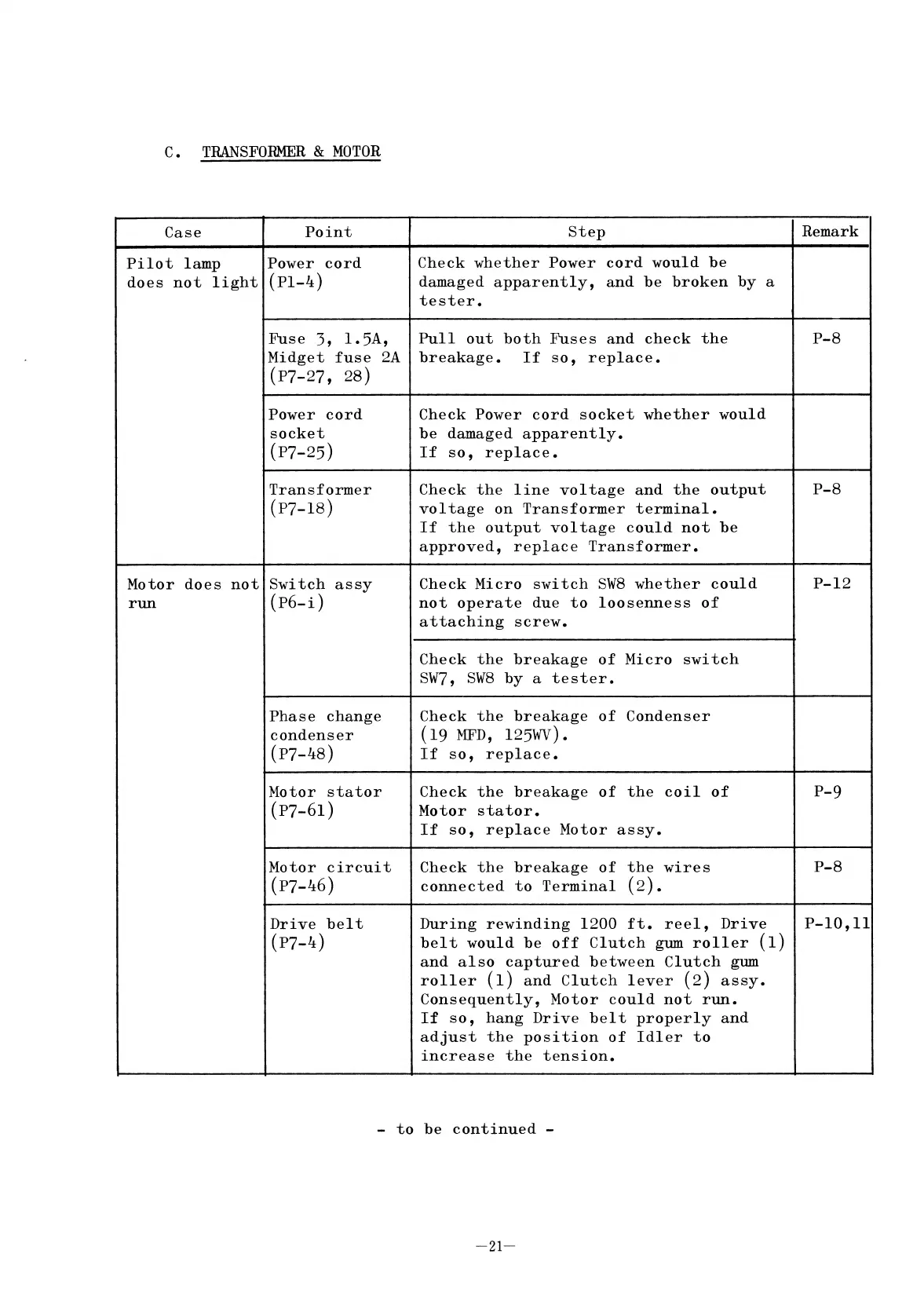

C. TRANSFORMER & MOTOR
Case
Point
Step
Remark
Pilot lamp Power cord
does not light (PI-4)
Fuse 3, 1.5A,
Midget fuse 2A
(P7-27, 28)
Power cord
socket
(P7-25)
Transformer
(P7-IS)
Motor does not Switch assy
run (P6-i)
Phase change
condenser
(P7-4S)
Check whether Power cord would be
damaged
apparently, and be broken by a
tester.
Pullout both Fuses and check the
breakage. If so, replace.
Check Power cord socket whether would
be damaged apparently.
If so, replace.
Check the line voltage and the output
voltage on Transformer terminal.
If the output voltage could not be
approved, replace Transformer.
Check Micro switch SW8 whether could
not operate due to loosenness of
attaching screw.
Check the breakage of Micro switch
SW7, SWS by a tester.
Check the breakage of Condenser
(19 MFD, 125WV).
If so, replace.
P-8
P-8
P-12
Motor stator
(P7-61)
Motor circuit
(P7-46)
Drive belt
(P7-4)
Check the breakage of the coil of P-9
Motor stator.
If so, replace Motor assy.
Check the breakage of the wires P-8
connected to Terminal (2).
During rewinding 1200 ft. reel, Drive P-IO,ll
belt would be off Clutch gum roller (1)
and also captured between Clutch gum
roller (1) and Clutch lever (2) assy.
Consequently, Motor could not run.
If so, hang Drive belt properly and
adjust the position of Idler to
increase the tension.
- to be continued -
-21-
