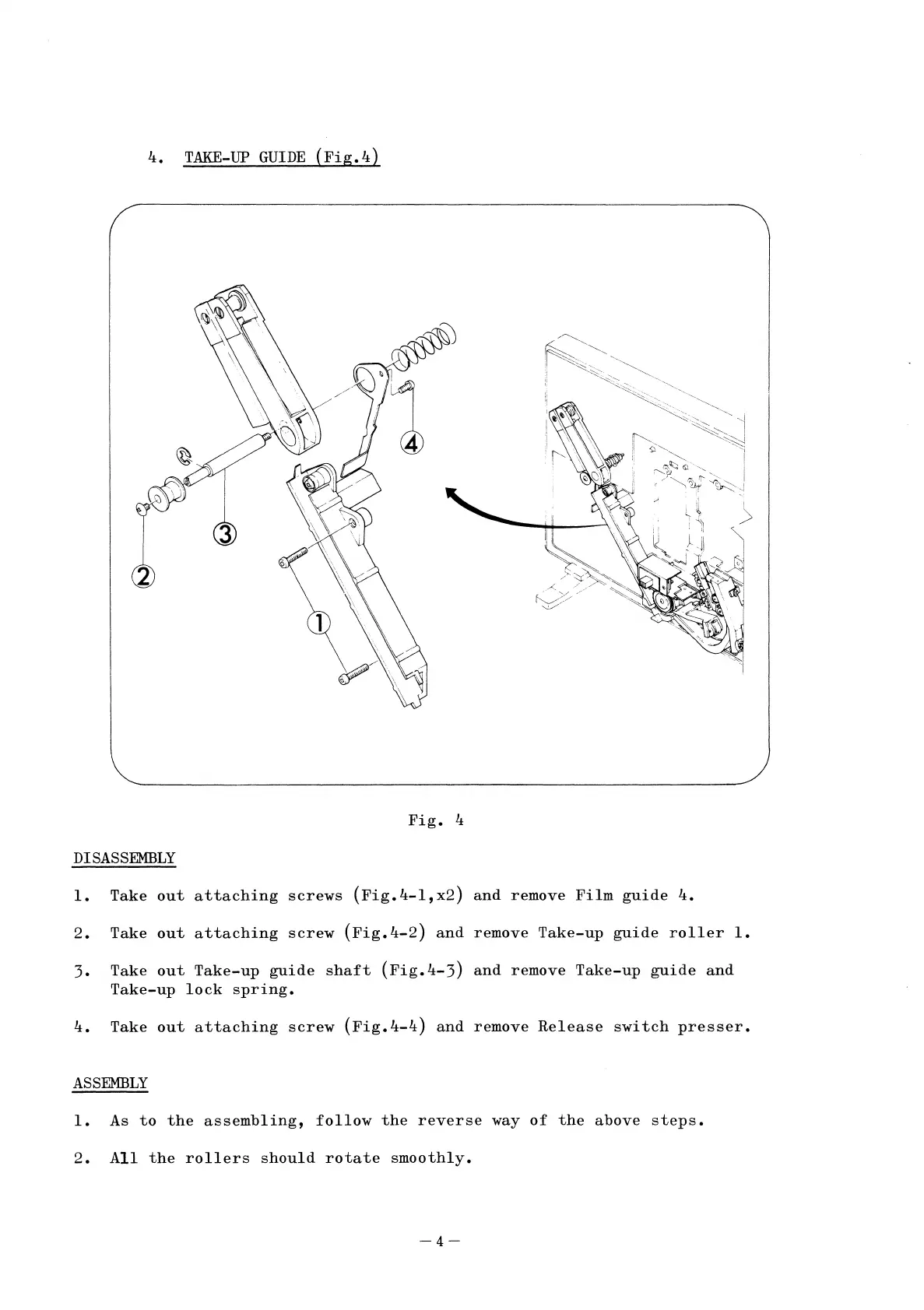

Elmo ST-1200 - 4. TAKE-UP GUIDE (Fig.4)

4. TAKE-UP GUIDE (Fig.4)
Fig. 4
DISASSEMBLY
1.
Take
out attaching
screws
(Fig.4-1,x2)
and remove Film guide 4.
2.
Take
out attaching
screw (Fig.4-2)
and
remove Take-up guide roller 1.
3.
Take out Take-up guide
shaft (Fig.4-3)
and remove Take-up guide and
Take-up lock spring.
4. Take out attaching screw (Fig.4-4) and remove Release switch presser.
ASSEMBLY
1. As to the assembling, follow the reverse way of the above steps.
2. All the rollers should rotate smoothly.
-4-
