Elmo ST-1200 - 2. SECOND SPROCKET (Fig. 14)

2. SECOND SPROCKET (Fig. 14)

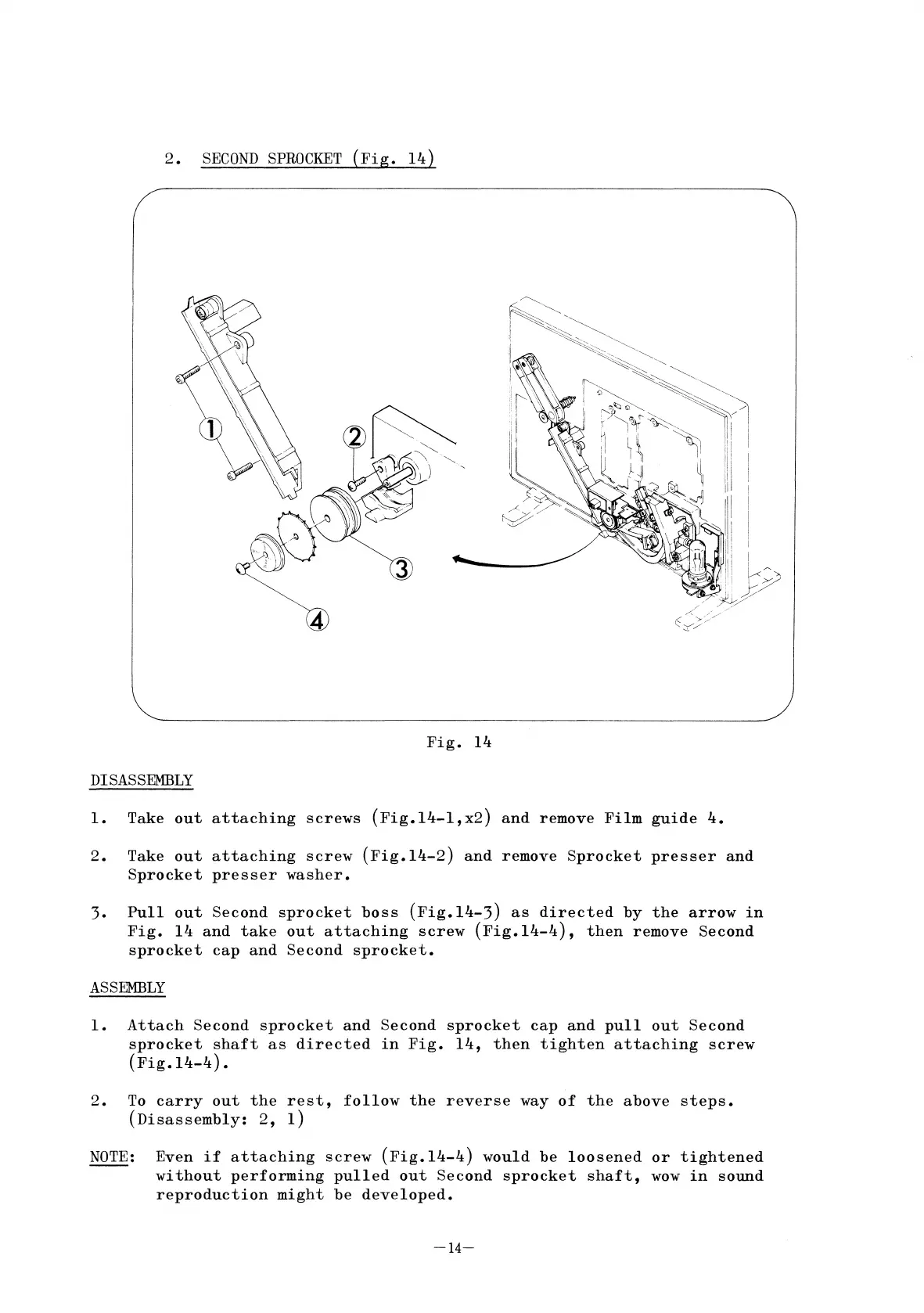

Fig. 14
DISASSEMBLY
1. Take out attaching screws (Fig.14-1,x2) and remove Film guide 4.
2. Take out attaching screw (Fig.14-2) and remove Sprocket presser and
Sprocket presser washer.
3. Pullout Second sprocket boss (Fig.14-3) as directed by the arrow in
Fig. 14 and take out attaching screw (Fig.14-4), then remove Second
sprocket cap and Second sprocket.
ASSEMBLY
1. Attach Second sprocket and Second sprocket cap and pullout Second
sprocket shaft as directed in Fig. 14, then tighten attaching screw
(Fig.14-4).
2. To carry out the rest, follow the reverse way of the above steps.
(Disassembly: 2, 1)
NOTE: Even if attaching screw (Fig.14-4) would be loosened or tightened
without performing pulled out Second sprocket shaft, wow in sound
reproduction might be developed.
-14-
