Elmo ST-1200 - II. TROUBLE SHOOTING; A. FRONT & REAR ARM; Rewind knob not locked during rewinding; Front reel cannot rewind smoothly

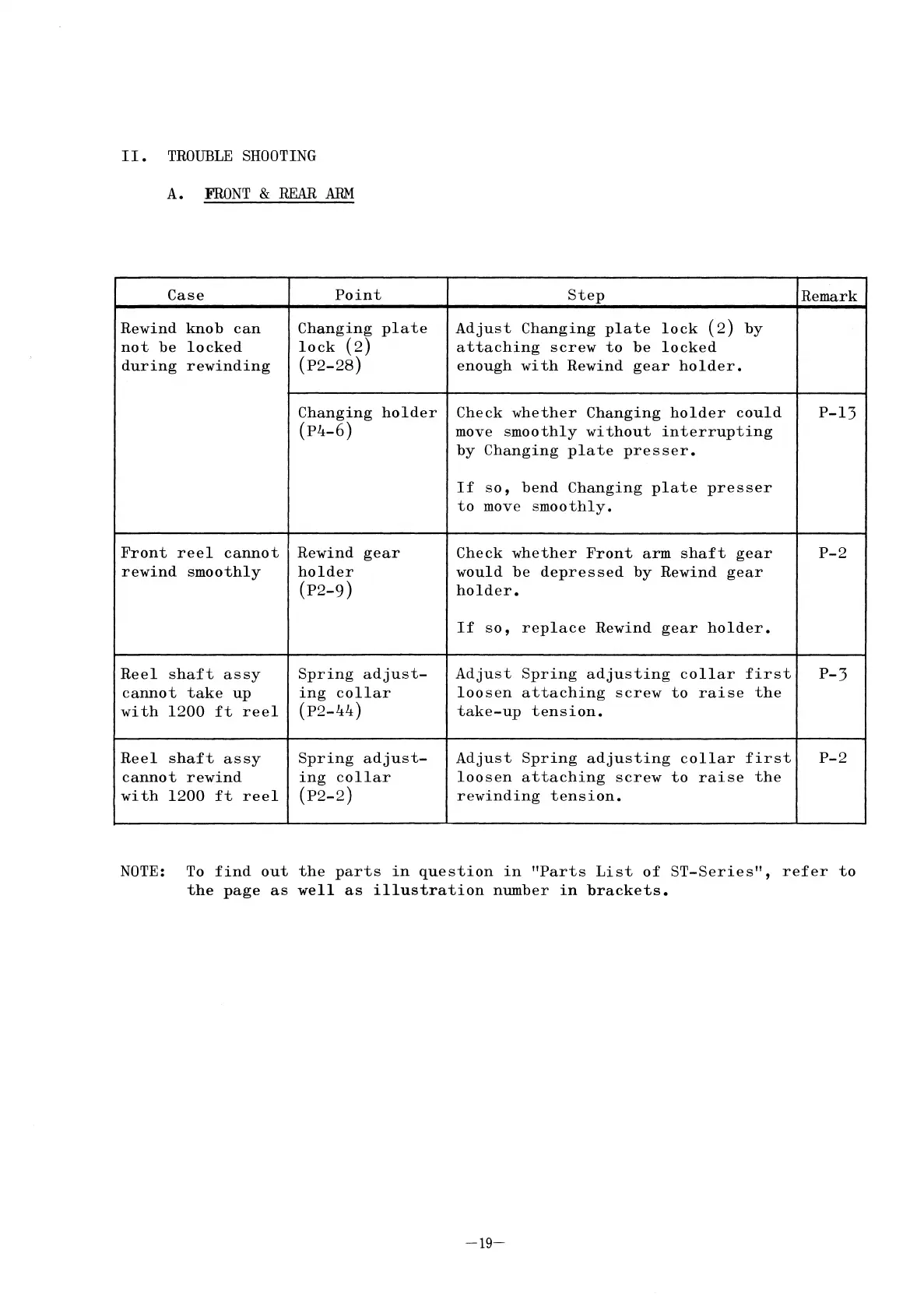

II. TROUBLE SHOOTING
A. FRONT & REAR ARM
Case
Rewind knob can
not be locked
during rewinding
Front reel cannot
rewind smoothly
Reel shaft assy
cannot take up
with 1200 ft reel
Reel shaft assy
cannot rewind
with 1200 ft reel
Point
Changing plate
lock (2)
(P2-28)
Changing holder
(P4-6)
Rewind gear
holder
(P2-9)
Spring adjust-
ing collar
(P2-44)
Spring adjust-
ing collar
(P2-2)
Step
Adjust Changing plate lock (2) by
attaching screw to be locked
enough with Rewind gear holder.
Check whether Changing holder could
move smoothly without interrupting
by Changing plate presser.
If so, bend Changing plate presser
to move smoothly.
Check whether Front arm shaft gear
would be depressed by Rewind gear
holder.
If so, replace Rewind gear holder.
Adjust Spring adjusting collar first
loosen attaching screw to raise the
take-up tension.
Adjust Spring adjusting collar first
loosen attaching screw to raise the
rewinding tension.
Remark
P-13
P-2
P-3
P-2
NOTE: To find out the parts in question in "Parts List of ST-Series", refer to
the page as well as illustration number in brackets.
