Elmo ST-1200 - Auto-threading mechanism cannot be released; Film loop moves to upper side; Lower film loop cannot be performed; Motor switch knob cannot be turned

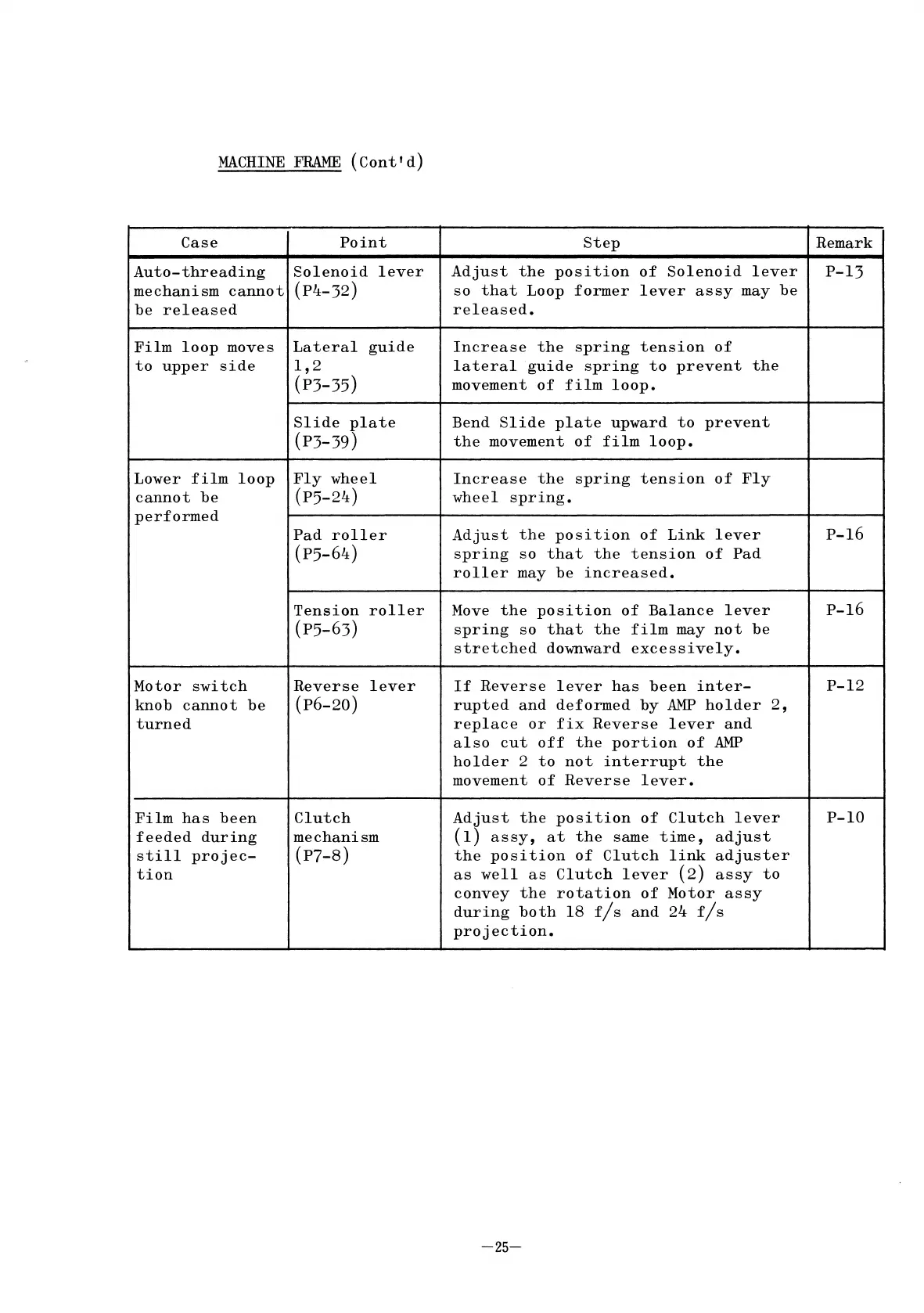

MACHINE FRAME (Conttd)
Case
Auto-threading
mechanism cannot
be released
Film loop moves
to upper side
Lower film loop
cannot be
performed
Motor switch
knob cannot be
turned
Film has been
feeded during
still projec-
tio.n
Point
Solenoid lever
(P4-32)
Lateral guide
1,2
(p3-35)
Slide plate
(P3-39)
Fly wheel
(P5-24)
Pad roller
(p5-64)
Tension roller
(P5-63)
Reverse lever
(P6-20)
Clutch
mechanism
(P7-8)
step
Adjust the position of Solenoid lever
so that Loop former lever assy may be
released.
Increase the spring tension of
lateral guide spring to prevent the
movement of film loop.
Bend Slide plate upward to prevent
the movement of film loop.
Increase the spring tension of Fly
wheel spring.
Adjust the position of Link lever
spring so that the tension of Pad
roller may be increased.
Move the position of Balance lever
spring so that the film may not be
stretched downward excessively.
If Reverse lever has been inter-
rupted and deformed by AMP holder 2,
replace or fix Reverse lever and
also cut off the portion of AMP
holder 2 to not interrupt the
movement of Reverse lever.
Adjust the position of Clutch lever
(1) assy, at the same time, adjust
the position of Clutch link adjuster
as well as Clutch lever (2) assy to
convey the rotation of Motor assy
during both 18 f/s and 24 f/s
projection.
-25-
Remark
P-13
p-16
p-16
P-12
P-lO
