ELNA Cl.11 User Manual

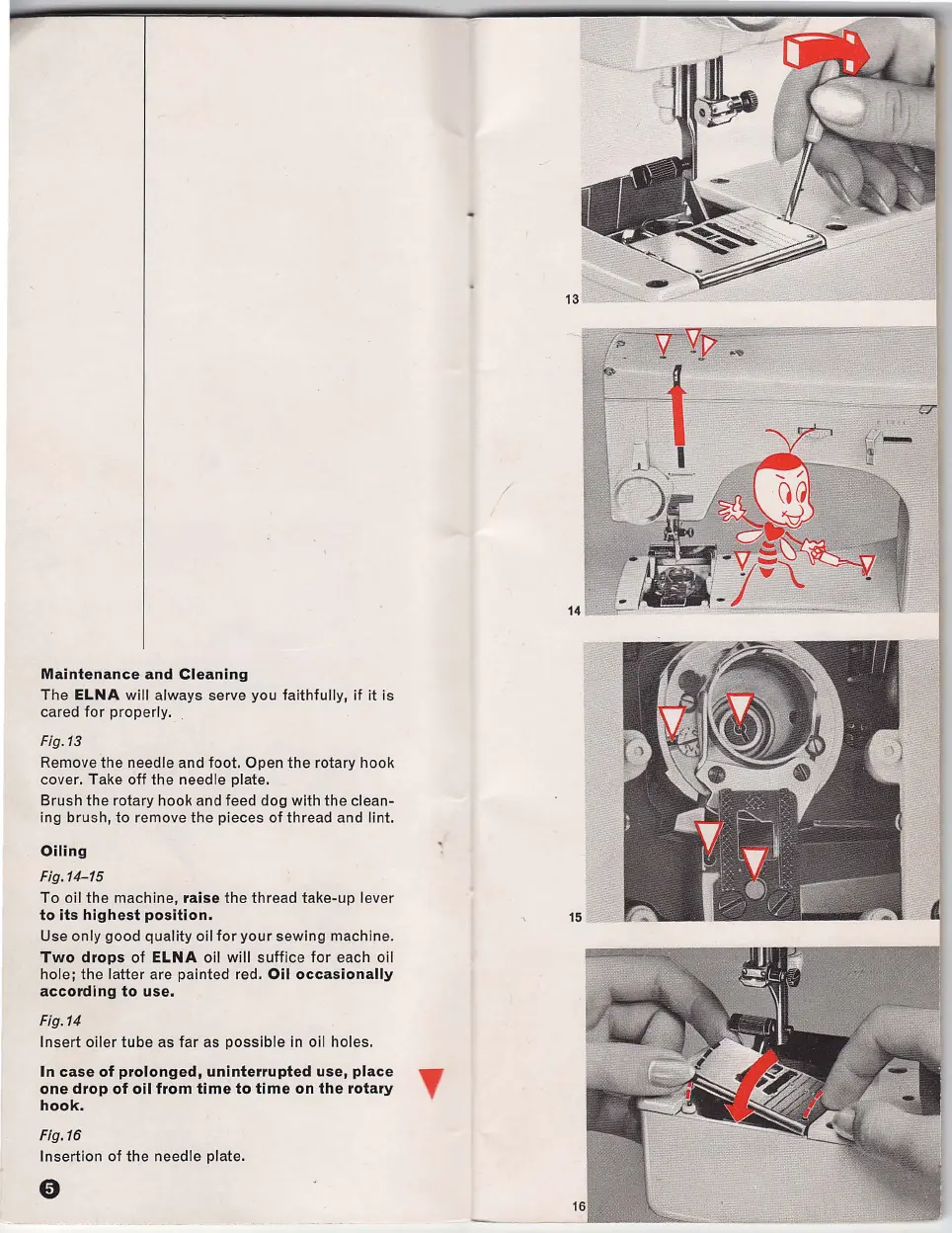

Maintenance and Cleaning
The ELNA will always serve you faithfully, if it is
cared
for properly.
Fig.13
Remove the needle and foot. Open the rotary hook
cover. Take
off the needle plate.
Brush
the rotary hook and feed dog with the clean-
ing brush,
to remove the pieces of thread and lint.
Oiling
Fig.14-15
To oil the machine, raise the thread take-up lever
to its highest position.
Use only good quality oil for your sewing machine.
Two drops of ELNA oil will suffice for each oil
hole; the latter are painted red. Oil occasionally
according to use.
Fig.14
Insert oiler tube as far as possible in oil holes.
In case of prolonged, uninterrupted use, place W
one drop of oil from time to time on the rotary T
hook.
Fig.16
Insertion of the needle plate.
13
/
