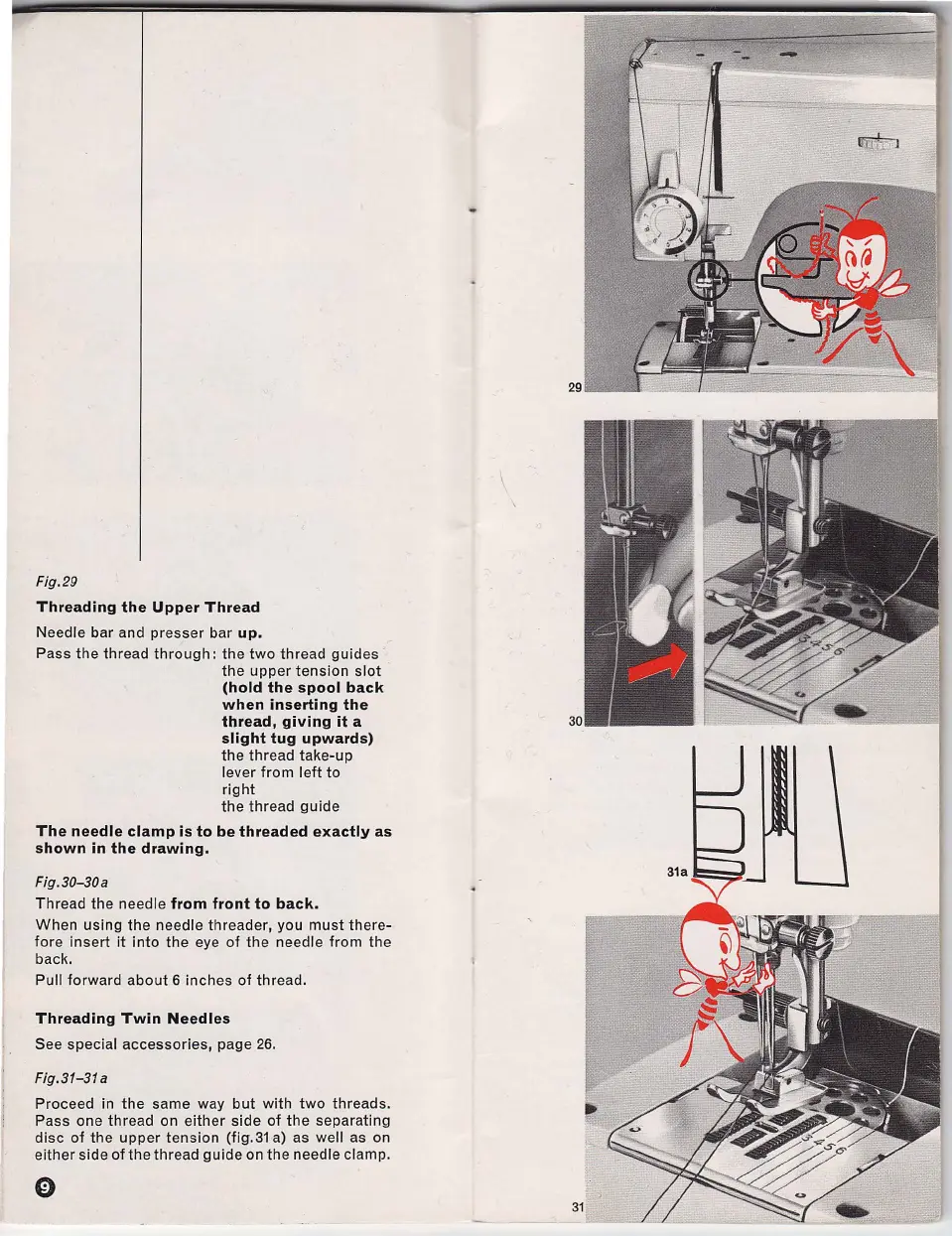

Fig.29
Threading the Upper Thread
Needle bar and presser bar up.
Pass the thread through : the two thre ad guides
the upper tension slot -
(hold the spool back
when inserting the
thread, giving it a
slight tug upwards)
the thread take-up
lever from left to
right
the th read guide
The needle clamp is to be threaded exactly as
shown in the drawing.
Fig.30-30a
Thread the needle from front to back.
When using the needle threader, you must there-
fore insert it into the eye of the needle from the
back.
Pull forward about 6 inches of thread.
Threading Twin Needles
See special accessories, page 26 .
Fig.31-31a
Proceed in the same way but with two threads.
Pass one thread on
either side of the separating
disc of the upper tension (fig.31 a) as well as on
either side of the thread guide on the needle clamp.
31
